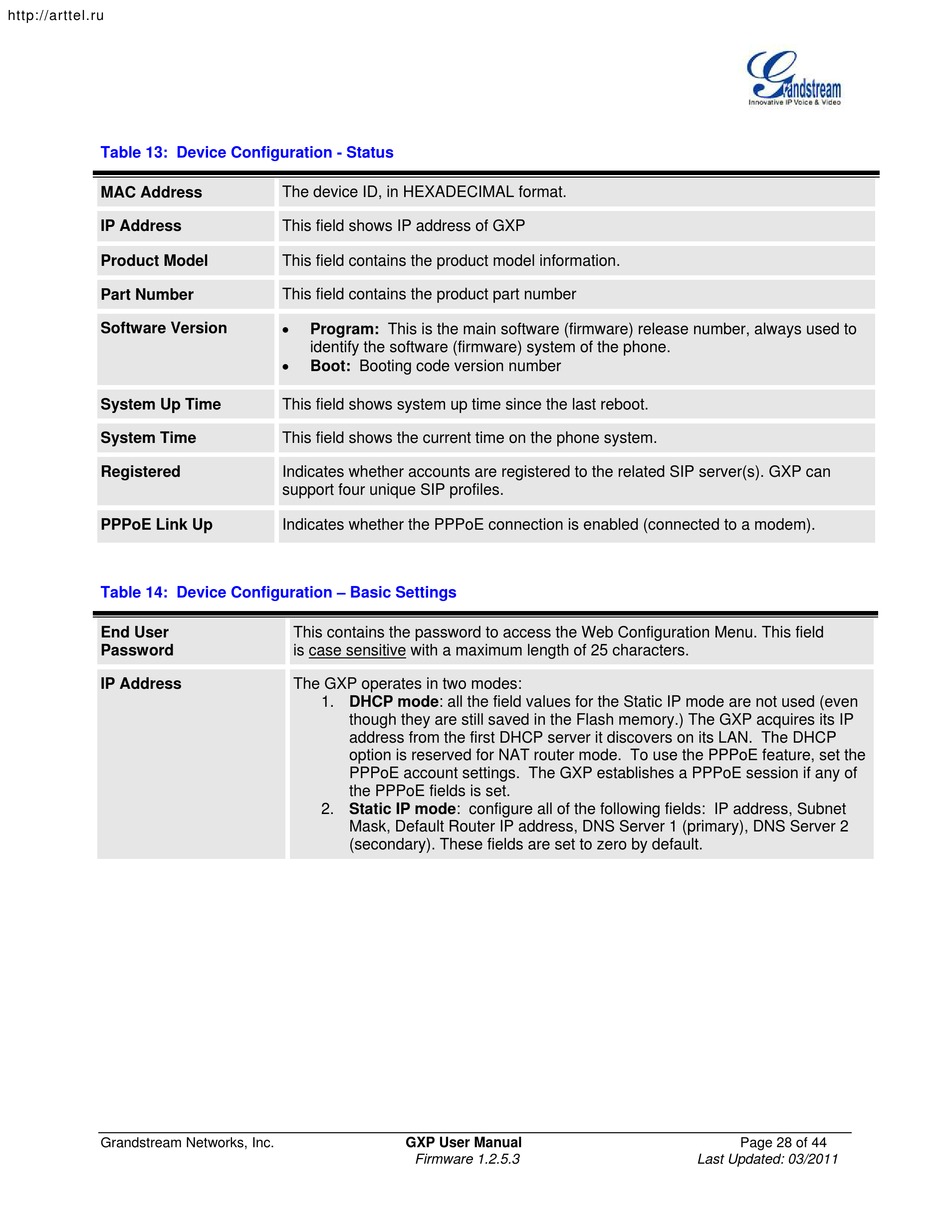

Table 13: Device Configuration - Status

MAC Address
IP Address
Product Model
Part Number
Software Version
System Up Time
System Time
Registered
PPPoE Link Up
Table 14: Device Configuration – Basic Settings
End User
Password
IP Address
Grandstream Networks, Inc.
The device ID, in HEXADECIMAL format.
This field shows IP address of GXP
This field contains the product model information.
This field contains the product part number
Program: This is the main software (firmware) release number, always used to
x
identify the software (firmware) system of the phone.
Boot: Booting code version number
x
This field shows system up time since the last reboot.
This field shows the current time on the phone system.
Indicates whether accounts are registered to the related SIP server(s). GXP can
support four unique SIP profiles.
Indicates whether the PPPoE connection is enabled (connected to a modem).
This contains the password to access the Web Configuration Menu. This field
is case sensitive with a maximum length of 25 characters.
The GXP operates in two modes:
1. DHCP mode: all the field values for the Static IP mode are not used (even
though they are still saved in the Flash memory.) The GXP acquires its IP
address from the first DHCP server it discovers on its LAN. The DHCP
option is reserved for NAT router mode. To use the PPPoE feature, set the
PPPoE account settings. The GXP establishes a PPPoE session if any of
the PPPoE fields is set.
2. Static IP mode: configure all of the following fields: IP address, Subnet
Mask, Default Router IP address, DNS Server 1 (primary), DNS Server 2
(secondary). These fields are set to zero by default.
