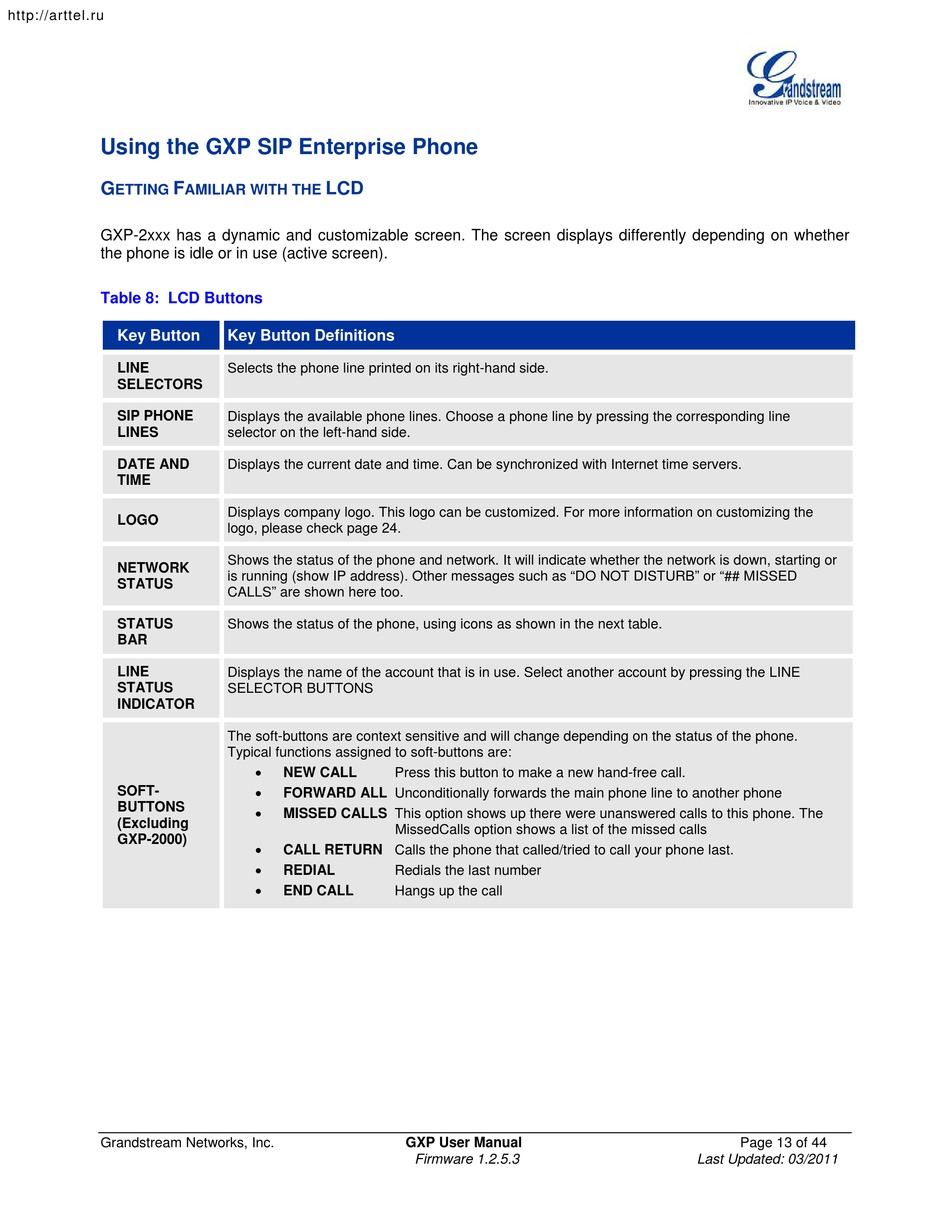

Using the GXP SIP Enterprise Phone

G F
ETTING AMILIAR WITH THE
GXP-2xxx has a dynamic and customizable screen. The screen displays differently depending on whether
the phone is idle or in use (active screen).

Table 8: LCD Buttons

Key Button
LINE
SELECTORS
SIP PHONE
LINES
DATE AND
TIME
LOGO
NETWORK
STATUS
STATUS
BAR
LINE
STATUS
INDICATOR
SOFT-
BUTTONS
(Excluding
GXP-2000)
Grandstream Networks, Inc.
LCD
Key Button Definitions
Selects the phone line printed on its right-hand side.
Displays the available phone lines. Choose a phone line by pressing the corresponding line
selector on the left-hand side.
Displays the current date and time. Can be synchronized with Internet time servers.
Displays company logo. This logo can be customized. For more information on customizing the
logo, please check page 24.
Shows the status of the phone and network. It will indicate whether the network is down, starting or
is running (show IP address). Other messages such as "DO NOT DISTURB" or "## MISSED
CALLS" are shown here too.
Shows the status of the phone, using icons as shown in the next table.
Displays the name of the account that is in use. Select another account by pressing the LINE
SELECTOR BUTTONS
The soft-buttons are context sensitive and will change depending on the status of the phone.
Typical functions assigned to soft-buttons are:
NEW CALL Press this button to make a new hand-free call.
x
FORWARD ALL Unconditionally forwards the main phone line to another phone
x
MISSED CALLS This option shows up there were unanswered calls to this phone. The
x
MissedCalls option shows a list of the missed calls
CALL RETURN Calls the phone that called/tried to call your phone last.
x
REDIAL Redials the last number
x
END CALL Hangs up the call
x
GXP User Manual
Firmware 1.2.5.3
Page 13 of 44
Last Updated: 03/2011
