GOT817-834 User's Manual

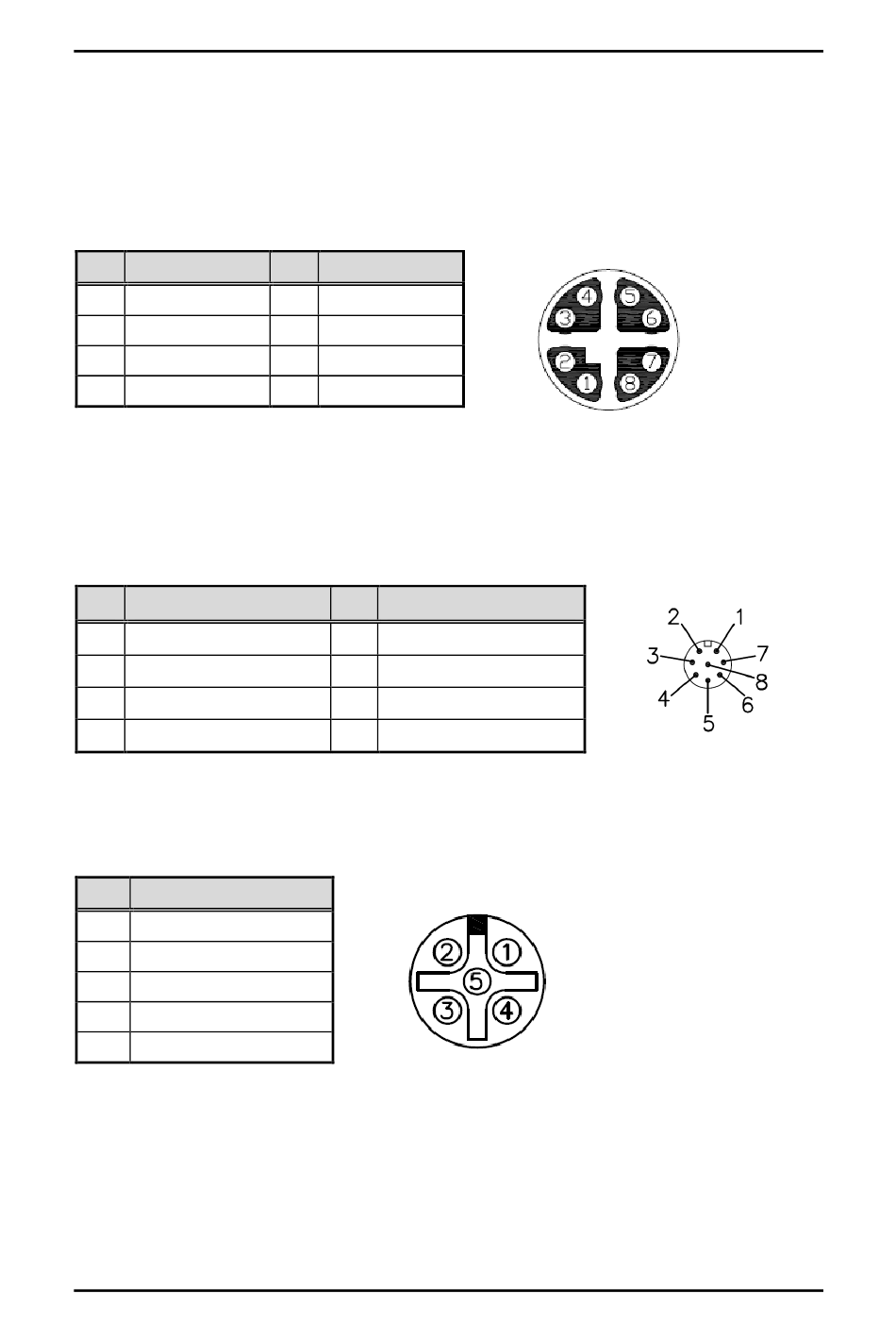

2.1.2 Ethernet

The GOT817-834 is equipped with a high performance Plug and Play Ethernet interface, full
compliant with IEEE 802.3 standard, and can be connected with a M12 X-CODE LAN
connector.
Please refer to detailed pin assignment list below:
Pin Signal
L1 MDI0P
L2 MDI0N
L3 MDI1P
L4 MDI1N

2.1.3 USB Port

The USB is a Universal Serial Bus (compliant with USB 2.0 (480Mbps)) connector on the rear
I/O. It is commonly used for installing USB peripherals such as keyboard, mouse, scanner, etc.
Pin Signal
1 USB VCC (+5V level)
2 USB #0_D-
3 USB #0_D+
4 GND

2.1.4 DC Power Jack w/ M12 connector

Pin Signal
1 +12~36V
2 +12~36v
3 GND
4 GND
5 Earth Gound
10
Pin Signal
L5 MDI2P
L6 MDI2N
L7 MDI3P
L8 MDI3N
Pin Signal
5 USB VCC (+5V level)
6 USB #1_D-
7 USB #1_D+
8 GND
System Configurations
