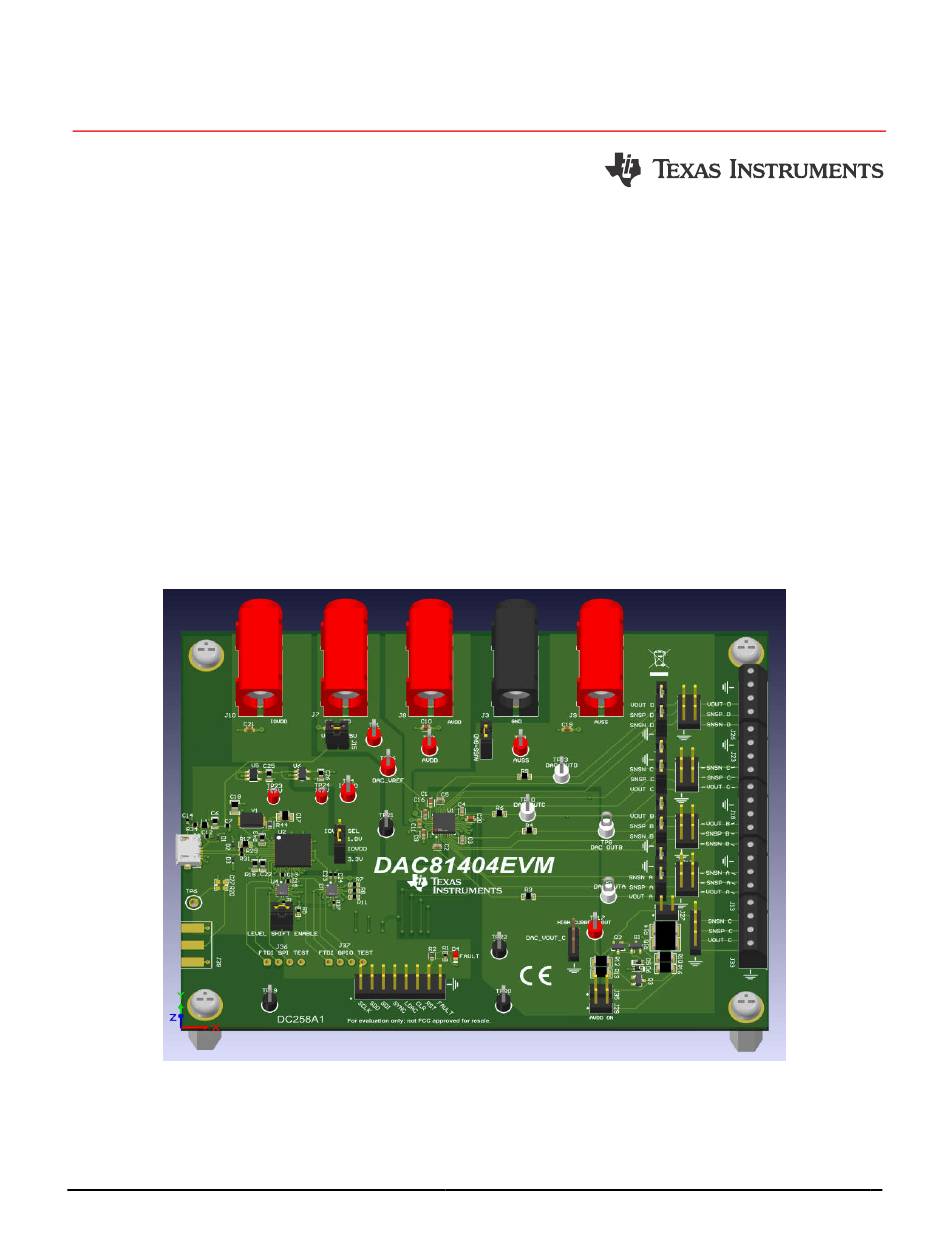

EVM User's Guide: DAC81404EVM
DAC81404 Evaluation Module
Description
The 16-bit, 4-channel DAC81404 and 12-bit, 4-
channel DAC61404 are a pin-compatible family of
quad-channel, buffered, high-voltage-output digital-to-
analog converters (DACs) with an integrated 2.5V
internal reference. These devices are specified
monotonic and provide exceptional linearity of less
than 1LSB.
Get Started
1. Order the EVM from the product folder
(DAC81404EVM)
2. Configure EVM jumpers
3. Install DAC814xxEVM GUI from ti.com
(DAC81404EVM tool
4. Connect USB and external power supplies
5. Launch DAC814xxEVM GUI
SLAU912A – JANUARY 2024 – REVISED OCTOBER 2024
Submit Document Feedback
folder)
Copyright © 2024 Texas Instruments Incorporated
Features
•
Configurable circuit to evaluate DAC
•
Onboard VDD and IOVDD (1.8V or 3.3V) support
•
Trigger output is available for synchronous
measurement
•
FT4232 used to easily write to DAC using
DAC814xxEVM GUI
•
External SPI connections available
Applications
•
Semiconductor test
•
Lab and field instrumentation
•
Analog output module
•
Data acquisition
•
LCD test
•
Servo drive control module
Description
DAC81404 Evaluation Module
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments DAC81404
Summary of Contents for Texas Instruments DAC81404
- Page 1 Description EVM User's Guide: DAC81404EVM DAC81404 Evaluation Module Description Features The 16-bit, 4-channel DAC81404 and 12-bit, 4- • Configurable circuit to evaluate DAC channel DAC61404 are a pin-compatible family of • Onboard VDD and IOVDD (1.8V or 3.3V) support quad-channel, buffered, high-voltage-output digital-to- •...
-
Page 2: Kit Contents
Figure 1-1. DAC81404EVM Functional Block Diagram The USB provides the 5V default VDD supply to the DAC81404. Voltage regulators generate 3.3V and 1.8V from USB 5V supply. These 3.3V and 1.8V supplies are used to power the FTDI controller, level shifter, and IOVDD of DAC81404. -
Page 3: Jumper Information
Onboard supply for IOVDD is available ( LDO generated 1.8V or 3.3V through J21). DVDD and IOVDD power supply of DAC81404 can be provided externally through J7 and J10 respectively. AVDD and AVSS power supply of DAC81404 need to connected externally through J8 and J9 respectively. AVSS can be connected to GND through J22. -
Page 4: Test Points
– DACA_DATA: write 0x7FFF to get 2.5V on DAC_OUT (TP5) The default voltage range for the DAC81404 is 0V to 5V. Configure the voltage range by modifying the DACx Voltage Range control on DAC814xxEVM GUI High Level page, or by writing to the "DACx_RANGE" register in... - Page 5 Short 1-2 – Connect high current output of the system to the on-board resistive load. Open – The high current output stage is disconnected from the on-board resistive load (default). SLAU912A – JANUARY 2024 – REVISED OCTOBER 2024 DAC81404 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 6 If left unchanged, then Figure 3-1 shows that the software location defaults to C:\Program Files (x86)\Texas Instruments\DAC814xxEVM. Figure 3-1. Software Installation Path DAC81404 Evaluation Module SLAU912A – JANUARY 2024 – REVISED OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
-
Page 7: Software Development
To launch the software, locate the DAC814xxEVM icon in the Start Menu, and select the DAC814xxEVM icon as shown in Figure 3-3. Figure 3-3. DAC814xxEVM Software Installation in Start Menu SLAU912A – JANUARY 2024 – REVISED OCTOBER 2024 DAC81404 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... - Page 8 Figure 3-5. Figure 3-5. DAC81404EVM High Level Page The DAC81404 Registers page allows the user to access low-level communication directly with the DAC81404 registers as shown in Figure 3-6. Selecting a register on the Register Map list shows a description of the values in that register, as well as information on the register address, default value, size, and current value.
- Page 9 Open Configuration as shown in Figure 3-7. Figure 3-7. DAC81404EVM Save/Open Configuration SLAU912A – JANUARY 2024 – REVISED OCTOBER 2024 DAC81404 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 10 Hardware Design Files www.ti.com 4 Hardware Design Files 4.1 Schematics DAC81404 Evaluation Module SLAU912A – JANUARY 2024 – REVISED OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
-
Page 11: Pcb Layouts
Hardware Design Files 4.2 PCB Layouts Figure 4-1. DAC81404EVM (Top View) Figure 4-2. DAC81404EVM (Bottom View) SLAU912A – JANUARY 2024 – REVISED OCTOBER 2024 DAC81404 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated... - Page 12 Terminal Block, 3.5mm Pitch, 4x1, TH 14x8.2x6.5mm ED555/4DS On-Shore Technology Header, 2.54mm, 2x1, Gold, TH Header, 2.54mm, 2x1, TH 61300211121 Wurth Elektronik DAC81404 Evaluation Module SLAU912A – JANUARY 2024 – REVISED OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 13 SH-J1, SH-J4, SH-J5, SH- J6, SH-J8, SH-J9, SH- Shunt, 2.54mm, Gold, Black Shunt, 2.54mm, Black 60900213421 Wurth Elektronik J10, SH-J11 SLAU912A – JANUARY 2024 – REVISED OCTOBER 2024 DAC81404 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 14 Red Multipurpose Test Test Point, Multipurpose, Red, TH 5010 Keystone Electronics point Crystal, 12MHz, 30ppm, 18pF, SMD 11.4x4.7mm ABLS2-12.000MHZ-D4Y-T Abracon Corporation DAC81404 Evaluation Module SLAU912A – JANUARY 2024 – REVISED OCTOBER 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
-
Page 15: Additional Information
Newer revisions are available from the TI web site at www.ti.com, or call the Texas Instruments Literature Response Center at (800) 477-8924 or the Product Information Center at (972) 644-5580. When ordering, identify the document by both title and literature number. - Page 16 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 17 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 18 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 19 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 20 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
-
Page 21: Important Notice
TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
