Event Lighting PIXBAR12x3 User Manual

Led pixel bar
Hide thumbs Also See for PIXBAR12x3:

Advertisement

Table of Contents

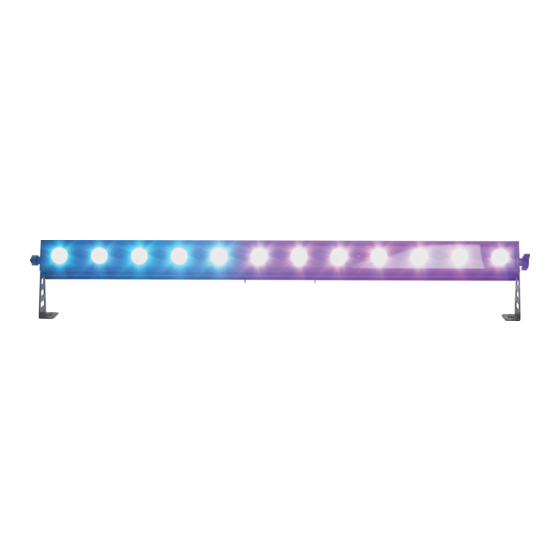

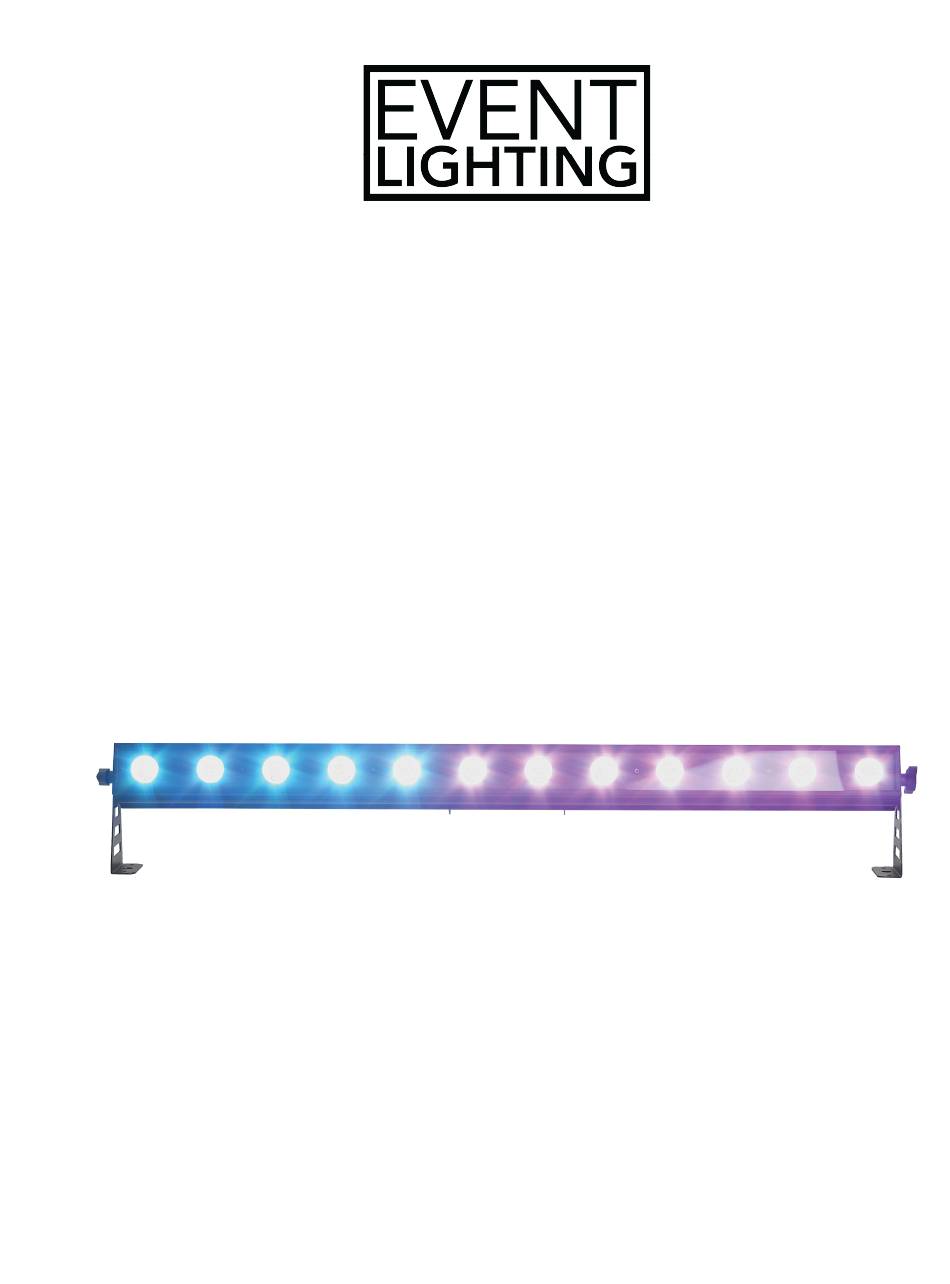

LED Pixel Bar
PIXBAR12x3
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
V3.2
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIXBAR12x3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Event Lighting PIXBAR12x3

Summary of Contents for Event Lighting PIXBAR12x3

  • Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.

  • Page 2: Table Of Contents

    www.event-lighting.com.au CONTENTS Safety Instructions Product Installation Diagrams Control Board Operation Special Chaser Mode DMX Values Technical Specifications Warranty...

  • Page 3: Safety Instructions

    www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •...
  • Page 4 www.event-lighting.com.au Lux Chart Dimensions...

  • Page 5: Control Board Operation

    www.event-lighting.com.au CONTROL BOARD OPERATION Display Options / Values Function 01.DMX Address <001> - <512> Set DMX address 02.DMX Channel <03> <05> <06> <07> <09> Select DMX channel mode <12> <18> <36> 03.Sound Mode Sen:<000> - Sen:<100> Select sound active mode and the sensitivity level from Sen:<000>...
  • Page 6 www.event-lighting.com.au Automatic Mode PR 01 3 colors switching PR 02 7 colors switching PR 03 7 colors fading PR 04 Auto chasing 1 PR 05 Auto chasing 2 PR 06 Auto chasing 3 PR 07 Auto chasing 4 PR 08 Auto chasing 5 PR 09 Auto chasing 6...
  • Page 7 www.event-lighting.com.au DMX CHART Channel Function Ch12 Ch18 Ch36 Red 0%-100% Green 0%-100% Blue 0%-100% Master Dimmer 0%-100% for CH1, 2, 3 & No function Strobe (slow to fast) No function 3 colours switching 7 colours switching 7 colours fading Auto chasing 1 Auto chasing 2 Auto chasing 3 Auto chasing 4...
  • Page 8 www.event-lighting.com.au LED1-LED3 Blue 0%-100% LED4-LED6 Red 0%-100% LED4-LED6 Green 0%-100% LED4-LED6 Blue 0%-100% LED7-LED9 Red 0%-100% LED7-LED9 Green 0%-100% LED7-LED9 Blue 0%-100% LED10-LED12 Red 0%-100% LED10-LED12 Green 0%-100% LED10-LED12 Blue 0%-100% LED1-LED2 Red 0%-100% LED1-LED2 Green 0%-100% LED1-LED2 Blue 0%-100% LED3-LED4 Red 0%-100% LED3-LED4 Green 0%-100% LED3-LED4 Blue 0%-100%...
  • Page 9 www.event-lighting.com.au LED5 Blue 0%-100% LED6 Red 0%-100% LED6 Green 0%-100% LED6 Blue 0%-100% LED7 Red 0%-100% LED7 Green 0%-100% LED7 Blue 0%-100% LED8 Red 0%-100% LE82 Green 0%-100% LED8 Blue 0%-100% LED9 Red 0%-100% LED9 Green 0%-100% LED9 Blue 0%-100% LED10 Red 0%-100% LED10 Green 0%-100% LED10 Blue 0%-100%...

  • Page 10: Technical Specifications

    -Software Upgrade via DMX: Yes Housing -Housing Materials: Aluminium Housing -Housing finish: Matte Black -Cooling: Fanless Cooling -Dimension: 1050 x 165 x 80 mm -Net Weight: 4.5 kg WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au...
