DOW NROD INSTALL ATI ON
• Choose the suspension bar that best suits your situation.
• Remove the bar bolt, removing the pin, and pass the canopy (roof trim) and the engine can-
opy through the suspension bar. Next, route the fan motor cables through the inside of the
suspension bar. Tighten the suspension bar to the engine and insert the bolt and pin.
Standard
mounting
style

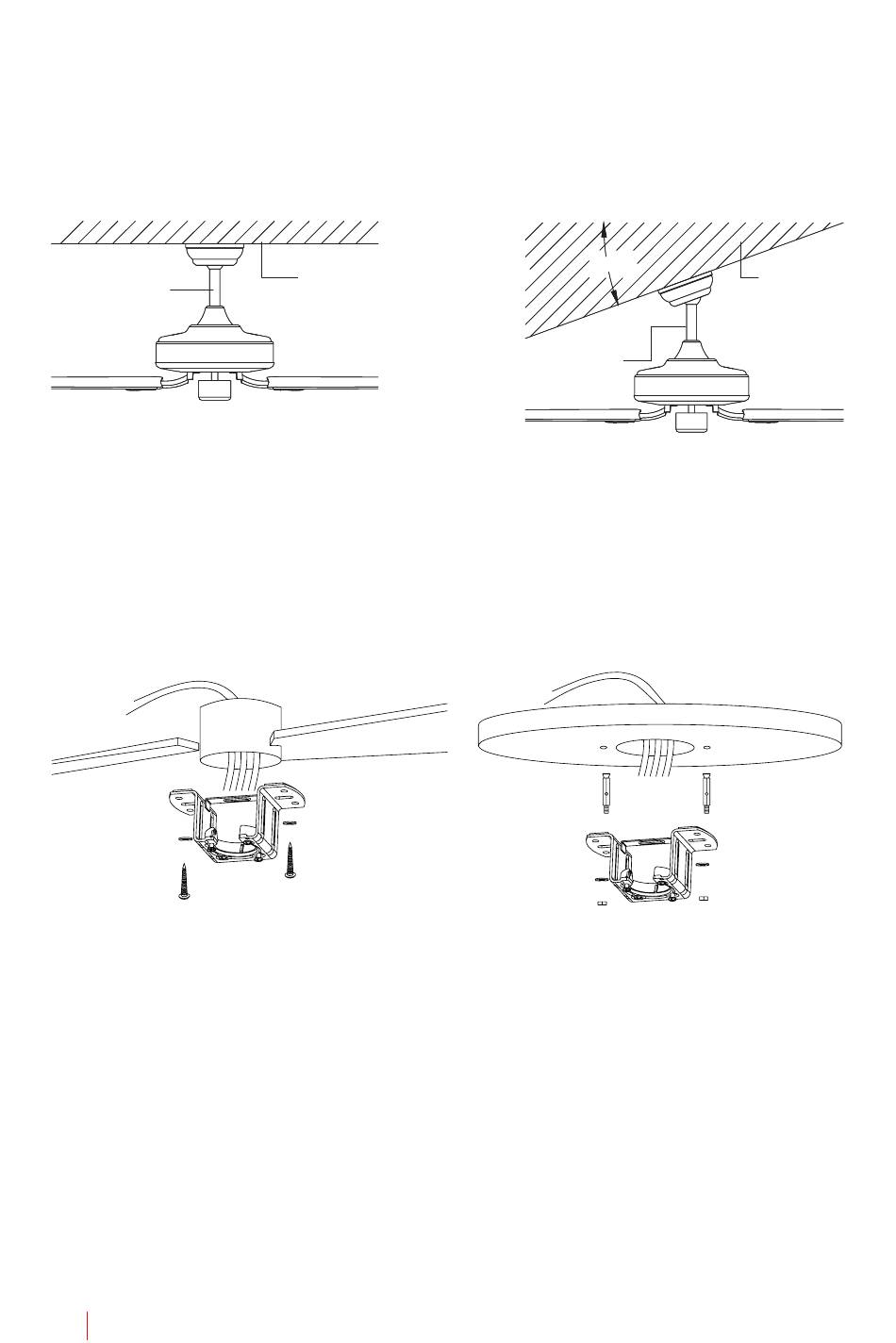

Standard Mounting hangs from the ceiling
by a downrod.
F IX I NG TH E MOUNTI NG B R ACKE T
• The outlet box and joist must be securely mounted and capable of reliably supporting
at least the weight of the fan.
Wooden ceiling
Securely attach the mounting bracket with
wood screws and washers to the ceiling
joints.
E NGL I SH
8
Support brace
Angled mounting recommended for a vault-
ed or angled ceiling.
Concrete ceiling
Bore holes with an 8mm drill, according to
the length of the expansion screws. After
that, fix the mounting bracket to the ceiling
with the expansion screws.
Don't fix the mounting bracket directly on
ceilings thinner than 10mm to avoid the risk
of the screw coming loose.
20° 20°
Angled
mounting style
S u p p o r t
brace
