RE MO TE CO NTROL CONNECTIO N

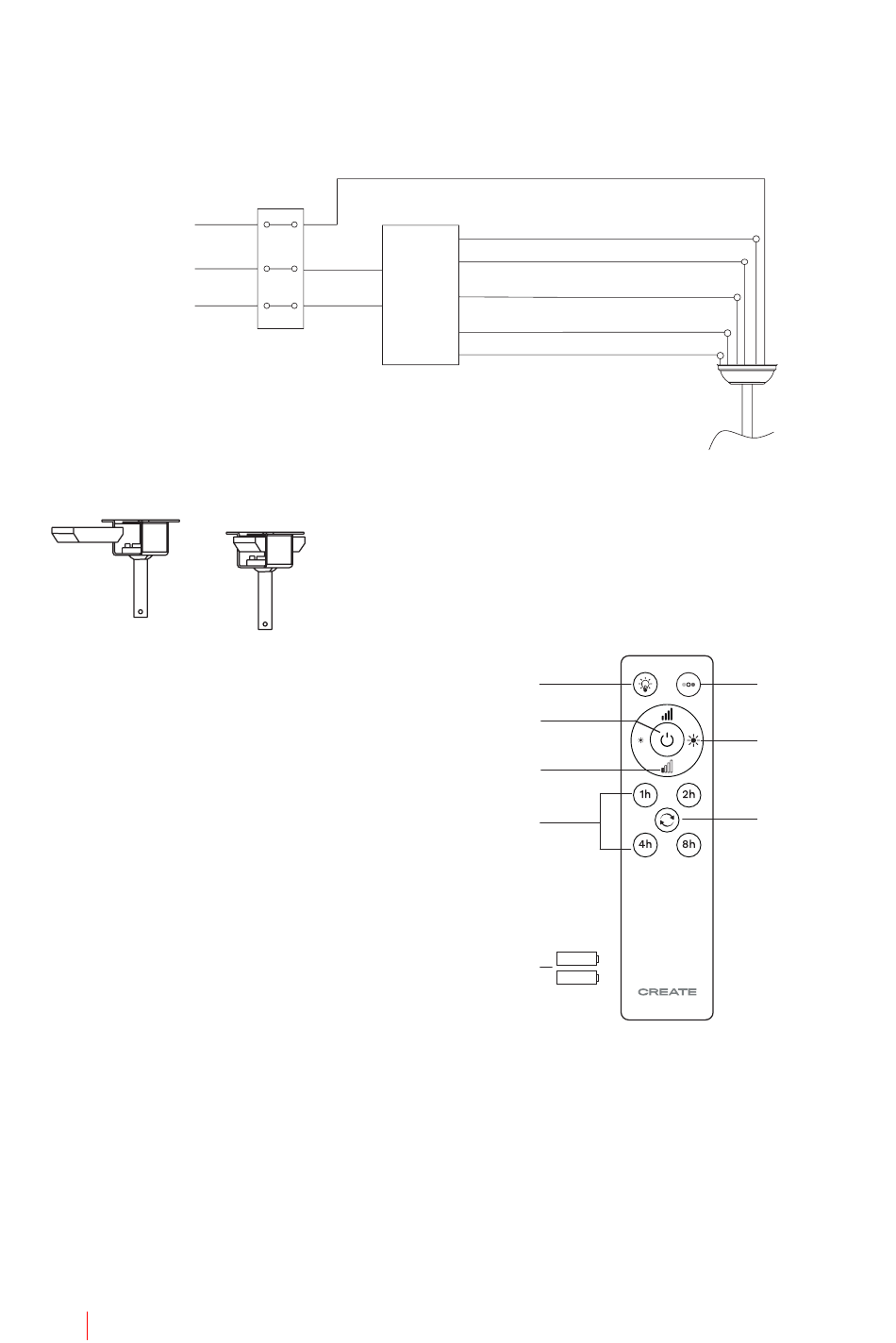

• Make the connection between the receiver cables and the fan motor cables following the
color indications. Make sure the connection is tight.
Ground
wire
DC
L
N
Receiver position:
1. **Light
2. ON / OFF button
3. Fan intensity control
4. Timer
5. Batteries (2 x AAA)
6. **Colour temperature control
7. **Light intensity control
8. Reverse function
** Function only available when
having the LED plate installed.
E NGL I SH
10
L
Remote
control
receiver
Input N
Ground wire
Neutral N
Light L
DC motor L
DC motor L
DC motor L
1
2
3
4
5
6
7
8
