DOW NROD IN STALL AT I O N
• Remove the seat post bolt by removing the pin and pass the finial (crown molding) and
hood through the hanger bar. Next, route the fan motor wires through the inside of the
hanger bar. Tighten the hanger bar to the engine and insert the bolt and pin.
S t a n d a r d
m o u n t i n g
style.

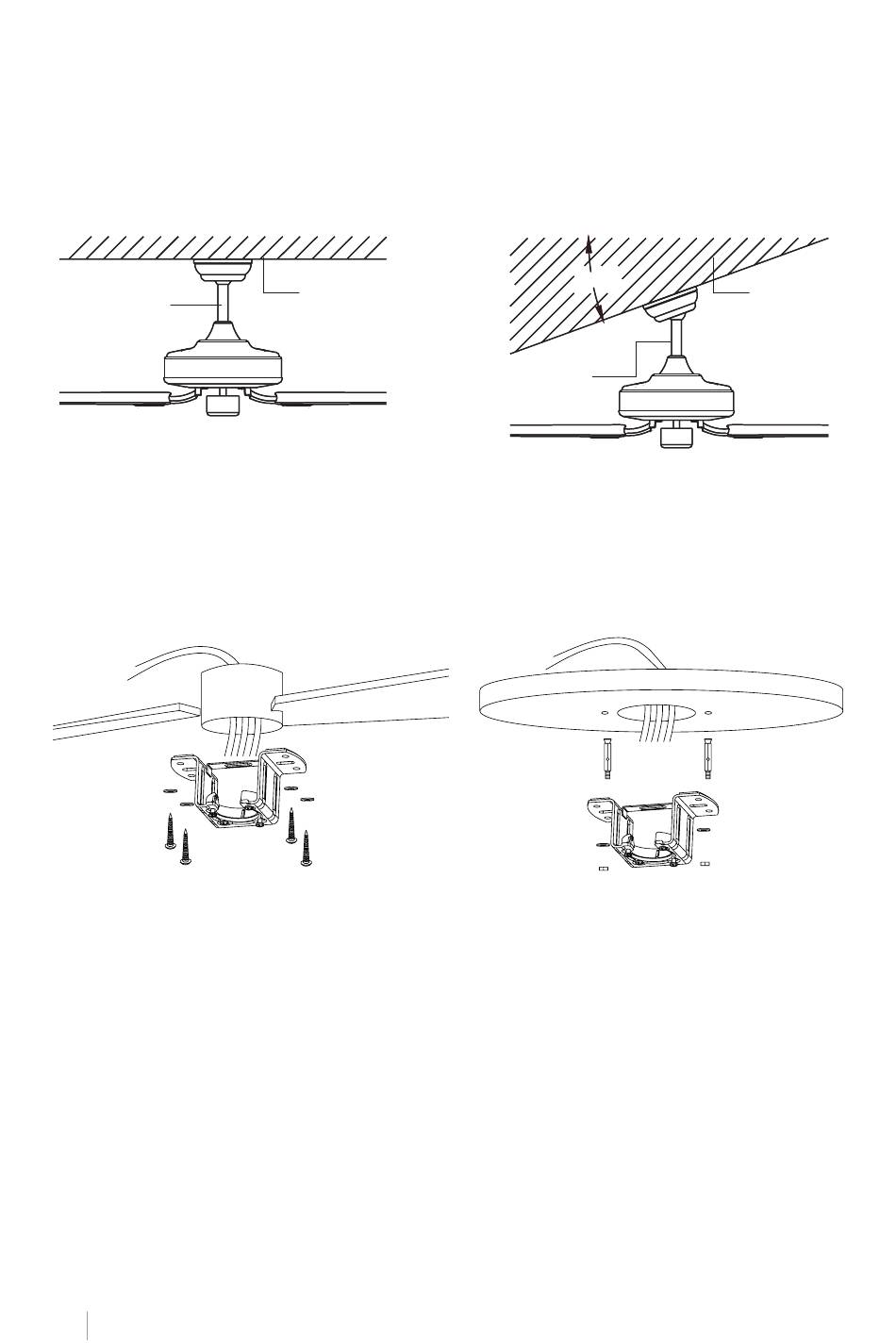

The standard mount hangs from the ceiling
using a rod.
FIX ING TH E MOU NT I NG B R ACKE T
• The outlet box and beam must be securely mounted and capable of reliably supporting at
least the weight of the fan.
Wooden ceiling
Securely attach the mounting bracket with
wood screws and washers to the ceiling
joints.
Do not fix the mounting bracket directly on ceilings with a thickness less than 10mm to avoid
the risk of the screw loosening.
E NGL I SH
8
Support brace
Angle mounting
style.
Angle mounting is recommended for a
vaulted or angled ceiling.
Concrete ceiling
Drill holes with an 8mm drill, depending on
the length of the expansion screws. Next,
secure the mounting bracket to the ceiling
with the expansion screws.
20°
Support brace
