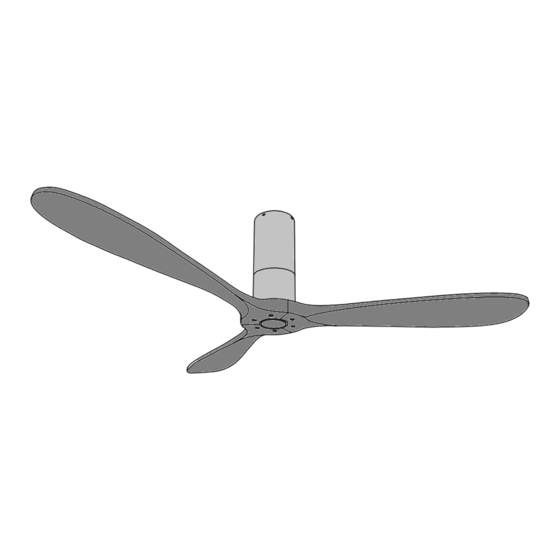

Create WIND TUBE Assembly Manual

Ceiling fan without light
Hide thumbs Also See for WIND TUBE:

Advertisement

Quick Links

Download this manual
WIND TUBE
CEILING FAN WITHOUT LIGHT
MANUAL ASSEMBLY
E NGL I SH
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WIND TUBE and is the answer not in the manual?

Questions and answers

Related Manuals for Create WIND TUBE

Summary of Contents for Create WIND TUBE

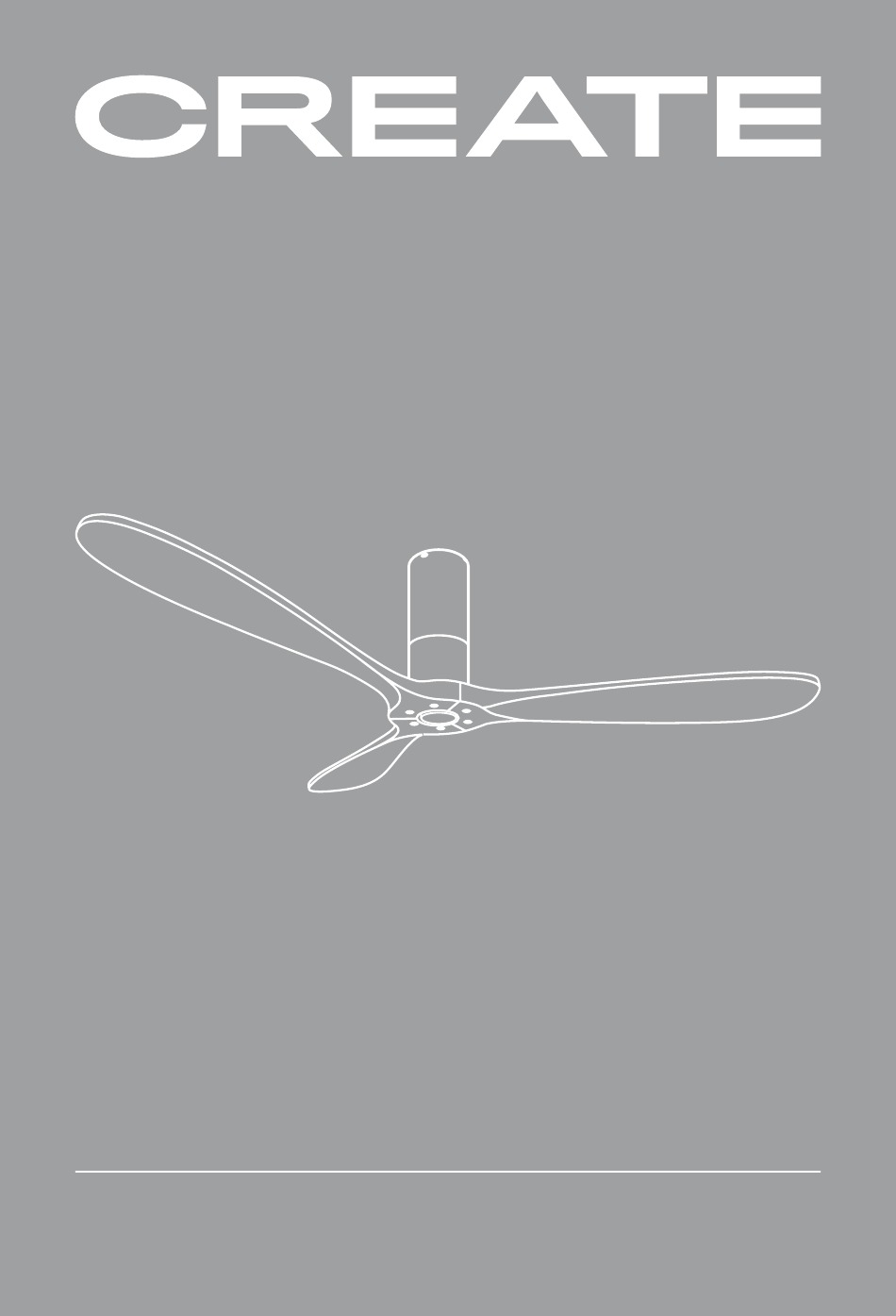

  • Page 1 WIND TUBE CEILING FAN WITHOUT LIGHT MANUAL ASSEMBLY E NGL I SH...
  • Page 4 W I ND TU BE To download this user guide in your language, visit our website: www.create-store.com/uk Para descargar el manual en su idioma, visite nuestra web: www.create-store.com/es Para baixar o manual no seu idiomas, visite nosso site: www.create-store.com/pt Pour télécharger le manuel dans votre langue, visitez notre site Web: www.create-store.com/fr...

  • Page 5: Table Of Contents

    INDE X Box contents Step 1. Wood roof Step 1. Concrete ceiling Step 1. False ceiling Step 2. Driver connection Step 3. Anchor the motor to the ceiling Step 4. Blade assembly Blade balancing kit E NGLI SH...
  • Page 6 B OX C ONT EN T S MOUNTING SUPPORT DRIVER (1) EXPANSION SCREWS (x3) BLADES (2) WOOD SCREWS REMOTE CONTROL ENGINE BASIC SCREWS BLADE SCREWS ENGINE BALANCING KIT SPLICING TERMINALS ATTENTION! Before starting the as- sembly, remember to disconnect the light from the electrical panel so as not to suffer an electric shock.

  • Page 7: Step 1. Wood Roof

    STEP 1. WOO D RO OF PA RT S AN D TOOLS MATERIAL NOT INCLUDED (2) WOOD SCREWS OPTIONAL ACCORDING TO TYPE OF ROOF Mark with a pencil on the ceiling the 4 If necessary, depending on the type of holes of the piece A.

  • Page 8: Step 1. Concrete Ceiling

    STEP 1. C ONC RE T E C EI L I NG PA RT S A N D TO OLS MATERIAL NOT INCLUDED (1) EXPANSION SCREWS Disassemble the part D separating it into pieces. Ø8mm Mark with a pencil 2 parallel holes using With the help of a drill, make the two cor- the part A as a guide.
  • Page 9 Enter the part in order D2, D3 and then the Tighten the part D4 with a No. 10 spanner, nut D4. until you notice that it is well fixed. Make sure the part A It is perfectly hooked to the ceiling. E NGLI SH...

  • Page 10: Step 1. False Ceiling

    STEP 1. FALS E C EI L I NG PA RT S AN D TOOLS MATERIAL NOT INCLUDED FIXING SCREWS WITH SPRING LEVER Mark on the ceiling with a pencil 2 parallel With the help of a drill make the two corre- holes using the piece A as a guide.

  • Page 11: Step 2. Driver Connection

    STEP 2. DRIVE R C O NNECT I O N ENGINE DRIVER Insert the piece hook A in a hole in the piece F so that the motor hangs and facilitates the connection of the cables. Join the connections of the piece F with those of the piece B, each with its corresponding color.
  • Page 12 Connect the PHASE cable Connect the NEUTRAL ca- Once connected, place the of the driver (AC-L) to the ble of the driver (AC-N) to part I screwing it in until it PHASE cable of your in- the NEUTRAL cable of your is secure.

  • Page 13: Step 3. Anchor The Motor To The Ceiling

    STEP 3. A NC HO R THE M OTO R TO T HE CEI L I NG Use 2 screws G and screw them, without tightening them Take out the piece F of the too much, into the parallel holes of the piece A. hook and fit it on the piece A without pinching any wires.

  • Page 14: Step 4. Blade Assembly

    STEP 4. BLADE ASSEMBLY INCLUDES A SPARE (x3) BLADES SCREW Place the first blade C fastening it with the washers and the screws H with the help of the screwdriver, without tightening them too much, to be able to put the rest. Do the same step with the second and third blade C.

  • Page 15: Blade Balancing Kit

    B L ADE BAL A NC ING KI T BALANCING KIT Your ceiling fan may have blade swing problems when in operation due to irregularities in the blades or brackets. Also, incorrect system mounting or crooked bearings could cause additional problems. The following procedure is recommended to remedy these problems: 1.
  • Page 16 E NGL ISH...
