RE MO TE CON TROL CO NNECT I O N

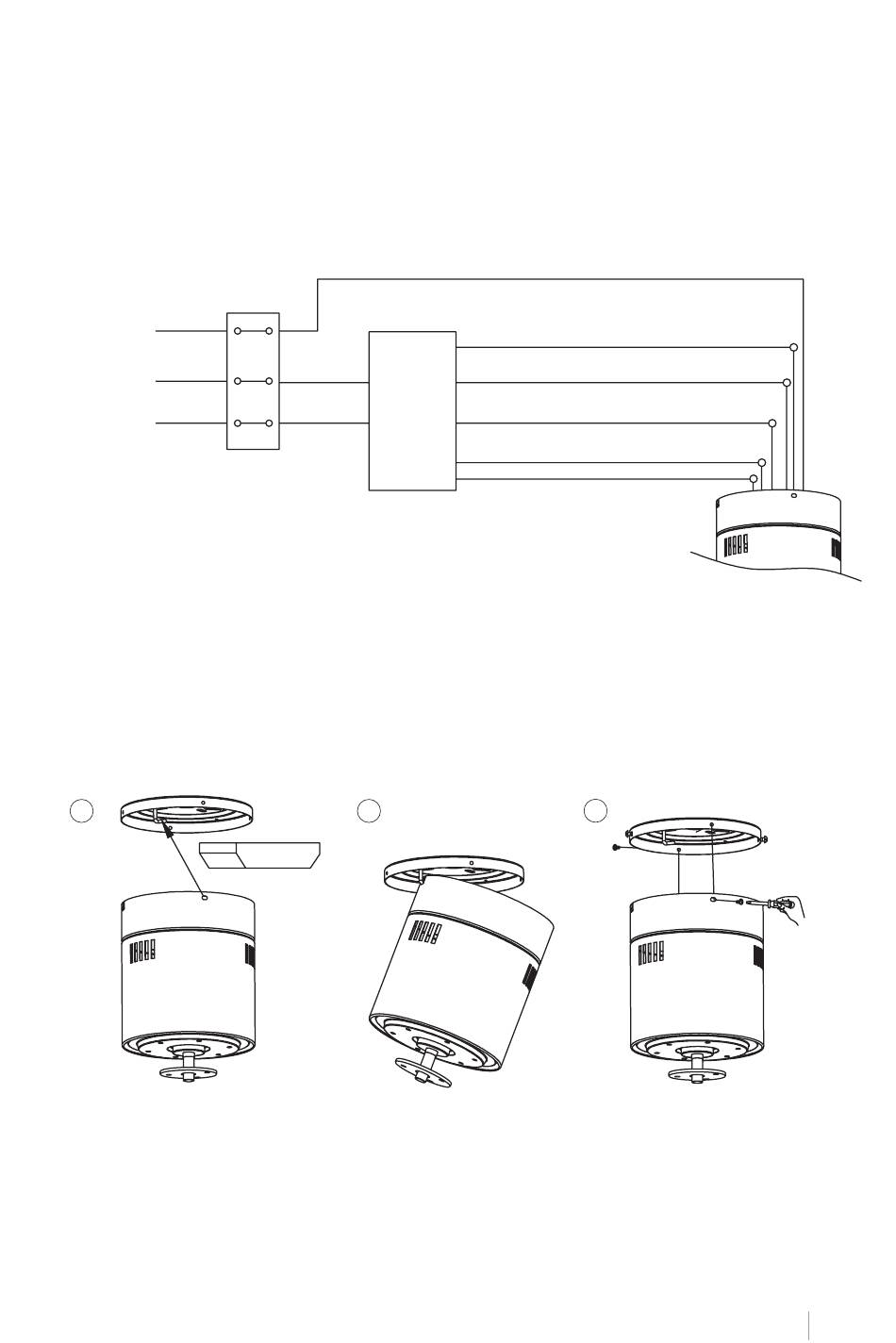

• Make the connection between the receiver wires and the fan motor wires following the
color indications. Make sure the connection is firm.
Take
ground
L
N
R EC E IVE R P L ACE ME NT
Attach the motor to the left hook, and then lead the wiring.
1
• TIP: Someone else should help you hold the ladder and hand you the fan after you get on it.
Ground (green / yellow)
L input
(black)
Remote
control
receiver
Input N
(white)
2
Neutral N (white)
L clear (blue)
DC motor L (gray)
DC motor L (pink)
DC motor L (red)
3
