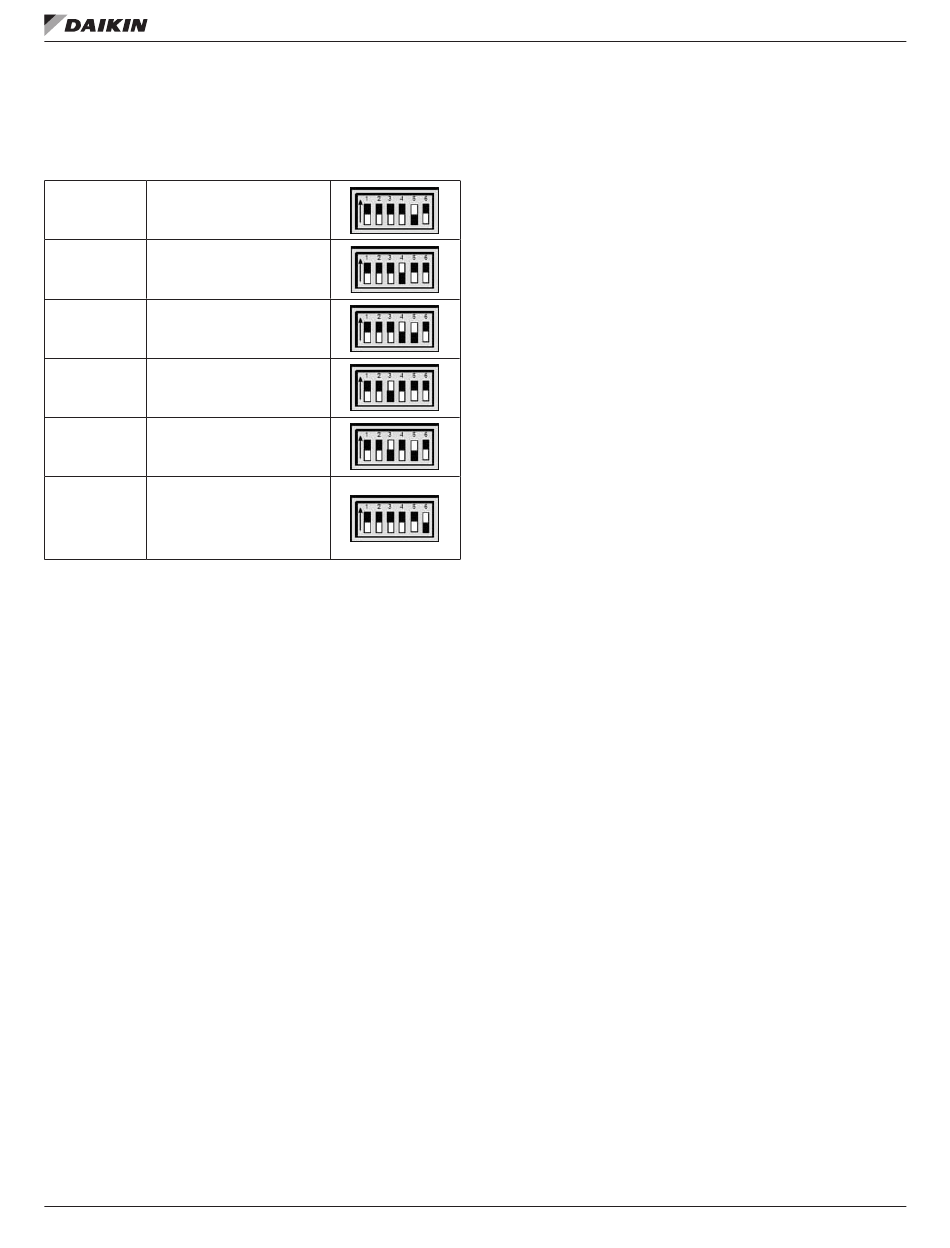

Figure 25: Dip Switch Settings
Expansion
Switch #5 in the up
position (all others down)
Board A
Expansion
Switch #4 in the up
position (all others down)
Board B
Switch #4 and #5 in the
Expansion
up position (all others
Board C
down)
Expansion
Switch #3 in the up
position (all others down)
Board D
Switch #3 and #5 in the
Expansion
up position (all others
Board E
down)
Switch #6 must be in the
up position on the last
Dipswitch #6 expansion board in the
string regardless whether
it is A, B, C, D, or E.
