Wiring Temperature Sensors
Mount the DAT, RAT, MAT, and EWT temperature sensors in
the correct location. Guide the wires for each sensor into the
control panel. Use the sensor plate and plastic sensor support
when installing the DAT and RAT sensors. Follow the wiring
diagram in
Figure
16.
NOTE: The RAT sensor needs to be mounted far enough
down the duct to avoid being influenced by the
outside air temperature.

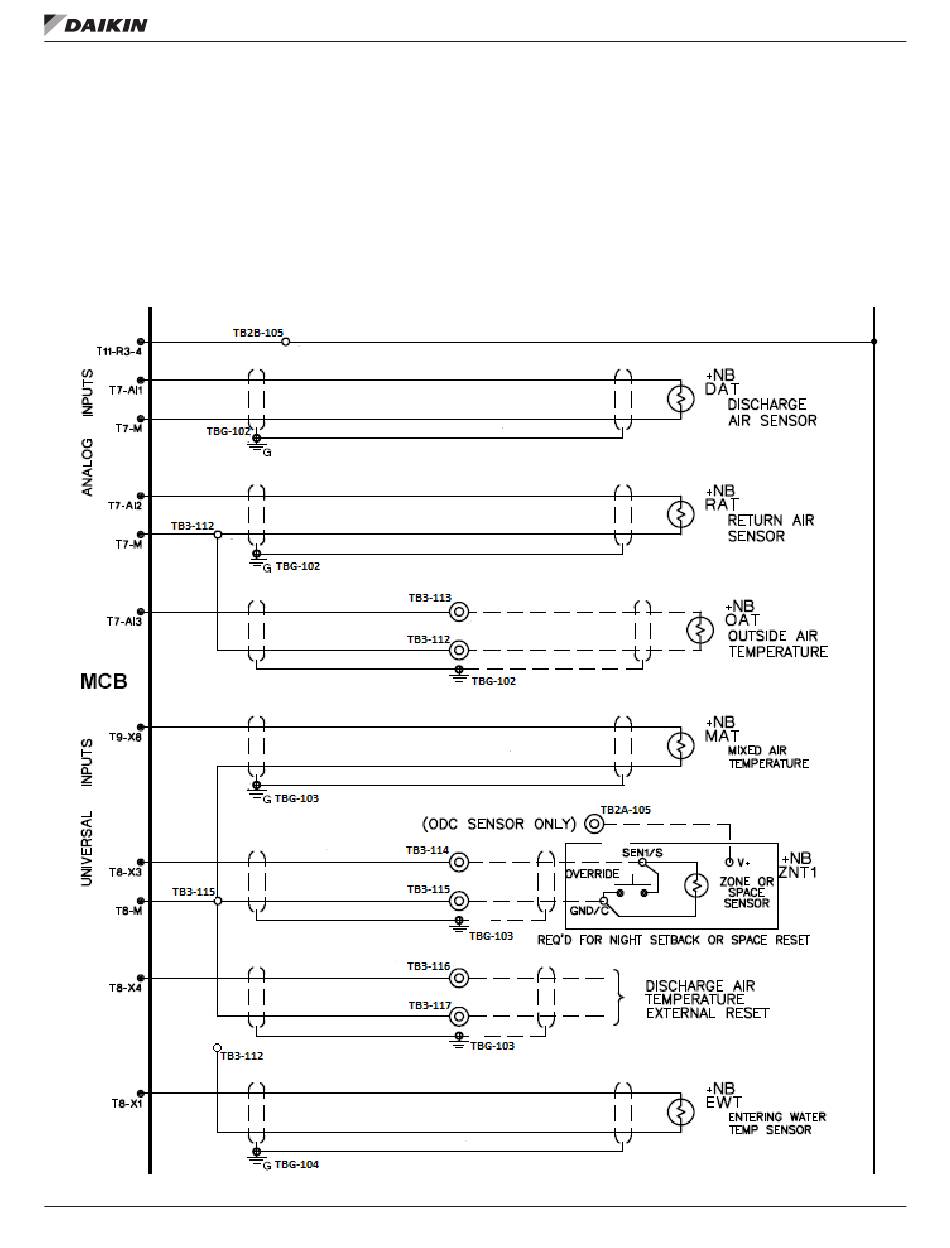

Figure 16: Sensor Wiring Diagram
IM 1285-4 • MICROTECH III
12
Wiring
www.DaikinApplied.com
