Wavy Coulter Assembly Width Adjustment - Orthman 1TRIPR II ROW UNITS Operator's Manual

Wavy Coulter Assembly Width Adjustment

1. Loosen nuts (4).
2. Adjust wavy coulter disc assemblies (3) to desired
width.
3. Tighten nuts to specification. See "Torque
Specifications" on page 7-2.
4
A
1) Width setting (2 used)
1TRIPR II Row Units OM-EN
2
3

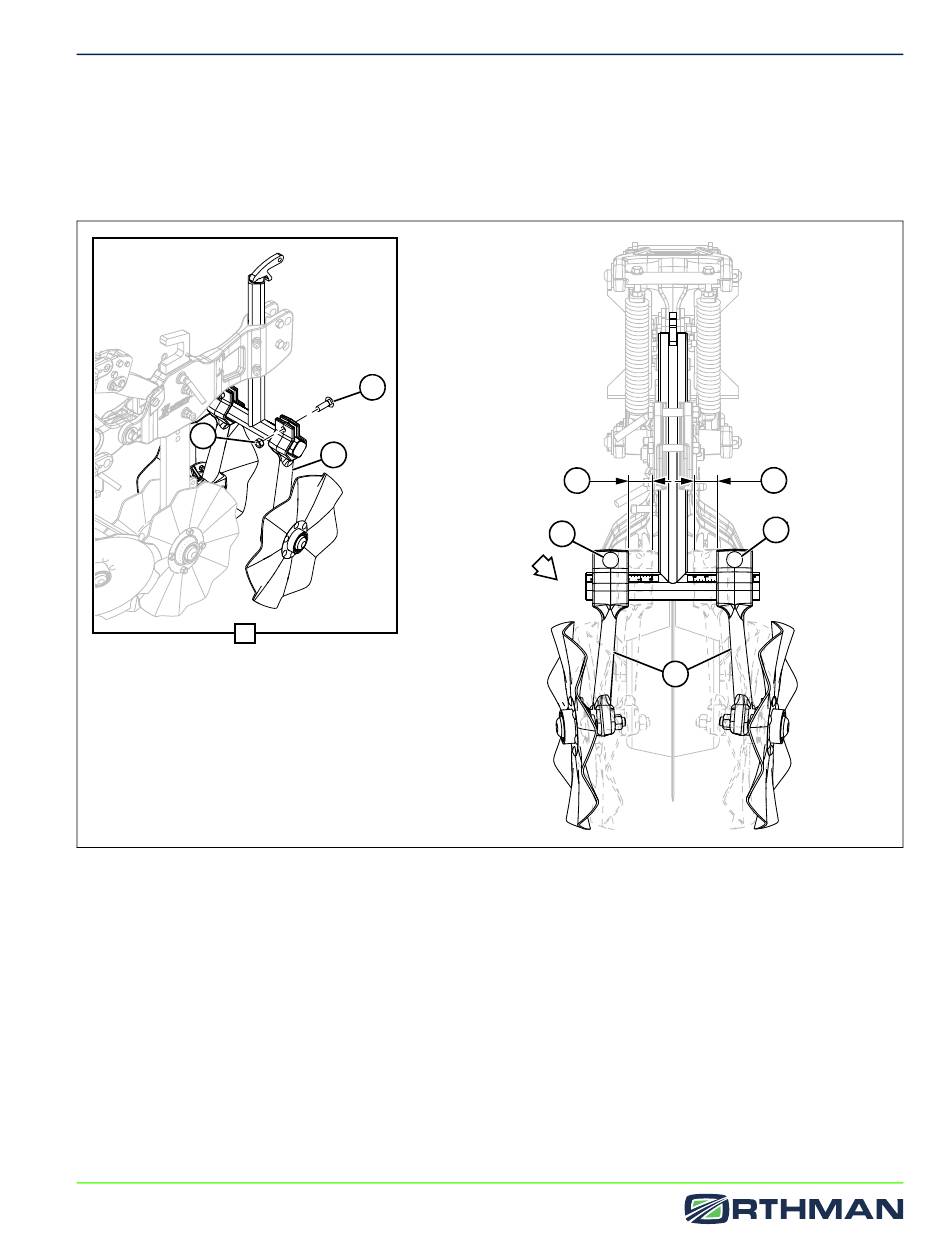

Figure 5-10
2) Bolt (2 used) 3) Wavy coulter disc assembly (2 used)
OPERATION AND FIELD SETTINGS
1
2
A
5-15
1
2
3
ORM000288
4) Nut (2 used)
