Wavy Coulter Assembly Depth And Width; Wavy Coulter Assembly Depth Adjustment - Orthman 1TRIPR II ROW UNITS Operator's Manual

OPERATION AND FIELD SETTINGS
Wavy Coulter Assembly Depth and
Width
Wavy coulter assemblies provide "lift and pinch" action to
incorporate field residue, till, and firm the seedbed.
Tools
• 15/16 in Wrench
• 5/8 in Socket
DANGER
!
Avoid crushing. Failure to follow this information will
result in death or serious injury. Make sure all personnel
are clear of the implement before lowering.
DANGER
!
Avoid crushing. An uneven surface could cause the
implement to shift or fall, resulting in injury or death as
well as implement damage. Park the implement on a
clean, dry, level surface.
DANGER
!
Avoid crushing. Failure to follow this information will
result in death or serious injury. Use bar stands and
cylinder stops to support the implement.
1. Lower the implement to the ground, place the tractor
in park, turn off the engine, and remove the key.
2. Remove buildup of grease, oil, and debris prior to
adjusting wavy coulter assembly depth and width.
See "Implement Inspection" on page 7-4.
CAUTION
!
Be extremely careful working around unshielded sharp
edges. Injury may result from contact with sharp edges.

Wavy Coulter Assembly Depth Adjustment

1. Support wavy coulter assembly (1).
2. Loosen jam nuts (3) and set bolts (2).
3. Adjust wavy coulter assembly to desired depth.
4. Tighten jam nuts and set bolts to specification. See
"Torque Specifications" on page 7-2.
1
2
1) Wavy coulter assembly
2) Set bolt (2 used)
5-14
4
3

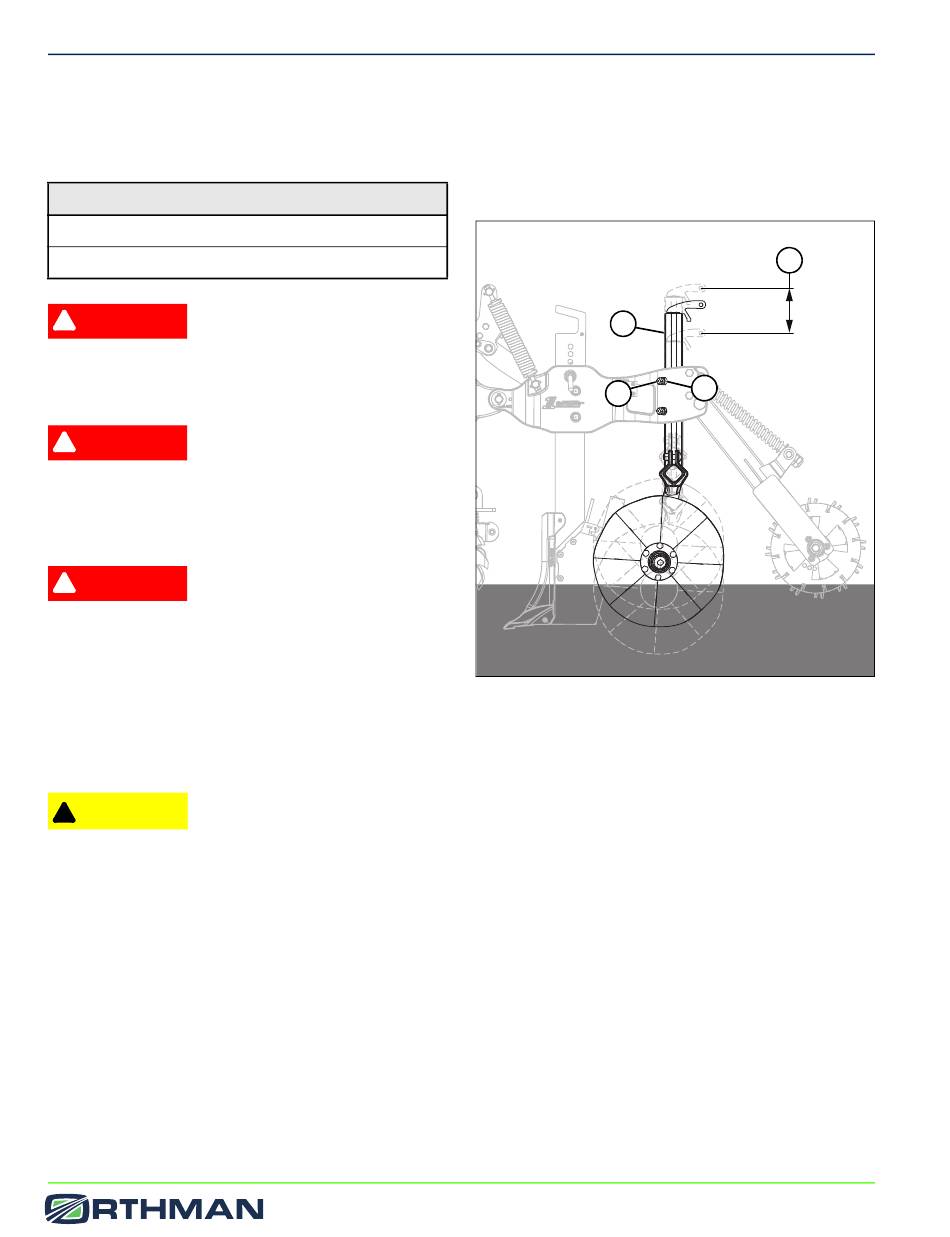

Figure 5-9
3) Jam nut (2 used)
4) Depth setting
