Tail Section - Orthman 1TRIPR II ROW UNITS Operator's Manual

Tail Section

NOTE: The dry fertilizer 2 inch boot tillage shank
assembly (2) is shown. The liquid fertilizer boot,
dry fertilizer 1.5 inch boot, shallow tillage shank,
mole knife shank, and AA knife shank assemblies
are similar.
1) Auto-reset (AR) trip linkage (optional)
2) Tillage shank assembly
1TRIPR II Row Units OM-EN
1
2

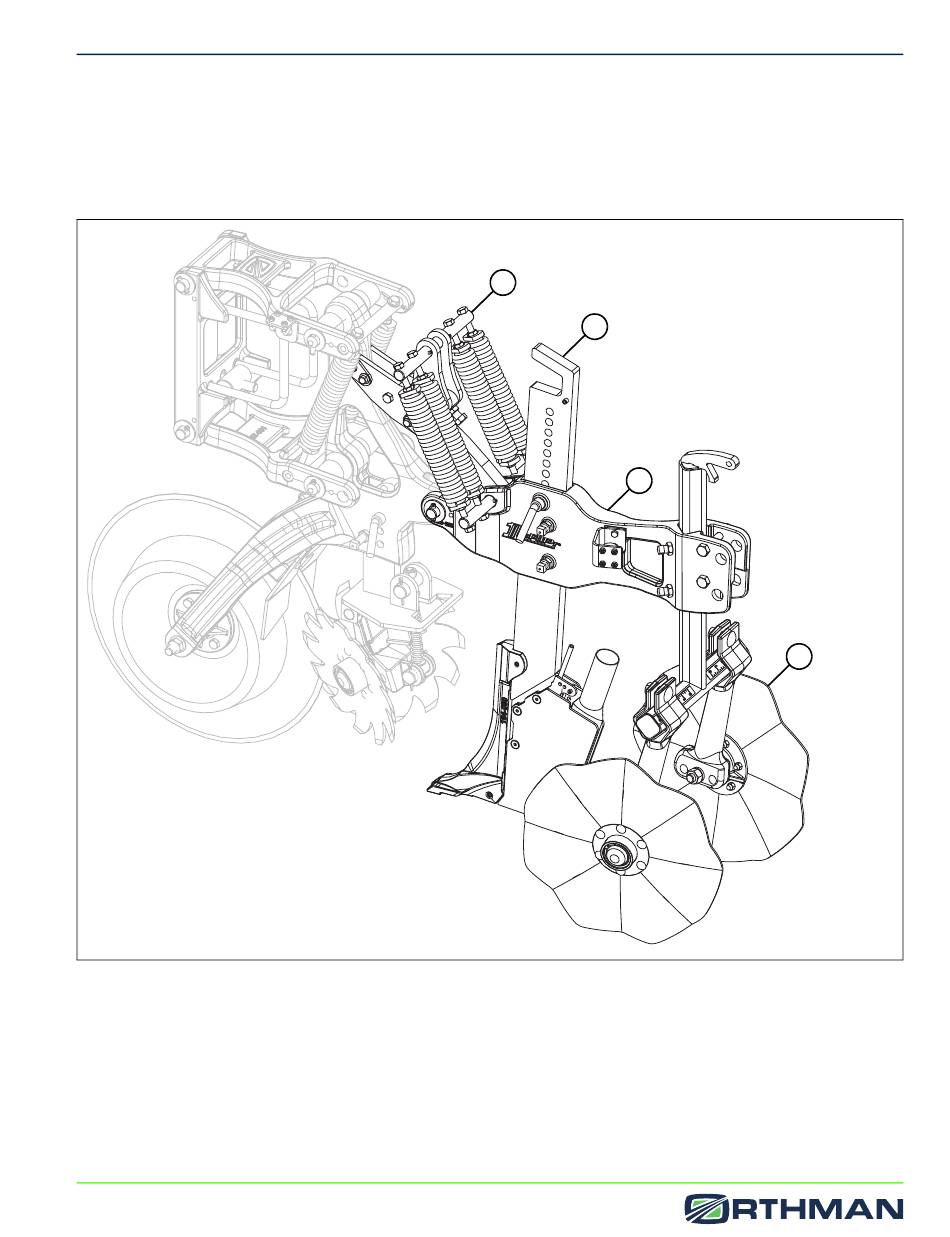

Figure 3-2

3) Tail section

4) Wavy coulter assembly
3-3
MAJOR COMPONENTS
3
4
ORM000252
