PREPARATION AND SETUP
7. Remove bolt (10) and pin (9) from AR trip linkage
package.
8. Remove lower bolts (12), spring pins (11), and pin
(13) from AR trip linkage package.
9
10

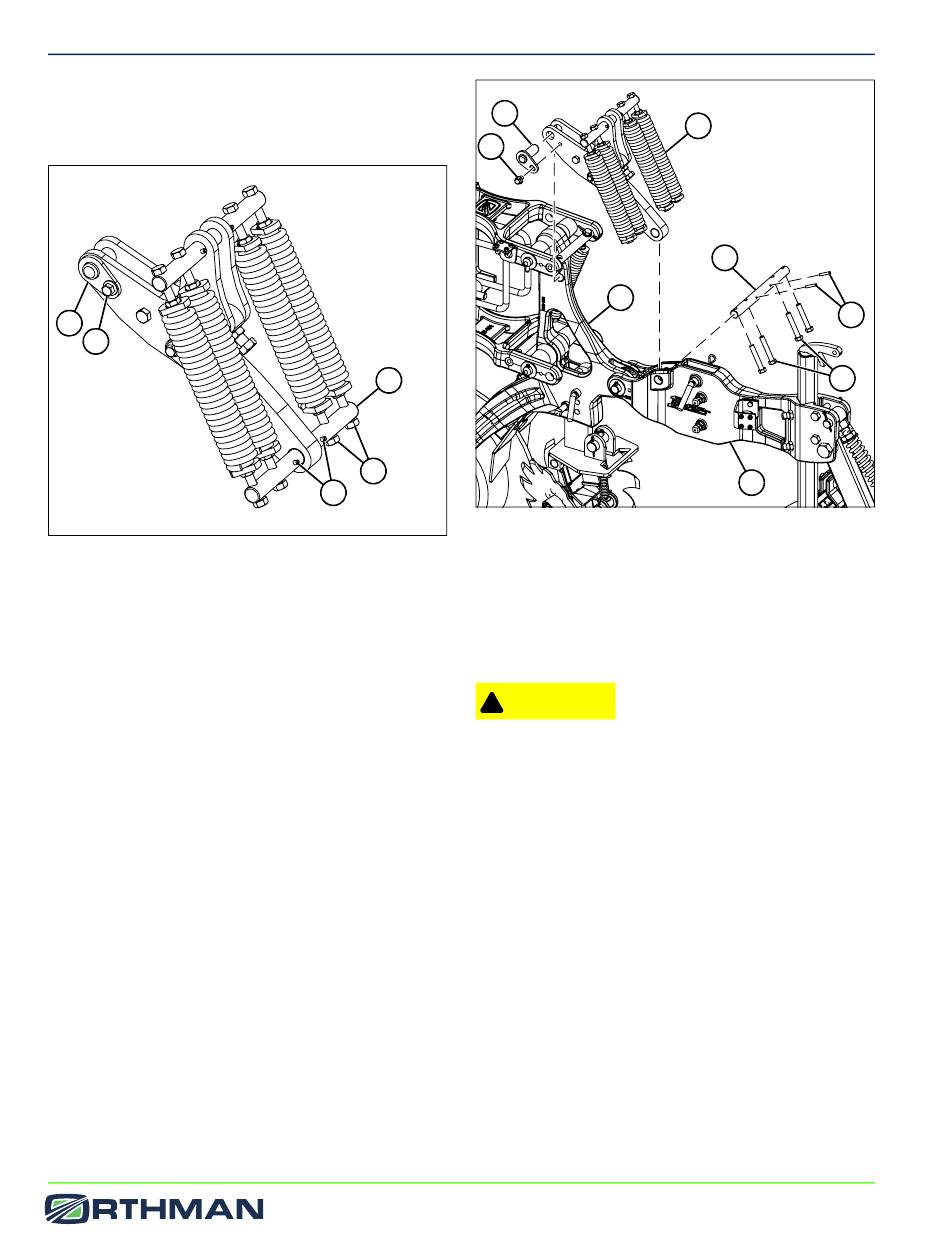

Figure 4-20
9) Pin
10) Bolt
11) Spring pin (2 used)
9. Position the AR trip linkage assembly (14) over the
main frame (15) and align pin holes.
10. Insert pin (9) and bolt (10).
11. Lower the AR trip linkage assembly into the tail
section (16) and align pin holes.
12. Insert pin (13) and spring pins (11).
13. Align springs and insert bolts (12).
13
12
11
ORM000292
12) Bolt (4 used)
13) Pin
9
10
15
9) Pin
10) Bolt
11) Spring pin (2 used)
12) Bolt (4 used)
14. Insert bolts (1), jam nuts (2), and left down-pressure
spring (3), see Figure 4-19 on page 4-17.
CAUTION
!
Avoid injury. Springs are under tension. Adjust spring
tension slowly. Failure to follow this information will
result in serious injury.
15. Tighten spring tension bolts to factory settings. See
"Automatic Reset (AR) Trip Linkage" on page 5-21.
4-18
14
13
16
Figure 4-21
13) Pin
14) AR trip linkage assembly
15) Main frame
16) Tail section
