TRACKER IV
IMPLEMENT GUIDANCE SYSTEM
OPERA TOR'S MANUAL
ORTHMAN
MANUFACTURING
INCORPORA TED
STILL THE STRONGEST
ORTHMAN MFG. INC.
75765 RD. 435
LEXINGTON, NE 68850
OM07-12-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRACKER IV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Orthman TRACKER IV

Summary of Contents for Orthman TRACKER IV

  • Page 1 TRACKER IV IMPLEMENT GUIDANCE SYSTEM OPERA TOR’S MANUAL ORTHMAN MANUFACTURING INCORPORA TED STILL THE STRONGEST ORTHMAN MFG. INC. 75765 RD. 435 LEXINGTON, NE 68850 OM07-12-01...
  • Page 2 Move to a safe place. Lightening, hail and tornadoes are unpredictable. Orthman Manufacturing, Inc. does not limit the potential effects or injuries nor prevention measures to those listed above. They are provided solely as a guideline to making your farm life safer. Always consult your Owner/Operators Manual for specific tool and equipment safety requirements.
  • Page 3 The Benefits of Improved Safety and Health Practices Orthman Manufacturing Provides this document in the hope that everyone that has a job to do, does it SAFELY. Our goal and yours should be to end each day in the best possible health. Better safety and health practices reduce fatalities, injuries, and illnesses as well as associated costs such as workers’...

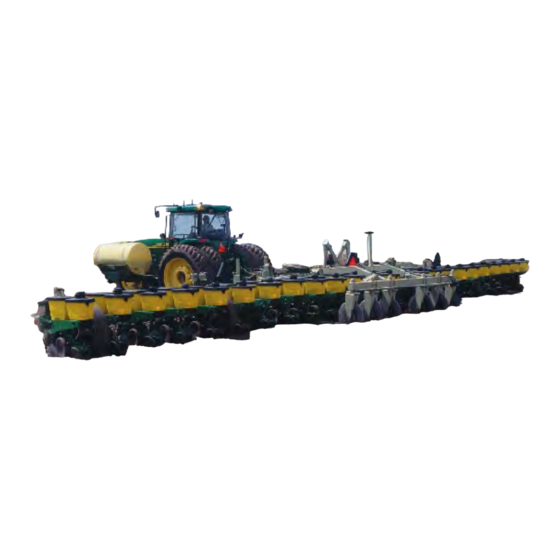

  • Page 4 (6-Blade Tracker IV Guidance System mounted to a 1900 Series Planter Toolbar) The Tracker IV frame consists of a 5” x 7” x 3/8” wall cross tube positioned similar to that of the existing toolbar. A spindle, yoke, and steering blade are then assembled allowing the steering blade to protrude into the ground surface.
