Mole Shank Shin Cap Installation - Orthman 1TRIPR II ROW UNITS Operator's Manual

PREPARATION AND SETUP

Mole Shank Shin Cap Installation

DANGER
!
Avoid crushing. Failure to follow this information will
result in death or serious injury. Make sure all personnel
are clear of the implement before lowering.
DANGER
!
Avoid crushing. An uneven surface could cause the
implement to shift or fall, resulting in injury or death as
well as implement damage. Park the implement on a
clean, dry, level surface.
DANGER
!
Avoid crushing. Failure to follow this information will
result in death or serious injury. Use bar stands and
cylinder stops to support the implement.
1. Lower the implement to the ground, place the tractor
in park, turn off the engine, and remove the key.
2. Remove buildup of grease, oil, and debris prior to
installing shin caps. See "Implement Inspection" on
page 7-4.
CAUTION
!
• Be extremely careful working around unshielded
sharp edges. Injury may result from contact with
sharp edges.
• Avoid implement damage. Do not strike foot piece
ear (8) with hammer.

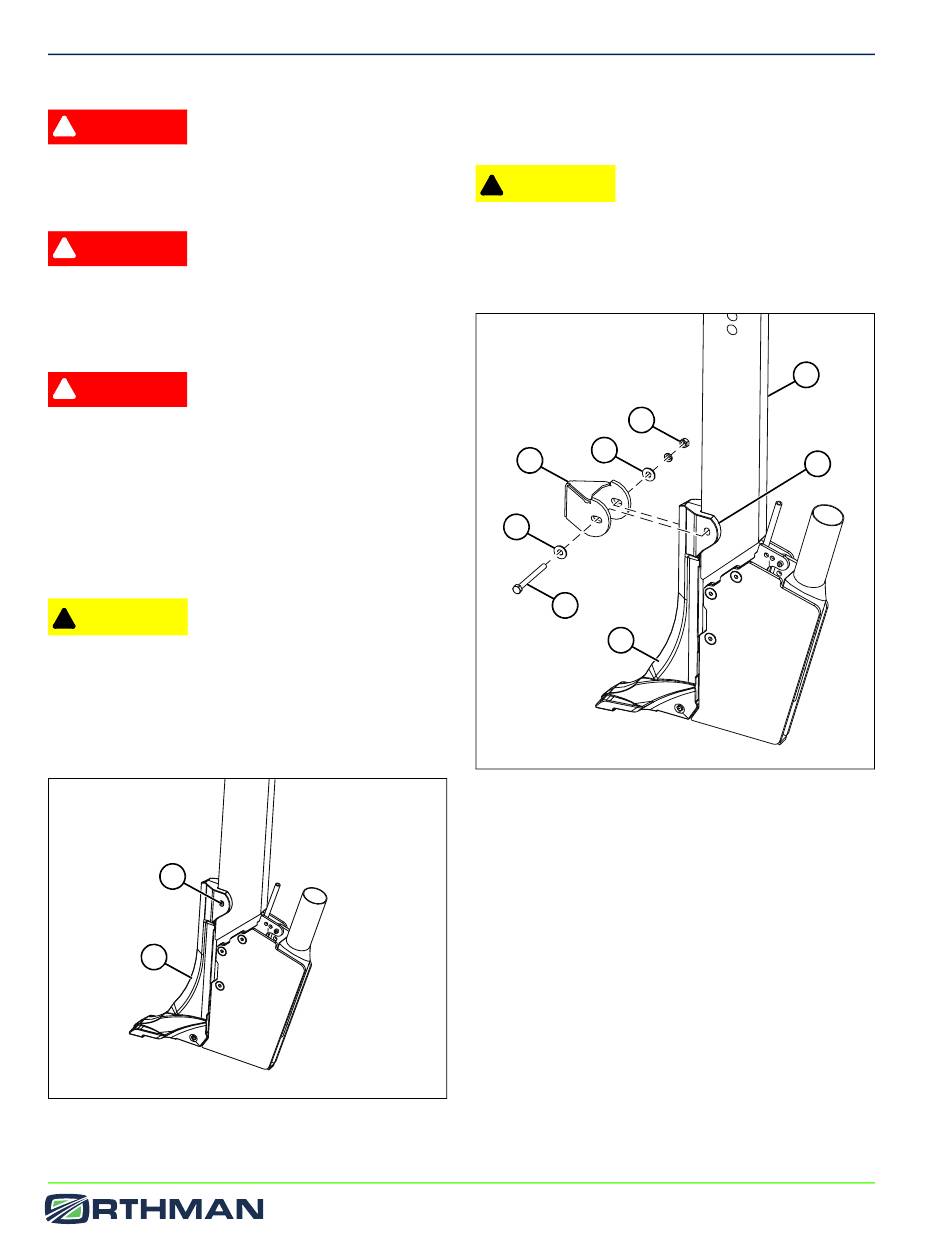

3. Remove upper roll pin (1) from foot piece (2).
1
2
Figure 4-17
1) Roll pin
ORM000281
2) Foot piece
4. Fit shin cap (5) over foot piece ear (8) and align
holes.
5. Using washers (4) on each side, insert bolt (3)
through shin cap, foot piece (2), and shank (7).
CAUTION
!
Avoid implement damage. Do not over-tighten nut (6)
and bolt to avoid damage to the shin cap and foot piece
ear.
6. Tighten nut and bolt.
4
5
4
3
2
z
2) Foot piece
3) Bolt
4) Washer (2 used)
5) Shin cap
4-16
7
6
Figure 4-18
6) Nut
7) Shank
8) Foot piece ear
1TRIPR II Row Units OM-EN
