PREPARATION AND SETUP

Rolling Basket Assembly

The rolling basket assembly is an option that features
adjustable down pressure to help break up remaining
clods and ensure smooth 1tRIPr® II operation. The
rolling basket is mounted to the rear of the row unit tail
section.
NOTE: Due to clearance issues, rolling baskets cannot be
used in conjunction with certain planter
attachment packages. A lift assist wheel extension
package is available to utilize rolling baskets and
lift assist wheels simultaneously. Contact your
Orthman dealer for lift assist wheel extension
package information to alleviate clearance issues.

Rolling Basket Assembly Installation

• 1-1/2 in Socket or wrench
DANGER
!
Avoid crushing. Failure to follow this information will
result in death or serious injury. Make sure all personnel
are clear of the implement before lowering.
DANGER
!
Avoid crushing. An uneven surface could cause the
implement to shift or fall, resulting in injury or death as
well as implement damage. Park the implement on a
clean, dry, level surface.
DANGER
!
Avoid crushing. Failure to follow this information will
result in death or serious injury. Use bar stands and
cylinder stops to support the implement.
1. Lower the implement to the ground, place the tractor
in park, turn off the engine, and remove the key.
2. Remove buildup of grease, oil, and debris prior to
installing row unit mounts. See "Implement
Inspection" on page 7-4.
Tool
CAUTION
!
Be extremely careful working around unshielded sharp
edges. Injury may result from contact with sharp edges.

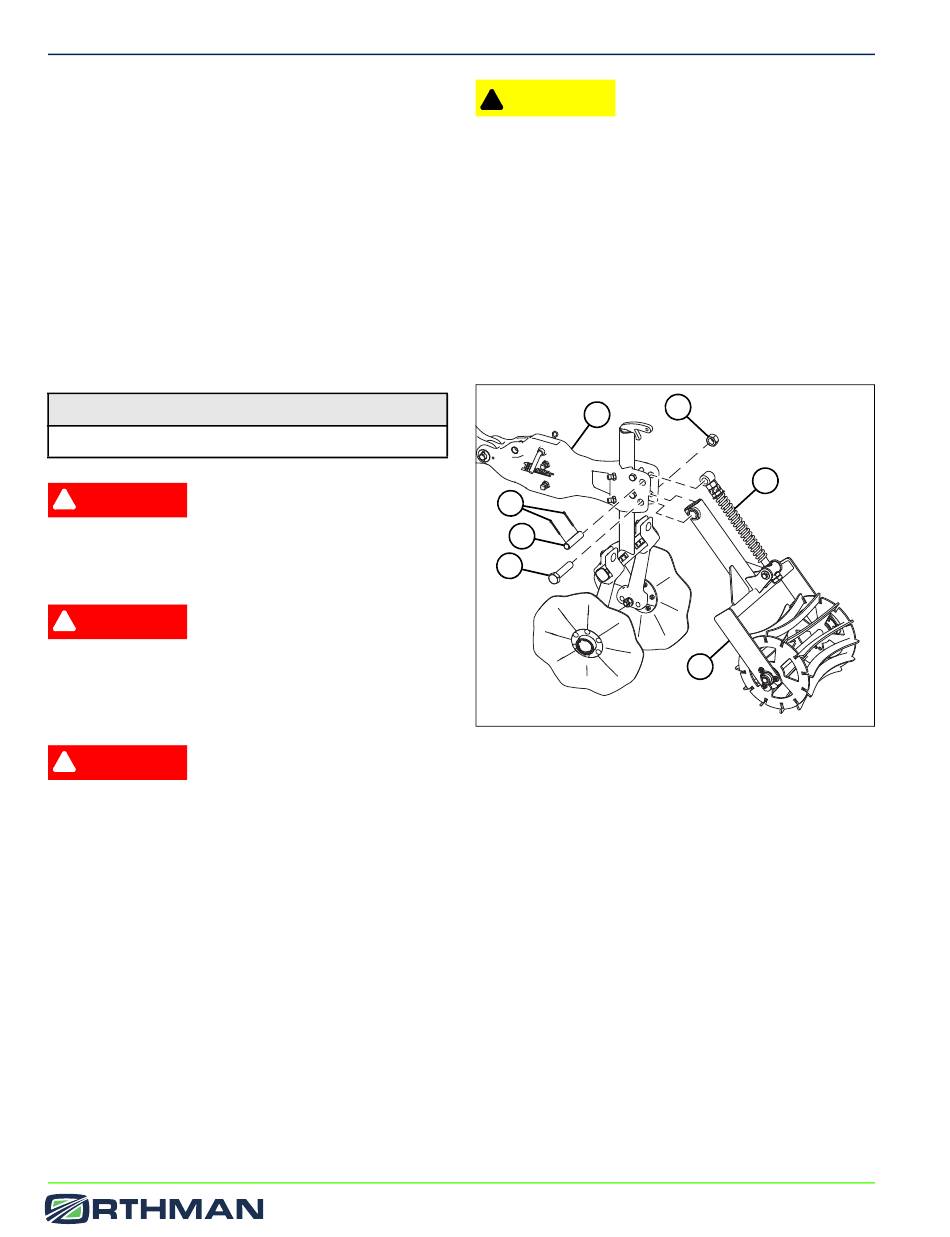

3. Remove nut (2) and bolt (5) from basket frame (4).
4. Align tail section (1) and basket frame bolt holes.
5. Install nut and bolt and tighten to proper torque
specifications. See "Torque Specifications" on
page 7-2.
6. Remove cotter pins (7) and pin (6) from the spring
assembly (3).
7. Align tail section and spring assembly pin holes.
8. Install pin and cotter pins.
1
7
6
5
1) Tail section
2) Nut
3) Spring assembly
4) Basket frame
9. Adjust rolling basket down pressure as needed. See
"Rolling Basket Down Pressure" on page 5-11.
4-8
2
3
4
Figure 4-4
5) Bolt
6) Pin
7) Cotter pin (2 used)
