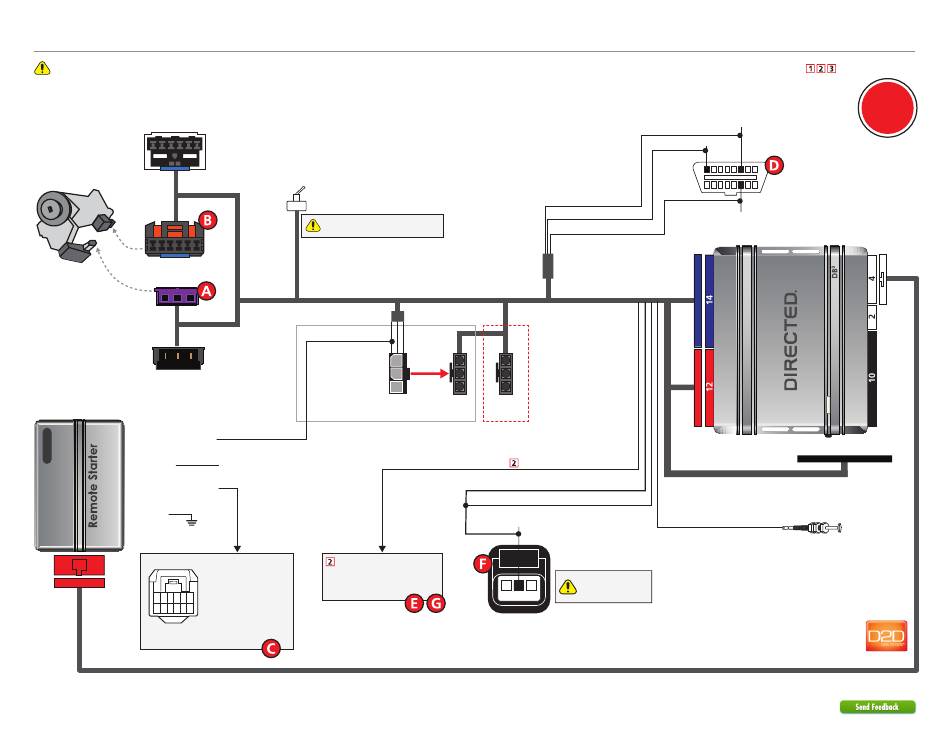

Wiring diagram with T-Harness (THGMD1 Rev. 1)
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Ignition Switch
(black or white connector)
Ignition Barrel
To
Immobilizer Control Module
(violet connector
under ignition switch)
Away from
Immobilizer Control Module
(vehicle side)
(+) Ignition Input/Output
(+) 12V Input
(-) Parking Lights Output
(-) Ground
(-) Parking Lights: Pin 3, 5 or 7
Refer to the
Vehicle connections
D2D Port
section for the
corresponding
1 2 3 4 5 6
connector, pin and
7 8 9 10 11 12
wire color of your
vehicle.
Headlight Switch
(black 12-pin connector)
6 403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
Remote Start Safety
Override Switch
The Remote Start Safety Override
Switch MUST be in the ON position.
THGMD1 Rev. 1
Tap on to the
Yellow wire of this
3-pin connector and
connect it to the
Ignition Input of the
Remote Starter.
(+) 12V
(-) Driver's Door Trigger
Refer to the Vehicle connections
section for the corresponding
connector, pin and wire color.
HS CAN High: Tan/Black
SW CAN: Lt. Green
HS CAN Low: Tan
(Optional T-Harness)
CONNECT
Type 1 Type 2
NOT USED
(-) RAP Off Output: Green/Black
(MUX) Clutch Output: Violet/Green
(MUX) Clutch Output: Violet/Brown
Clutch: Yellow, pin B
ONLY required for
A B C
manual transmission
applications.
Clutch Switch
(black 3-pin connector)
OBDII Diagnostic
(connector side view)
HS CAN High: Pin 6
SW CAN: Pin 1
1 8
9 16
HS CAN Low: Pin 14
Do not connect
Hood Pin
Hood: White/Black
Note: The Hood Pin is
only required on
vehicles that are not
equipped with a
factory hood pin.
).
D2D
only
XKD2D65
