Directed DB3 Installation Manual
Hide thumbs
Also See for DB3:
- Installation manual (25 pages) ,
- Manual (6 pages) ,
- Installation manual (22 pages)
Related Manuals for Directed DB3
Summary of Contents for Directed DB3

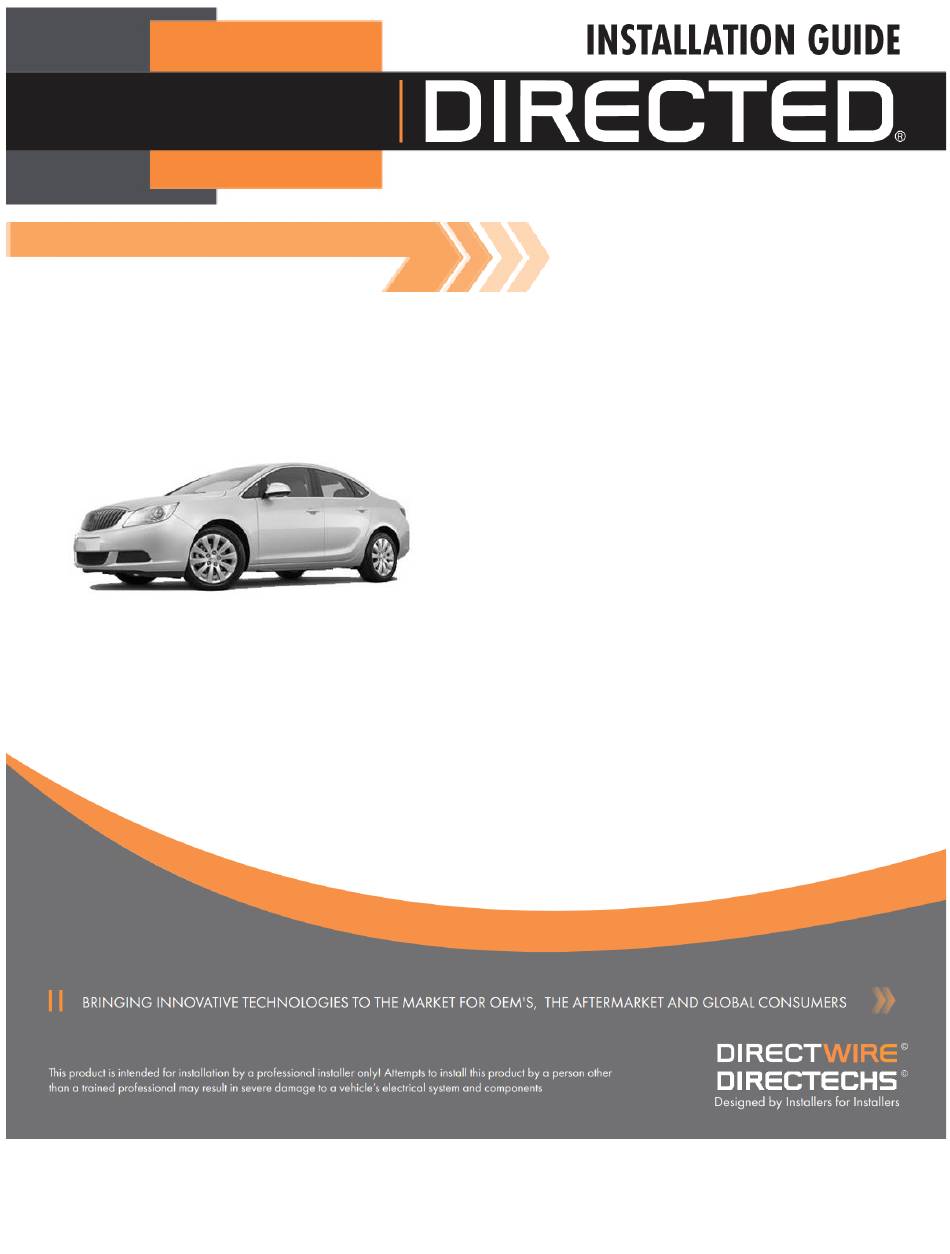

- Page 1 403.GM10 v4.27 2016 Buick Verano THGM610D, THGMD1 Compatible (Sold Separately)
-
Page 2: Table Of Contents
Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Installation Wiring diagram with T-Harness (THGMD1 Rev. 1) Wiring diagram with T-Harness (THGMD1 Rev. 3) Wiring diagram with T-Harness (THGM610D Rev. 1 & 2) Wiring diagram with T-Harness (THGM610D Rev. 3) Wiring diagram Locating components in the vehicle Vehicle connections... -
Page 3: Introduction

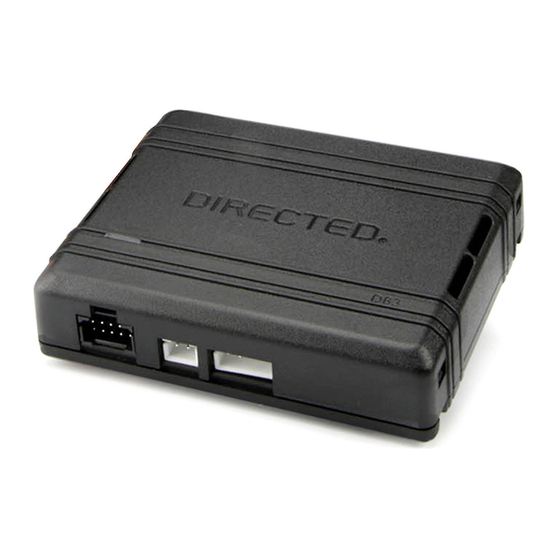

Introduction DB3 is an all-in-one door lock and override module. Warning! This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.GM10 4.27 2016 Buick Verano... -
Page 4: Vehicle Function Compatibilities
Vehicle function compatibilities This section lists all the functions compatible with this vehicle for the installation illustrated in this guide. Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart. Arm Factory Security OEM Remote Start Activation using XL-202 or RF kit Disarm Factory Security RAP Shut Down (Retained ACC Power) Door Lock Control... -
Page 5: Pre-Installation And Application Warnings
Pre-installation and application warnings Firmware notes: This section highlights important information for this specific firmware and will assist in pricing accordingly, as well as bringing awareness to any operational or vehicle limitations. T-Harness Keys required for Keys required for THGMD1 or THGM610D compatible programming operation... -
Page 6: Installation
Wiring diagram with T-Harness (THGMD1 Rev. 1) Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( Ignition Switch OBDII Diagnostic only (black or white connector) (connector side view) HS CAN High: Pin 6 SW CAN: Pin 1 Remote Start Safety... -
Page 7: Wiring Diagram With T-Harness (Thgmd1 Rev. 3)
Wiring diagram with T-Harness (THGMD1 Rev. 3) Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( Ignition Switch OBDII Diagnostic only (black or white connector) (connector side view) HS CAN High: Pin 6 SW CAN: Pin 1 NOT USED... -
Page 8: Wiring Diagram With T-Harness (Thgm610D Rev. 1 & 2)
Wiring diagram with T-Harness (THGM610D Rev. 1 & 2) Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( 4-pin only White Connector OBDII Diagnostic Use connectors Cut away the 4-pin (connector side view) connector and connect labeled GM10... -
Page 9: Wiring Diagram With T-Harness (Thgm610D Rev. 3)
Wiring diagram with T-Harness (THGM610D Rev.3) Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( OBDII Diagnostic only (connector side view) HS CAN High: Pin 6 Use connectors SW CAN: Pin 1 labeled GM10 Ignition Barrel... -
Page 10: Wiring Diagram
Wiring diagram Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( Ignition Switch OBDII Diagnostic (black or white connector) (connector side view) XKD2D65 SW CAN: Green, pin 1 (+) Accessory: Pin 3 HS CAN High: Tan/Black or Blue... -
Page 11: Locating Components In The Vehicle
Locating components in the vehicle 403.GM10 4.27 2016 Buick Verano ©2022 VOXX•DEI LLC. All rights reserved. -
Page 12: Vehicle Connections
Vehicle connections The connection information listed below is specific to the 2016 Buick Verano. Refer to “Pre-installation and application warnings” for a list of important notes. Data 14-pin blue connector (H1) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H1/1 Light Green... - Page 13 Input 10-pin black connector (H3) Module Connects To Conn./Pin Color Description Wire Location (+/-) Wire Color H3/1 Green (-) W2W Only - Lock Input Remote Starter H3/2 Blue (-) W2W Only - Unlock Input Remote Starter H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter H3/4 White/Violet...
-
Page 14: Module Programming
Module programming Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes. Wait until the LED turns ON solid red. Note: To skip the transponder programming and use convenience features only, press the programming button 5 times. Wait until the LED turns ON solid orange for 3 seconds, then proceed to step 2. -
Page 15: Key2Go
Any first-time user must re-register to gain access to Key2GO, and some additional information will be required to complete the registration process, such as your Directed account number and store name. Key2GO is compatible with XKLoader2 and the online web tool, as well as XKLoader3 and the Directechs Mobile application. -
Page 16: Led Diagnostics And Troubleshooting
LED diagnostics and troubleshooting This section provides LED diagnostics and troubleshooting information to guide you through the various stages of your installation. Module Programming Description Troubleshooting Make sure the D2D harness is connected and that 12 Volt is present between the red and black wires. If Module has no power. - Page 17 Active Ground When Running (Status) Description Troubleshooting Ground When Running (Status) command The module has initialized the remote start sequence. received. Flashes green Ignition ON command received. The module has received the Ignition ON command and is processing the remote start sequence. Flashes red &...
-
Page 18: Soft Reset
Soft reset A module reset will only erase the steps perfomed in “Module programming”. The firmware and settings flashed to the module will not be affected. D2D installation Connect the 10-pin, 12-pin & 14-pin harnesses to the module. Press and hold the programming button, then connect the 4-pin D2D harness. -
Page 19: Feature Programming
Feature programming To enter feature programming routine: 1. Turn the ignition ON, then OFF. 2. Within 5 seconds, press and hold the programming button until the LED turns ON orange (after 3 seconds). 3. Release the Programming button. 4. The LED will flash green once slowly to indicate the feature number is 1. After a short delay, the LED flashes red rapidly to indicate the current option of feature 1 (e.g. -
Page 20: Feature And Option List
Feature and option list It is recommended to configure all the features and options listed below using the configuration tool found on the module flashing page at www.directechs.com. The web offers more options; however, manual configuration of the features is possible using the information on this page. -
Page 21: Limited One Year Consumer Warranty
Limited 12 Months Consumer Warranty VOXX DEI LLC (the Company) warrants to the original purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product, (at the Company’s option) without charge for parts or repair labor. -
Page 22: Quick Reference Guide (Customer Copy)
3 possible ways you can send commands to your vehicle, using the: in Park (P). • Factory remote. • Aftermarket remote. Press the Remote Start button on the transmitter.* • Directed SmartStart application via your smartphone. & Parking lights The parking lights will flash once to indicate the vehicle is Press... - Page 23 Notes 403.GM10 4.27 2016 Buick Verano ©2022 VOXX•DEI LLC. All rights reserved.
