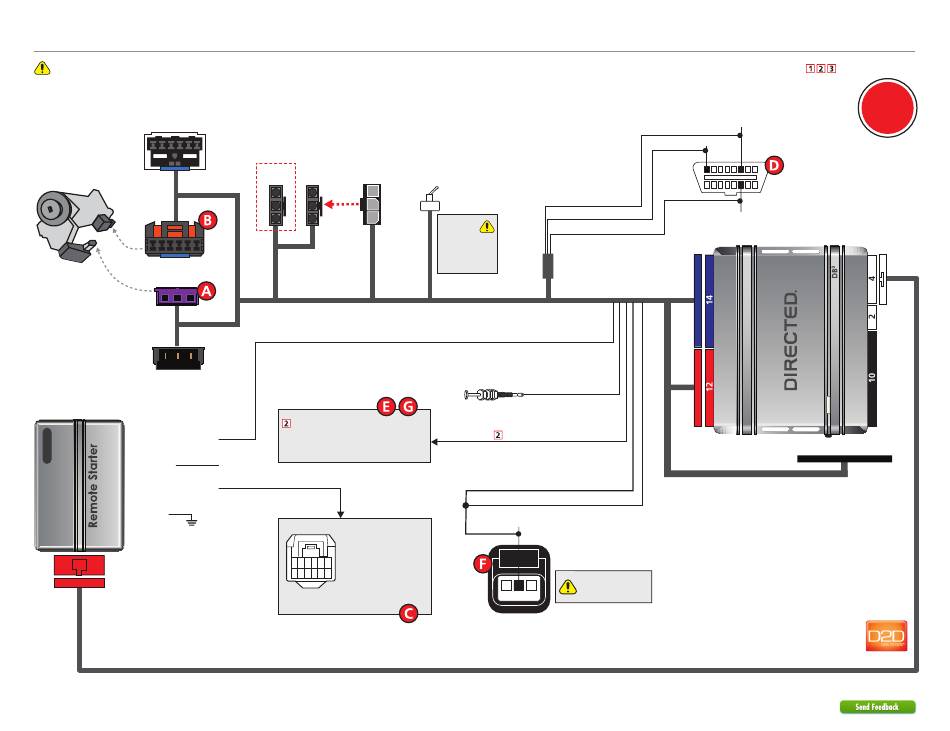

Wiring diagram with T-Harness (THGMD1 Rev. 3)
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Ignition Switch
(black or white connector)
Ignition Barrel
To
Immobilizer Control Module
(violet connector
under ignition switch)
Away from
Immobilizer Control Module
(vehicle side)
(+) Ignition Input/Output
(+) 12V Input
(-) Parking Lights Output
(-) Ground
D2D Port
7 403.GM10 4.27 2016 Buick Verano
©2022 VOXX•DEI LLC. All rights reserved.
NOT USED
Type 2 Type 1
THGMD1 Rev. 3 (Optional T-Harness)
(-) Driver's Door Trigger
Refer to the Vehicle connections section
for the corresponding connector, pin
and wire color of your vehicle.
(+) 12V
(-) Parking Lights: Pin 3, 5 or 7
Refer to the
Vehicle connections
section for the
corresponding
1 2 3 4 5 6
connector, pin and
7 8 9 10 11 12
wire color of your
vehicle.
Headlight Switch
(black 12-pin connector)
Remote Start Safety
Override Switch
HS CAN High: Tan/Black
SW CAN: Lt. Green
The Remote
HS CAN Low: Tan
Start Safety
Override
Switch MUST
be in the ON
position.
(+) Ignition Input: Pink
Note: The Hood Pin is only required on vehicles
that are not equipped with a factory hood pin.
Hood: White/Black
Hood Pin
(-) RAP Off Output: Green/Black
(MUX) Clutch Output: Violet/Green
(MUX) Clutch Output: Violet/Brown
Clutch: Yellow, pin B
ONLY required for
A B C
manual transmission
applications.
Clutch Switch
(black 3-pin connector)
OBDII Diagnostic
(connector side view)
HS CAN High: Pin 6
SW CAN: Pin 1
1 8
9 16
HS CAN Low: Pin 14
Do not connect
).
D2D
only
XKD2D65
