6-5. Inspection of the touch panel

* Make sure that the OS (Windows XP, 2000) is installed on the computer before performing
the diagnostic program.
* Download the diagnostic program from the latest service CD.
Diagnostic Program: TestTP.exe
Perform the touch panel inspection.

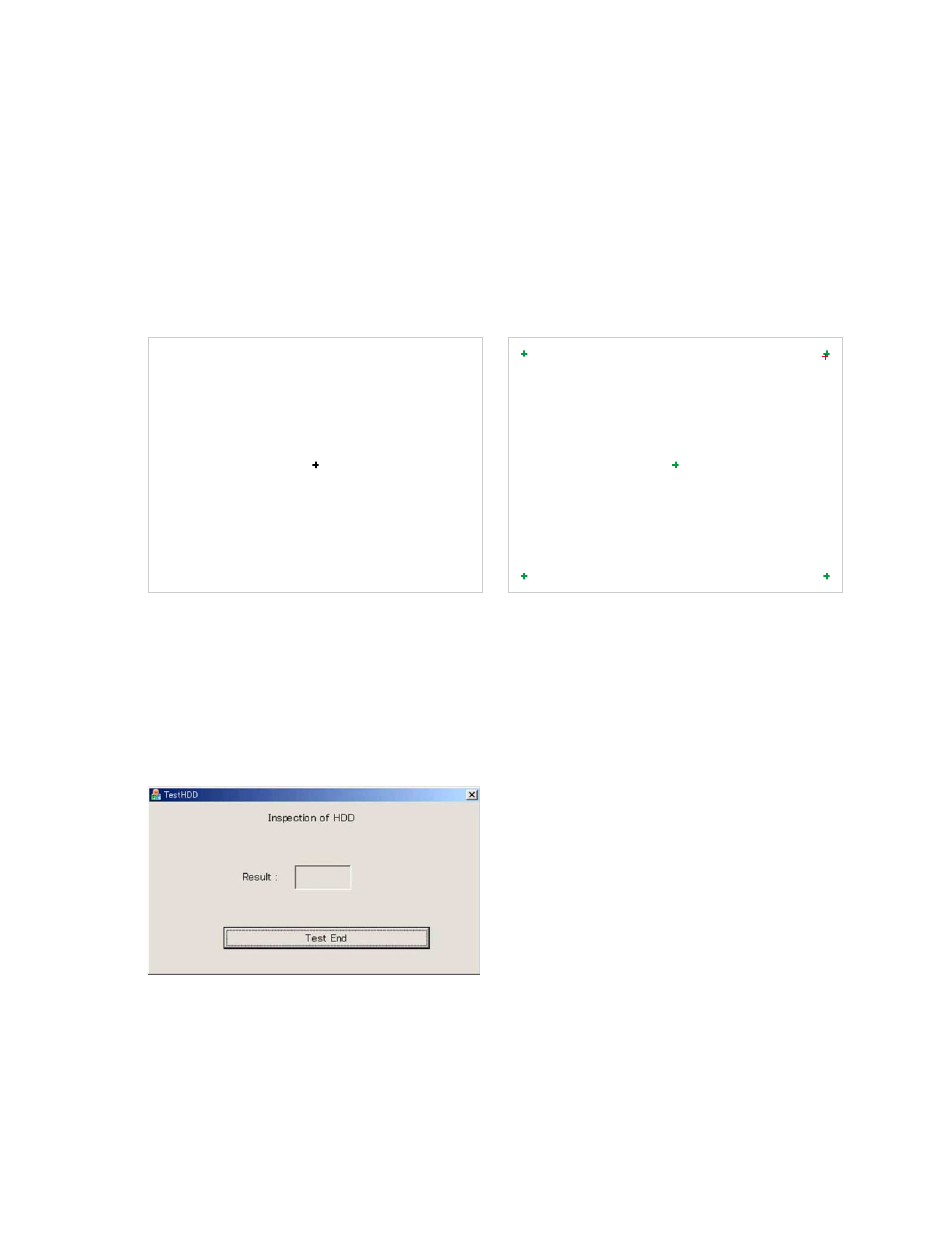

Touch the center of the five marks which appear in the screen without fail.
After the first mark (in the initial screen) is inputted, five green marks appear (as shown in the
touched screen). A mark which should be inputted next turns black. If correctly inputted, a mark turns
blue. If not, a mark turns red.
Note: Make sure to touch the center of the marks.
Initial screen
Please touch it at the center of a mark

6-6. Inspection of HDD

* Make sure that the OS (Windows XP, 2000) is installed on the computer before performing
the diagnostic program.
* Download the diagnostic program from the latest service CD.
Diagnostic Program: TestHDD.exe
After HDD inspection, "OK" appears if the result is OK, and "NG" appears if not.
Touched screen
Please touch it at the center of a mark
— 50 —
