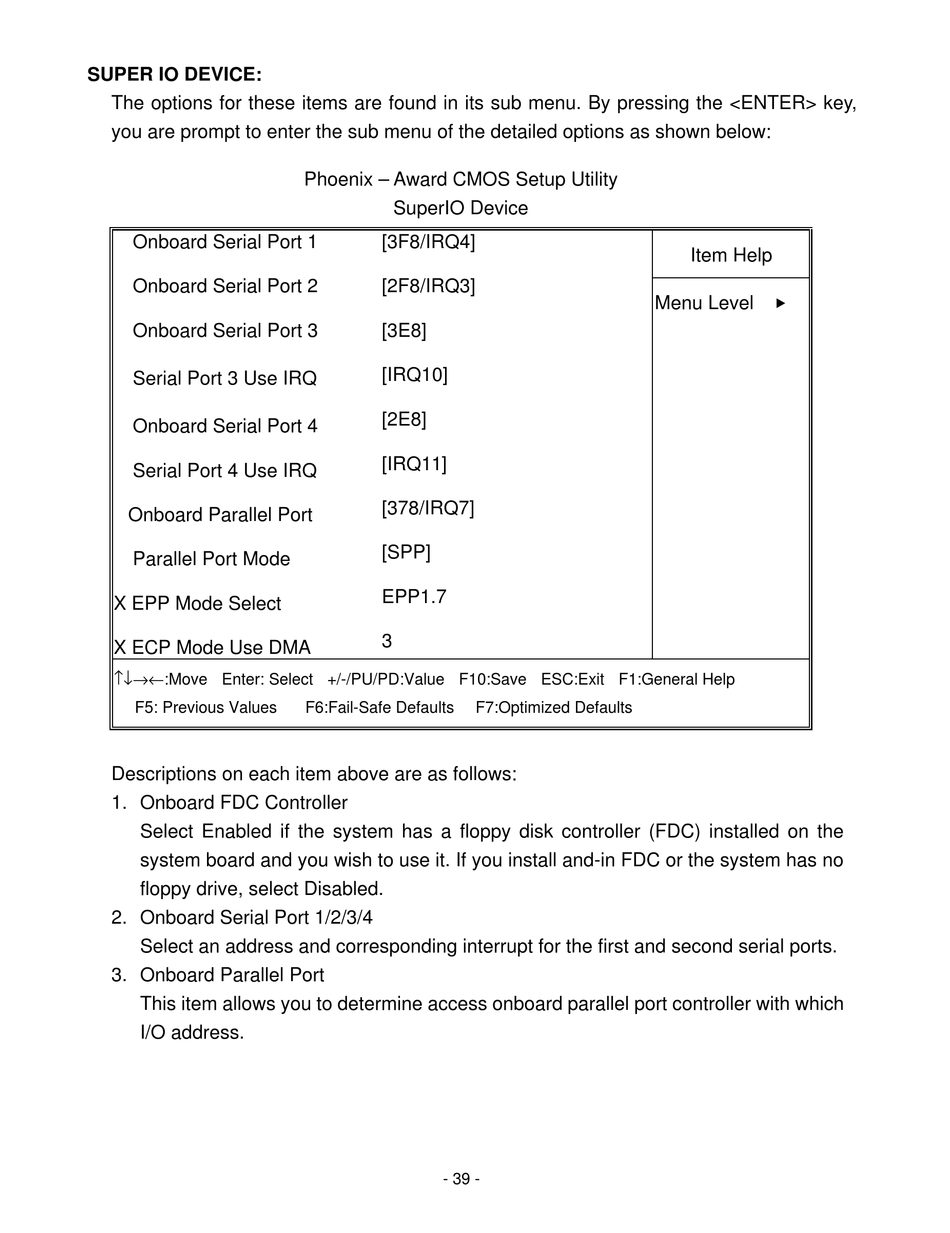

SUPER IO DEVICE:
The options for these items are found in its sub menu. By pressing the <ENTER> key,
you are prompt to enter the sub menu of the detailed options as shown below:
Onboard Serial Port 1
Onboard Serial Port 2
Onboard Serial Port 3
Serial Port 3 Use IRQ
Onboard Serial Port 4
Serial Port 4 Use IRQ
Onboard Parallel Port
Parallel Port Mode
X EPP Mode Select
X ECP Mode Use DMA
↑↓→←:Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values
Descriptions on each item above are as follows:
1. Onboard FDC Controller
Select Enabled if the system has a floppy disk controller (FDC) installed on the
system board and you wish to use it. If you install and-in FDC or the system has no
floppy drive, select Disabled.
2. Onboard Serial Port 1/2/3/4
Select an address and corresponding interrupt for the first and second serial ports.
3. Onboard Parallel Port
This item allows you to determine access onboard parallel port controller with which
I/O address.
