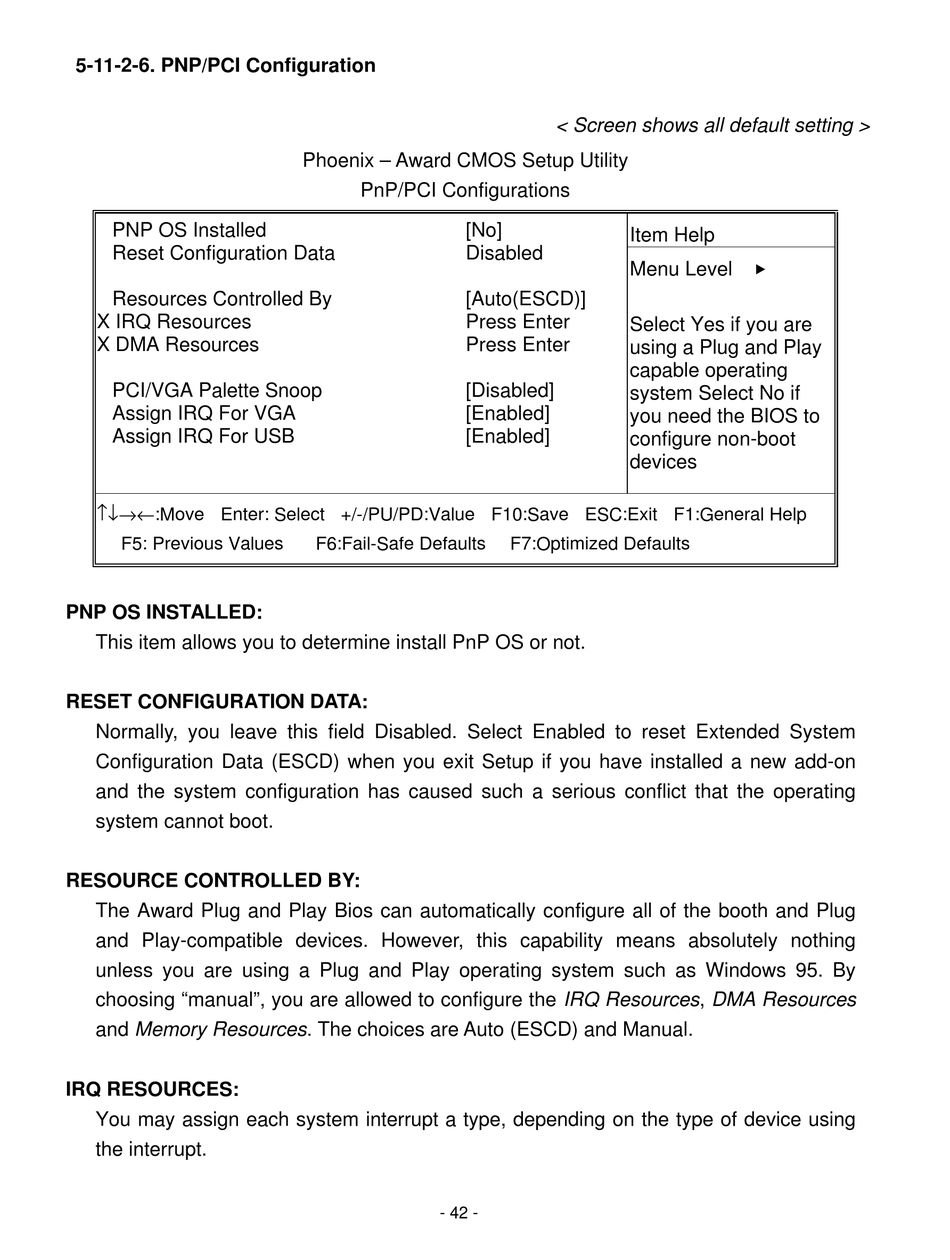

5-11-2-6. PNP/PCI Configuration
PNP OS Installed
Reset Configuration Data
Resources Controlled By
X IRQ Resources
X DMA Resources
PCI/VGA Palette Snoop
Assign IRQ For VGA
Assign IRQ For USB
↑↓→←:Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values
PNP OS INSTALLED:
This item allows you to determine install PnP OS or not.
RESET CONFIGURATION DATA:
Normally, you leave this field Disabled. Select Enabled to reset Extended System
Configuration Data (ESCD) when you exit Setup if you have installed a new add-on
and the system configuration has caused such a serious conflict that the operating
system cannot boot.
RESOURCE CONTROLLED BY:
The Award Plug and Play Bios can automatically configure all of the booth and Plug
and Play-compatible devices. However, this capability means absolutely nothing
unless you are using a Plug and Play operating system such as Windows 95. By
choosing "manual", you are allowed to configure the IRQ Resources, DMA Resources
and Memory Resources. The choices are Auto (ESCD) and Manual.
IRQ RESOURCES:
You may assign each system interrupt a type, depending on the type of device using
the interrupt.
Phoenix – Award CMOS Setup Utility
PnP/PCI Configurations
[No]
Disabled
[Auto(ESCD)]
Press Enter
Press Enter
[Disabled]
[Enabled]
[Enabled]
F6:Fail-Safe Defaults
- 42 -
< Screen shows all default setting >
Item Help
Menu Level
Select Yes if you are
using a Plug and Play
capable operating
system Select No if
you need the BIOS to
configure non-boot
devices
F7:Optimized Defaults
„
