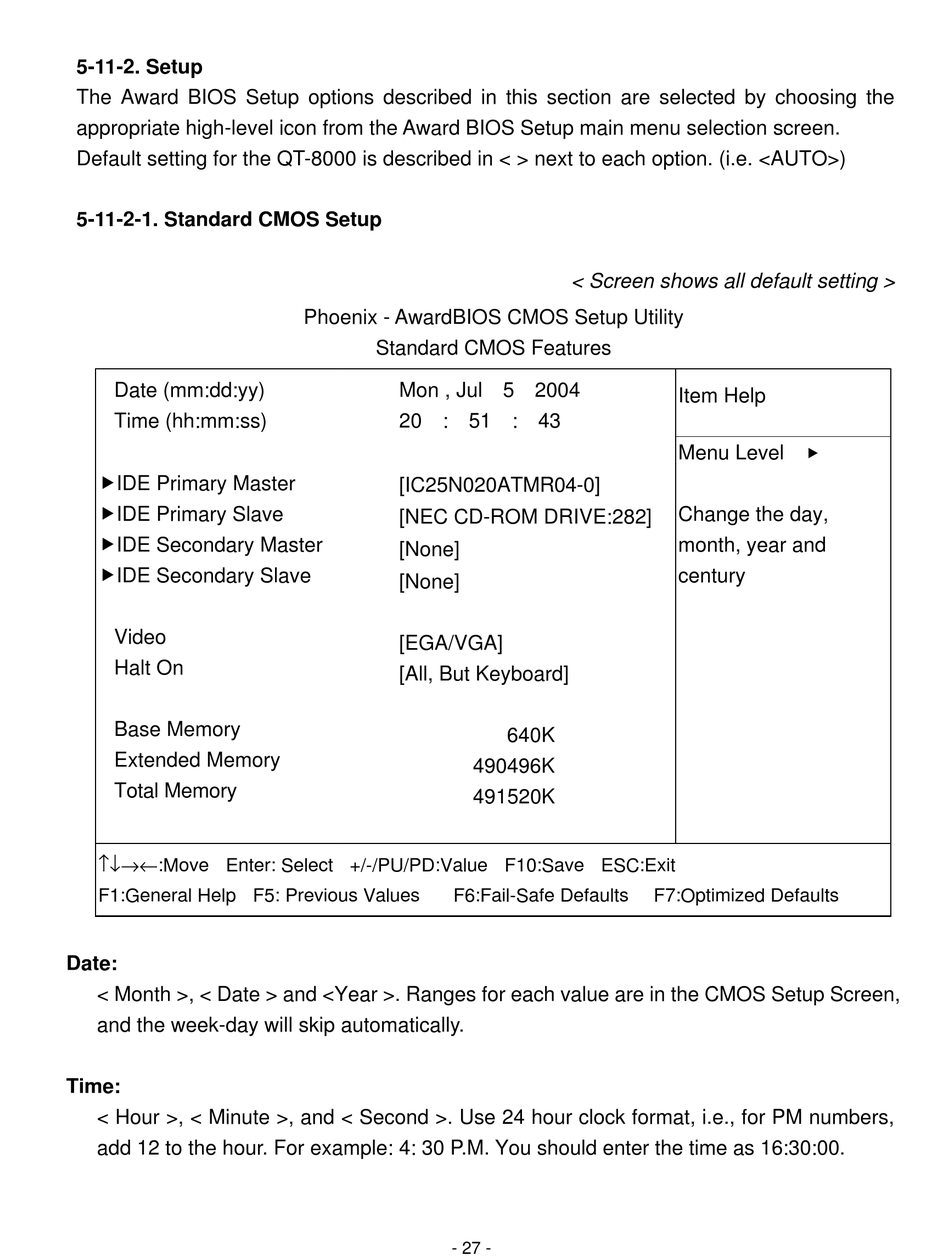

Casio QT-8000 Service Manual page 29

5-11-2. Setup
The Award BIOS Setup options described in this section are selected by choosing the
appropriate high-level icon from the Award BIOS Setup main menu selection screen.
Default setting for the QT-8000 is described in < > next to each option. (i.e. <AUTO>)
5-11-2-1. Standard CMOS Setup
Date (mm:dd:yy)
Time (hh:mm:ss)
„IDE Primary Master
„IDE Primary Slave
„IDE Secondary Master
„IDE Secondary Slave
Video
Halt On
Base Memory
Extended Memory
Total Memory
↑↓→←:Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit
F1:General Help F5: Previous Values
Date:
< Month >, < Date > and <Year >. Ranges for each value are in the CMOS Setup Screen,
and the week-day will skip automatically.
Time:
< Hour >, < Minute >, and < Second >. Use 24 hour clock format, i.e., for PM numbers,
add 12 to the hour. For example: 4: 30 P.M. You should enter the time as 16:30:00.
Phoenix - AwardBIOS CMOS Setup Utility
Standard CMOS Features
Mon , Jul 5 2004
20 : 51 : 43
[IC25N020ATMR04-0]
[NEC CD-ROM DRIVE:282]
[None]
[None]
[EGA/VGA]
[All, But Keyboard]
490496K
491520K
F6:Fail-Safe Defaults
- 27 -
< Screen shows all default setting >
Item Help
Menu Level
Change the day,
month, year and
century
640K
F7:Optimized Defaults
„
