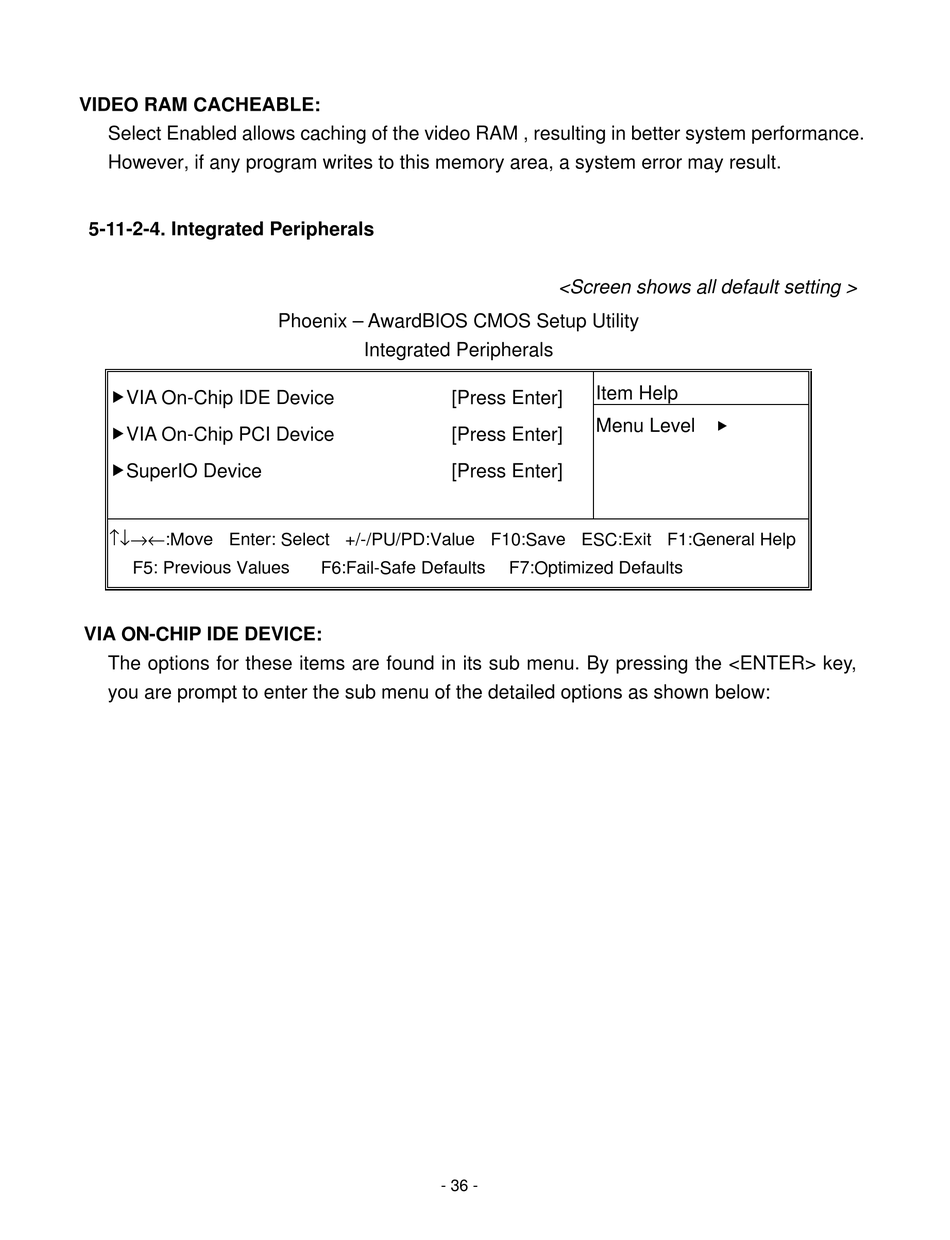

Casio QT-8000 Service Manual page 38

VIDEO RAM CACHEABLE:
Select Enabled allows caching of the video RAM , resulting in better system performance.
However, if any program writes to this memory area, a system error may result.
5-11-2-4. Integrated Peripherals
„VIA On-Chip IDE Device
„VIA On-Chip PCI Device
„SuperIO Device
↑↓→←:Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values
VIA ON-CHIP IDE DEVICE:
The options for these items are found in its sub menu. By pressing the <ENTER> key,
you are prompt to enter the sub menu of the detailed options as shown below:
Phoenix – AwardBIOS CMOS Setup Utility
Integrated Peripherals
F6:Fail-Safe Defaults
- 36 -
<Screen shows all default setting >
Item Help
[Press Enter]
Menu Level
[Press Enter]
[Press Enter]
F7:Optimized Defaults
„
