6. DIAGNOSTIC OPERATION
6-1. Inspection of a LAN
* Make sure that the OS (Windows XP, 2000) is installed on the computer before performing
the diagnostic program.
* Download the diagnostic program from the latest service CD.
Diagnostic Program: TestLANSv.exe, TestLAN.exe

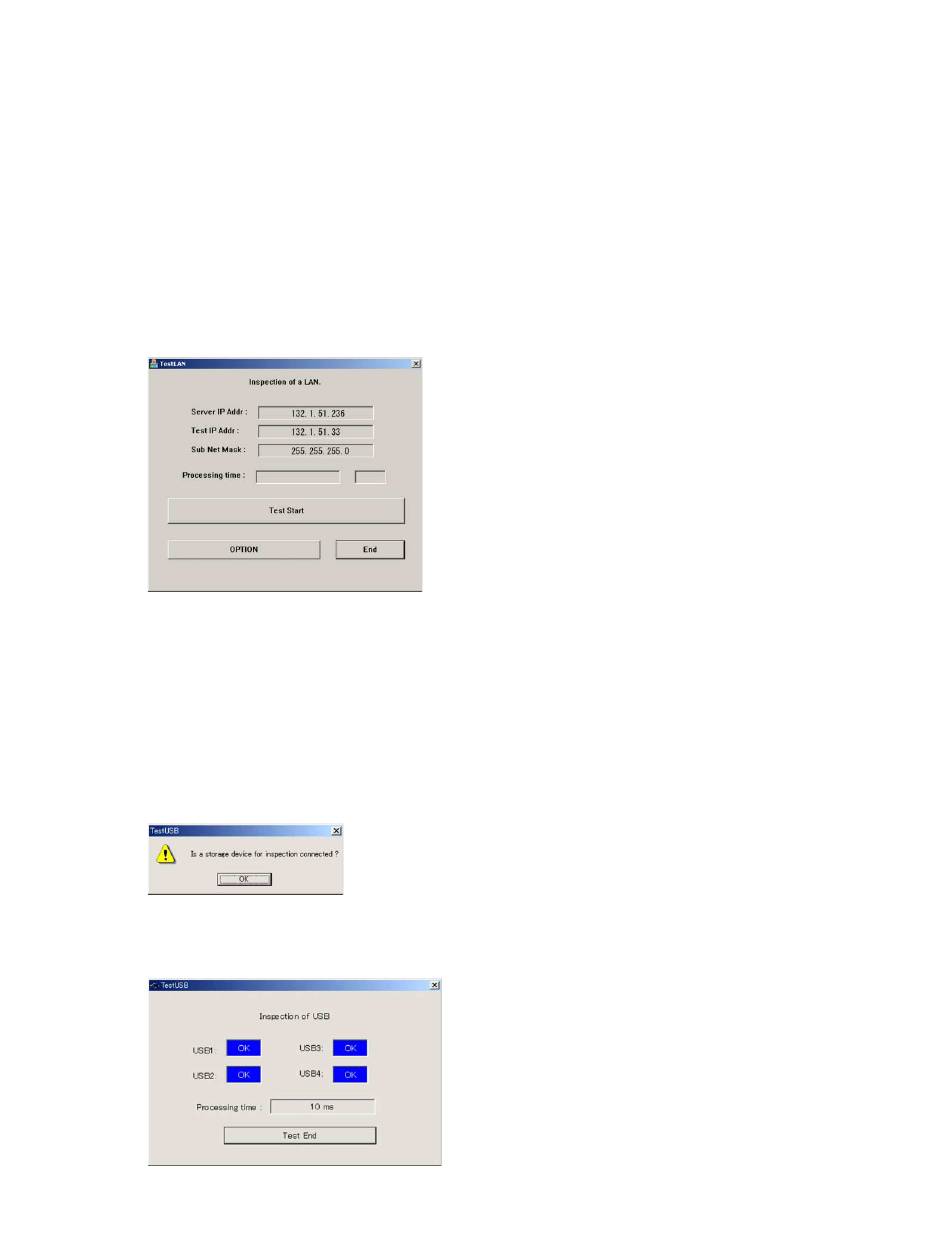

Perform the inspection of a LAN port.
IP address setting is automatically performed when this inspection is booted.
Start the inspection as the TestStart button becomes effective upon completion of the IP address setting.
If the LAN port is normal, "OK" appears. If not, "NG" appears.
The duration of the inspection also appears. (Check the performance of 100Base-T.)
Note: Install the inspection program on the counter machine separately as "TestLANsv.exe.".
6-2. Inspection of USB
* Make sure that the OS (Windows XP, 2000) is installed on the computer before performing
the diagnostic program.
* Download the diagnostic program from the latest service CD.
Diagnostic Program: TestUSB.exe
Connect the inspection USB-FDD and the USB storage to the (four) USB ports respectively in
advance.
Before inspection, the below pop-up appears asking if the storage device has been connected.
If "OK" is clicked, the inspection starts.
After each USB port inspection, "OK" appears if the result is OK, and "NG" appears if not.
The duration of the inspection also appears. (Check the performance of USB2.0.)
— 48 —
