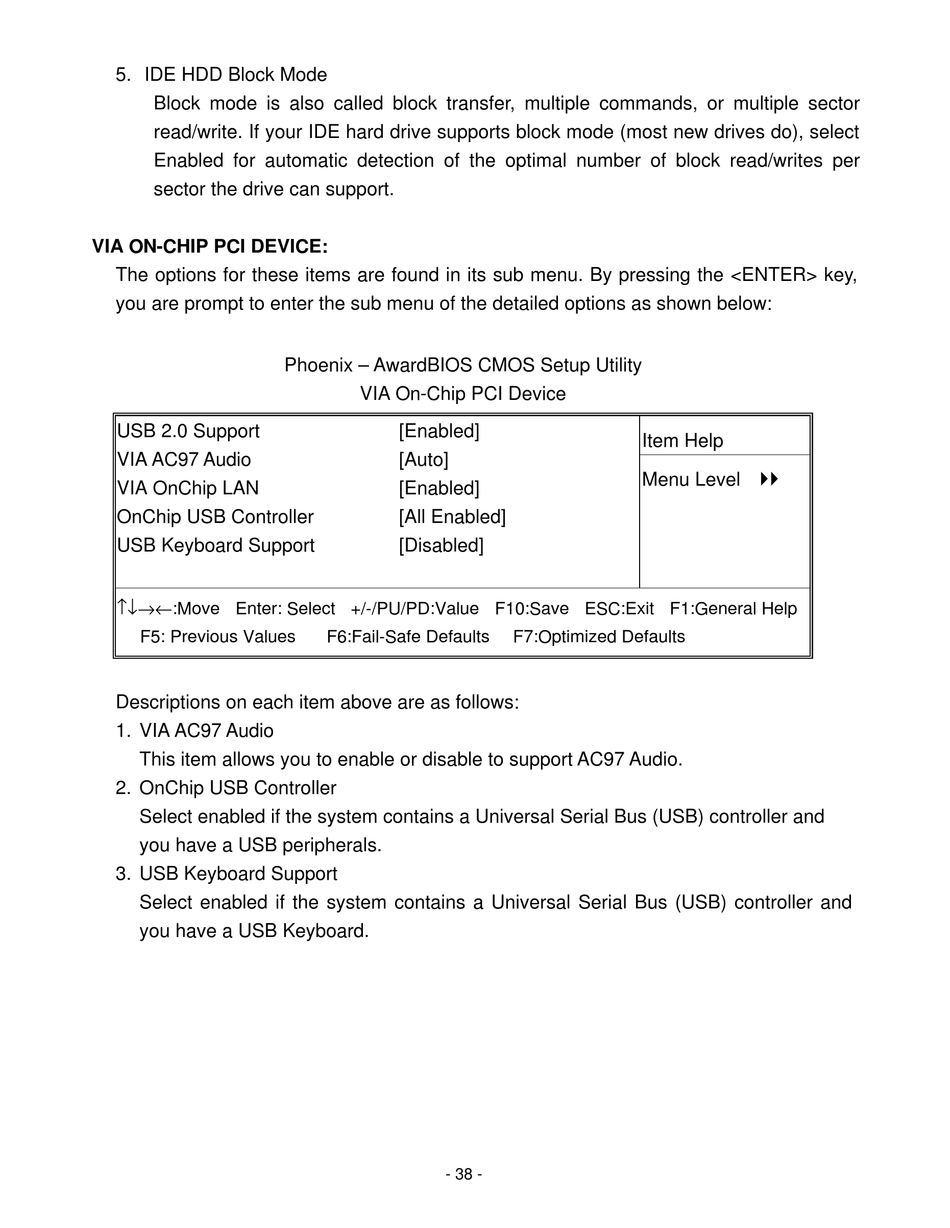

5. IDE HDD Block Mode
Block mode is also called block transfer, multiple commands, or multiple sector
read/write. If your IDE hard drive supports block mode (most new drives do), select
Enabled for automatic detection of the optimal number of block read/writes per
sector the drive can support.
VIA ON-CHIP PCI DEVICE:
The options for these items are found in its sub menu. By pressing the <ENTER> key,
you are prompt to enter the sub menu of the detailed options as shown below:
USB 2.0 Support
VIA AC97 Audio
VIA OnChip LAN
OnChip USB Controller
USB Keyboard Support
↑↓→←:Move Enter: Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values
Descriptions on each item above are as follows:
1. VIA AC97 Audio
This item allows you to enable or disable to support AC97 Audio.
2. OnChip USB Controller
Select enabled if the system contains a Universal Serial Bus (USB) controller and
you have a USB peripherals.
3. USB Keyboard Support
Select enabled if the system contains a Universal Serial Bus (USB) controller and
you have a USB Keyboard.
Phoenix – AwardBIOS CMOS Setup Utility
VIA On-Chip PCI Device
[Enabled]
[Auto]
[Enabled]
[All Enabled]
[Disabled]
F6:Fail-Safe Defaults
- 38 -
Item Help
Menu Level }}
F7:Optimized Defaults
