4-2. Installing the LONG POLE

It is possible to attach the long pole in QT-6060D.
Please arrange the following parts at your side when you need them.
Status in 4).
Attachment parts (arranged by dealers)
LONG-POLE (arranged by dealers)
1) Turn the QT-6060D over.
2) Remove four pan-head screws which are
fixed in STD-POLE.
(This separates DP/STAND ASSY.)
3) Remove four tapping screws to remove the
chas-sis from the STAND ASSY.
4) Fix STD-POLE and ROTARY-SHAFT to
DP-ASSY with four pan-head screws.
5) Fix the part arranged by dealers.

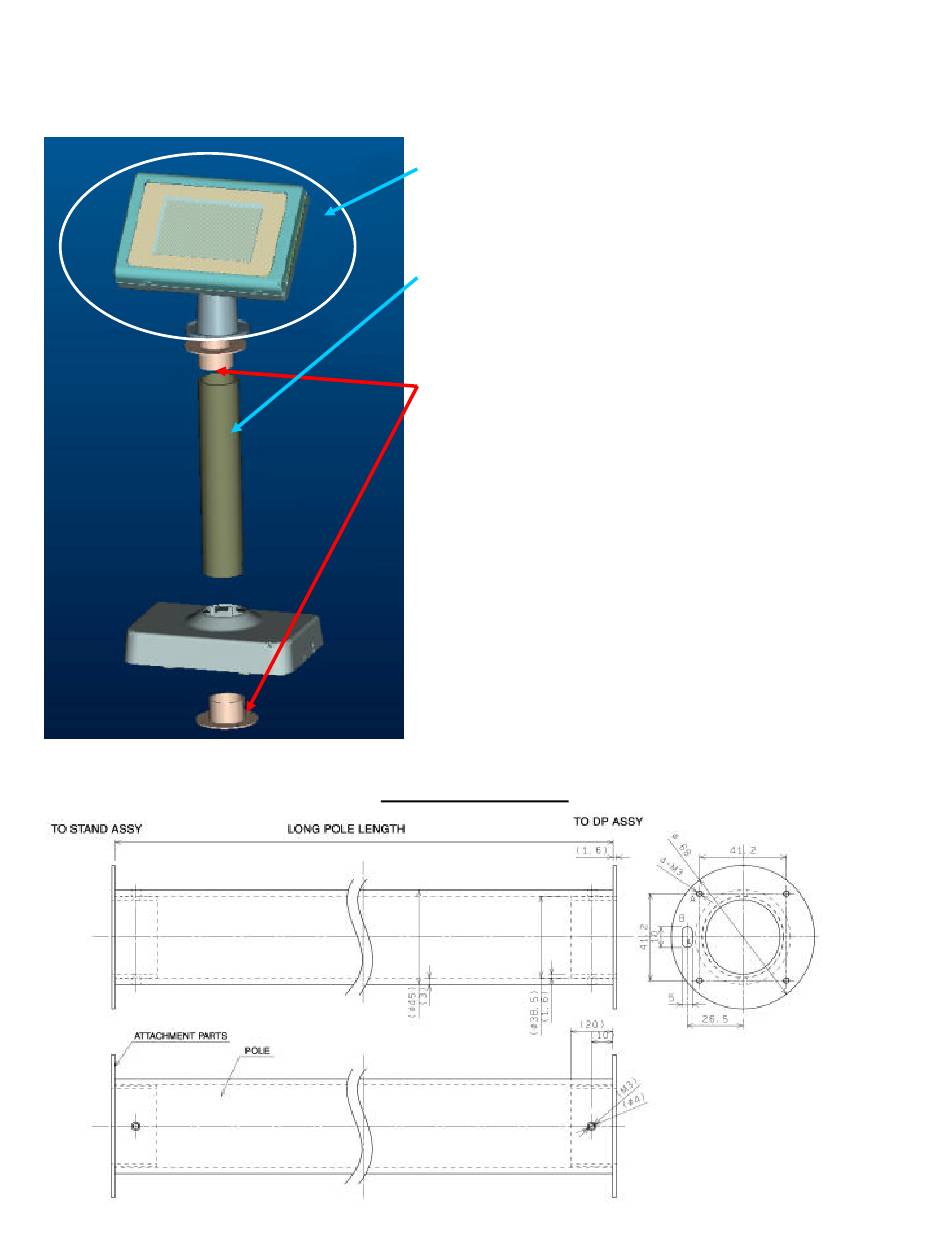

Reference Drawing
- 22 -
