Panel Con - EUROCOM M375E Service Manual

Panel CON

+3VS
+3VS 3,8,10,11,12,13,15,16,17,18,20,21,25,27,28,31,32,33,35,37

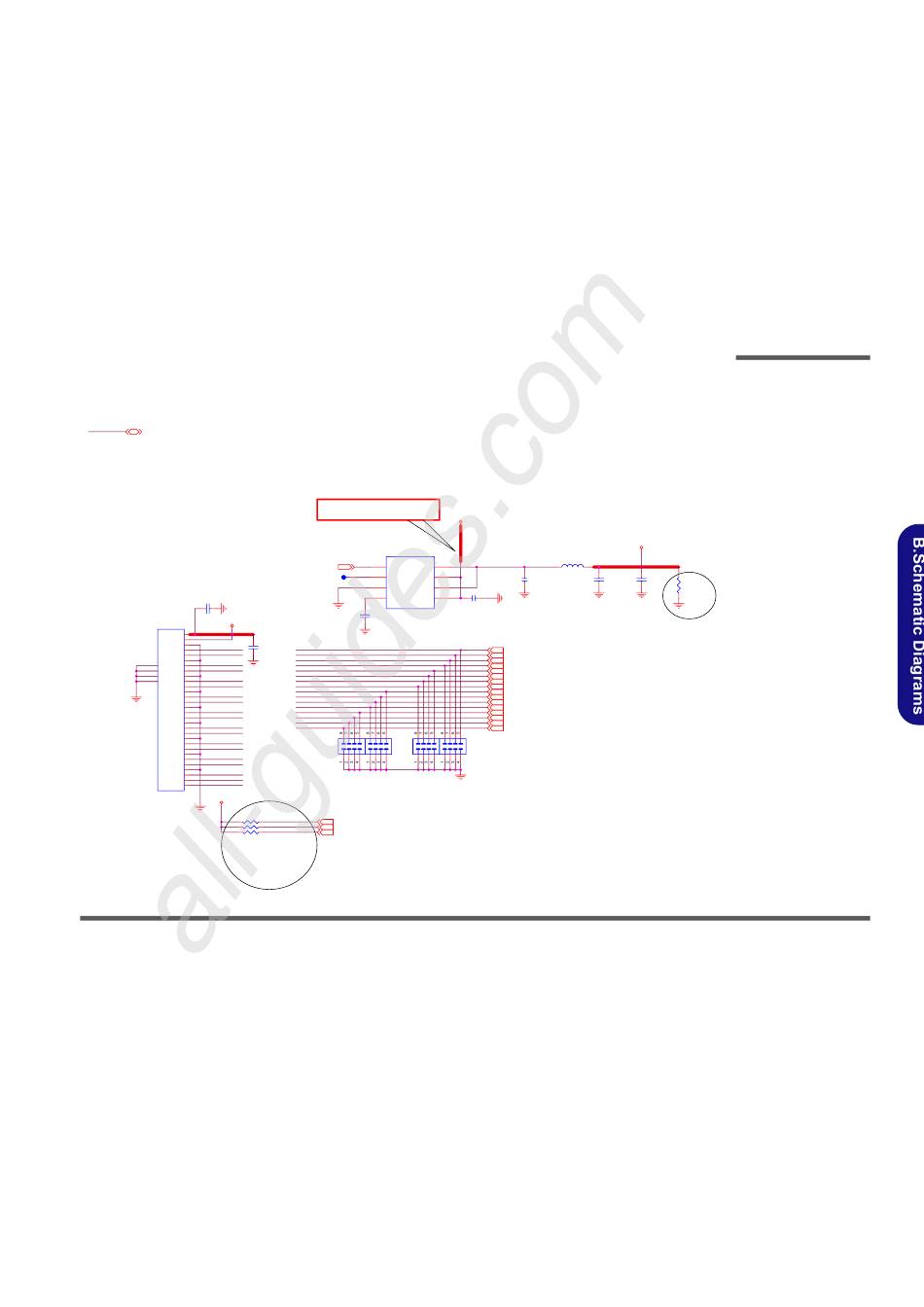

PANEL CONNECTOR
C555
.1u(0402)
LCDVCC
JLCD1
80 MILS
30
29
28
LVDS_TXL0N
27
LVDS_TXL0P
26
25
GND4 LVDS_TXL1N
GND 24
GND3 LVDS_TXL1P
GND 23
GND2
GND 22
GND1 LVDS_TXL2N
GND 21
LVDS_TXL2P
20
19
LVDS_TXLCKN
18
LVDS_TXLCKP
17
16
LVDS_TXU0N
15
LVDS_TXU0P
14
13
LVDS_TXU1N
12
LVDS_TXU1P
11
10
LVDS_TXU2N
9
LVDS_TXU2P
8
7
LVDS_TXUCKN
6
LVDS_TXUCKP
5
4
PANEL_ID0
3
PANEL_ID1
2
PANEL_ID2
1
CON30 +3VS
PIN GND1,2,3,4=GND
R546
R547
R548
DEL RP41(8P4RX4.7K)
All manuals and user guides at all-guides.com
+3VS Power trace >= 80mil
U36
1
25 ENAVDD CTL OUT
Z2901
2
FLG IN
3
GND OUT
Z2902 4
GATE IN
C562 MIC2505
1000PF(0402)
LVDS_TXL0N
C577
LVDS_TXL0P
150U/6.3V_D
LVDS_TXL1N
LVDS_TXL1P
LVDS_TXL2N
LVDS_TXL2P
LVDS_TXLCKN
LVDS_TXLCKP
LVDS_TXU0N
LVDS_TXU0P
LVDS_TXU1N
LVDS_TXU1P
LVDS_TXU2N
LVDS_TXU2P
LVDS_TXUCKN
LVDS_TXUCKP
92/03/03
CP5 CP4 CP3
8P4C_10P 8P4C_10P 8P4C_10P
4.7K PANEL_ID0
PANEL_ID0 25
4.7K PANEL_ID1
PANEL_ID1 25
4.7K PANEL_ID2
PANEL_ID2 25
1/6
+3VS
CLOSED TO JLCD1
80 MILS
L57
L_1206 80 MILS
8 Z2903 1 2
7 C557
C559
6 .1u(0402) 4.7U(0805)
5
C581 .1u(0402)
LVDS_TXL0N 25 LVDS-L0N
LVDS_TXL0P 25 LVDS-L0P
LVDS_TXL1N 25
LVDS-L1N
LVDS_TXL1P 25 LVDS-L1P
LVDS_TXL2N 25 LVDS-L2N
LVDS_TXL2P 25 LVDS-L2P
LVDS_TXLCKN 25 LVDS-LCLKN
LVDS_TXLCKP 25 LVDS-LCLKP
LVDS_TXU0N 25
LVDS-U0N
LVDS_TXU0P 25 LVDS-U0P
LVDS_TXU1N 25
LVDS-U1N
LVDS_TXU1P 25
LVDS-U1P
LVDS_TXU2N 25 LVDS-U2N
LVDS_TXU2P 25
LVDS-U2P
LVDS_TXUCKN 25
LVDS-UCLKN
LVDS_TXUCKP 25 LVDS-UCLKP
CP2
8P4C_10P
Schematic Diagrams
LCDVCC
Sheet 28 of 36
C553
R364
Panel CON
.1u(0402)
1K(0402)
1/6
Panel CON B - 29
