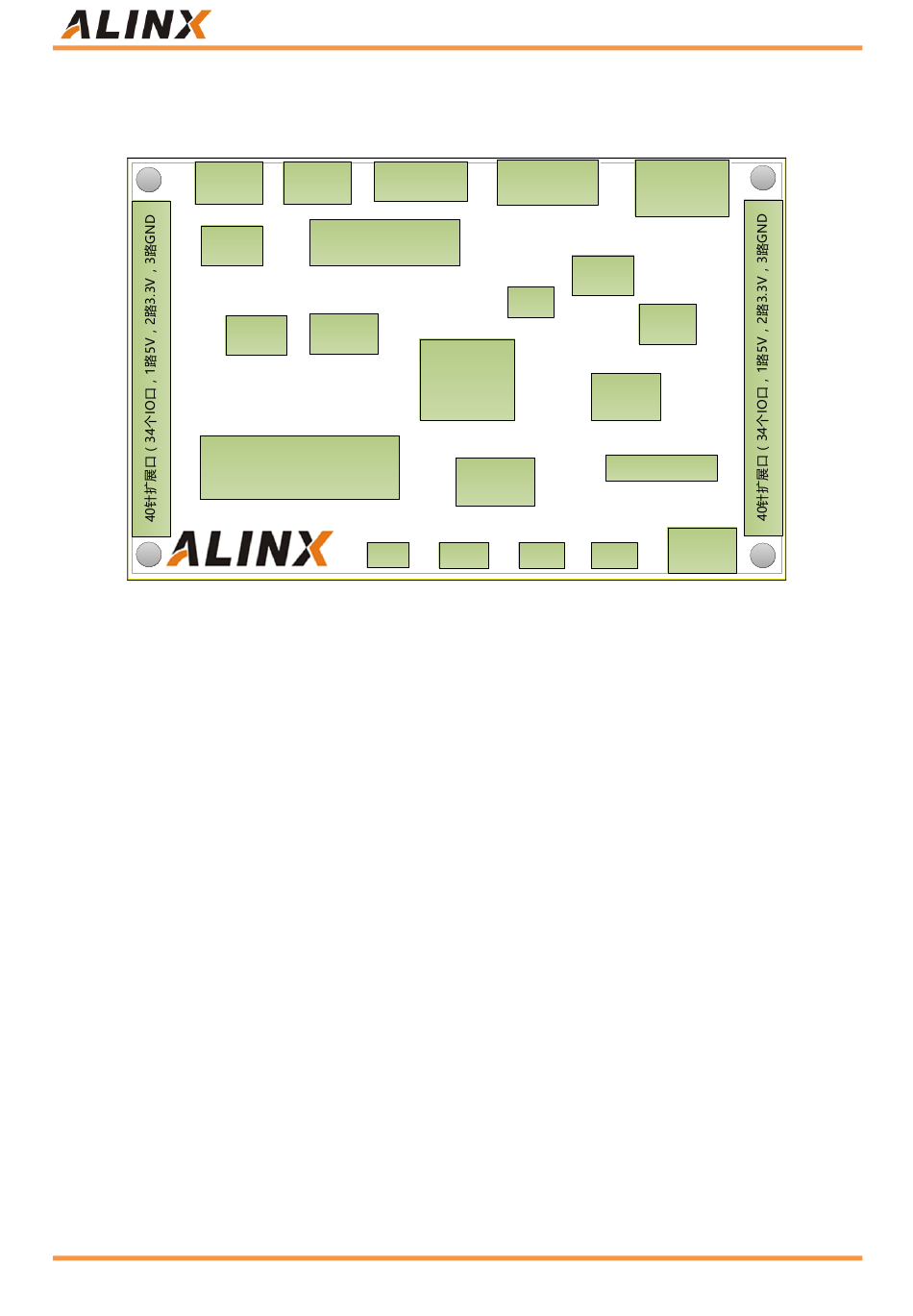

The structure of the entire system is shown in Figure 1-1.
USB供电接
口及串口
CP2102
Through this diagram, we can see the functions that this development platform can achieve.
- USB interface power supply, while USB to serial port function.
- 1 large-capacity 256Mbit SDRAM, which can be used as data cache.
- 1 16Mbit SPI FLASH that can be used to store FPGA configuration files and user data;
- 1 camera interface, can connect OV5640 camera.
- 1 VGA port, 16-bit VGA port, can display 65536 colors, can display color pictures and
other information.
- 1 RTC real-time clock with battery holder, battery model CR1220.
- 1 piece IIC interface EEPROM 24LC04.
- 4 red LEDs for water flow function.
- 4 buttons, a reset button, 3 user buttons.
- 50M crystal oscillator to provide a stable clock source to the development board.
- Two 40-pin black gold standard AX expansion ports (2.54mm pitch), of which 34 IO ports,
1 5V power supply, 2 3.3V power supplies, 3 GND. Two expansion modules can be
connected at the same time, such as 4.3-inch TFT module and AD/DA module.
- The JTAG port is reserved for debugging and solidifying the FPGA.
- 1 Micro SD slot with SPI mode support.
- A 6-bit digital tube, 6-digit dynamic display.

2. Power

The AX301 development board is powered by USB, and the MINI USB cable is used to
connect the development board with the USB of the computer. Pressing the power switch
will not only supply power to the development board. The power supply design Figure 2-1
on the development board is as follows:
6 / 23
Http://www.alinx.com.cn
电源
JTAG口
开关
2路电源转换芯片
实时时钟
电池座
6位数码管
复位键
摄像头
接口
16Mbit
FLASH
50M
晶振
FPGA
EP4CE6
256Mbit
SDRAM
按键1 按键2
Figure 1-1
AX301 User Manual
VGA接口
EEPROM
24LC04
蜂鸣器
4个用户LED灯
Micro
按键3
SD卡座
