Chapter 4 Operations
4.6

Auto Sampler

Auto Sample Changer (ASC) such as DRS-8010ASC, ASC-8000T, Auto Sample Switcher must be connected
to IRAffinity-1 before turning ON.
NOTE
The Auto sample changer connector is an optional extra.
4.6.1

Installation and Setting Up

1. Shut down your PC and FTIR.
2. Place your ASC on the FTIR sample compartment.
3. Connect the ASC cable of the accessory to the ASC port in the Sample compartment.
4. Turn on the FTIR.
5. Turn on the PC, and then activate the IRsolution software.
6. Select [Measurement]-[Initialize].
NOTE
Energy (power spectrum) check is performed during initialization of IRAffinity-1. When an
accessory interrupts IR beam, the check may be faulty.
7. Select [Measurement]-[Auto Sampler]. The [Sampler] dialog box is displayed.
8. Select either "ASC-A".
9. Select your accessory on the "Accessory" section. Selecting following accessory sets up
"Maximum" and "Pulse No." automatically.
10. Put a check mark on "both", and then click the [Initialize] button to initialize the accessory.
IRAffinity-1
4-8
ASC
ASC-8000T
DRS-8010ASC
Auto Sample Switcher

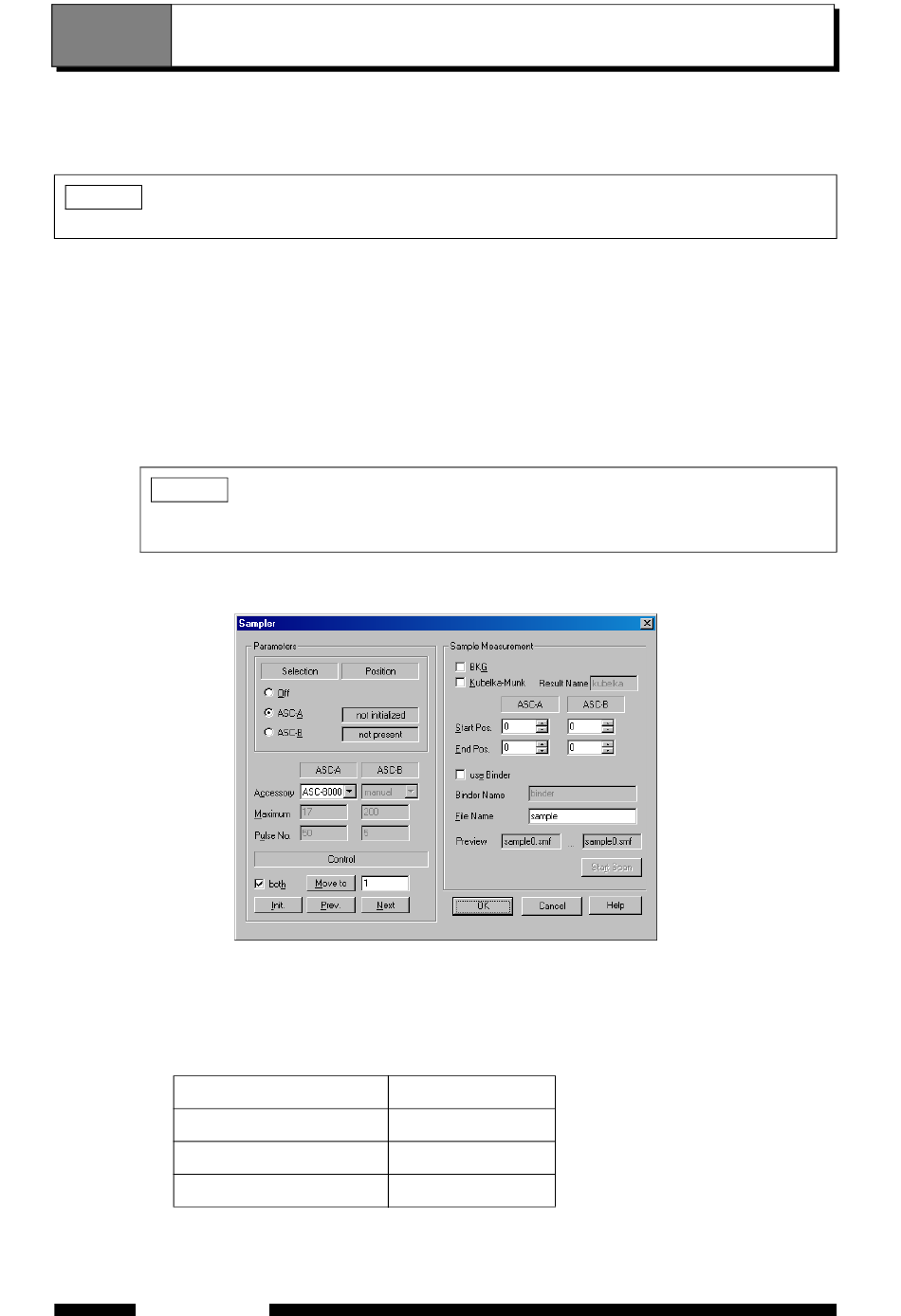

Fig. 4.7 [Sampler]
Accessory
ASC-8000T
DRS-8010
ASS-8000
