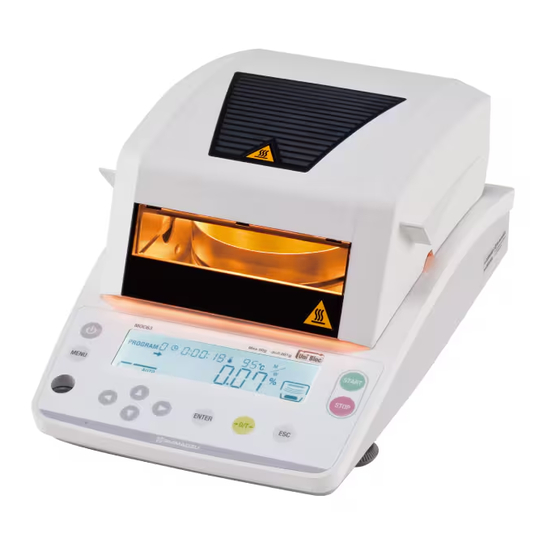

Shimadzu MOC63 Manual

MOC63 Specification

Max 60 g
Capacity
Min 0.02g
0.001g
Minimum readability
0.01/0.1%(Selectable)
0.15% (2g)
Repeatability 0.05%(5g)
0.02%(10g)
Straight type halogen lamp
Drying Heater
Power 400W
Setting temperature 50∼200°C (1°C increments)
range (There is time restriction on more than 180°C.)
Display LCD with Backlight
Pan size Φ95mm
Dimension(W×D×H)mm 200×330×175
Weight Less than 6kg
Operational temperature
5 to 40°C 85%RH or lower
and humidity range

Accessories list

Standard accessories Optional accessories
1 Sample pan 1 Printer EP-80
2 Aluminum sheet 2 Printer EP-90
3 tongs 3 Protection cover(5pieces)
4 In use protection cover 4 Aluminum sheet
5 Fuse 5 Fiberglass sheet
6 Temperature calibration kit
7 Sample pan (SUS)
8 RS-232C cable
9 USB connection cable
10 Heater

Safety Precautions

Read Instruction manual and understand before use of this
instrument.
●Use this instrument for measurements in which water
vaporizes from the sample under heating.
●The temperature of the heater installed in this instrument
becomes higher than the set heating temperature for the
sample.
●Any sample that is explosive, inflammable or may cause
hazardous reaction under heating must not be measured
with this instrument.
Standard mode
(Automatic start/Automatic end/Timed end)
Rapid drying mode
(Automatic start/Automatic end/Timed end)
Measurement mode
Slow drying mode
(Automatic start/Automatic end/Timed end)
Step drying mode
(Automatic start/Automatic end/Timed end)
1-120 minutes or continuousness
Timer setting
(max 12 hours).
RS-232C(9-pin connector)I/O port
Interface
USB (factory option)
Measurement condition
10
data memory
Data memory 50
Temperature calibration kit
Option
