Frame descriptions

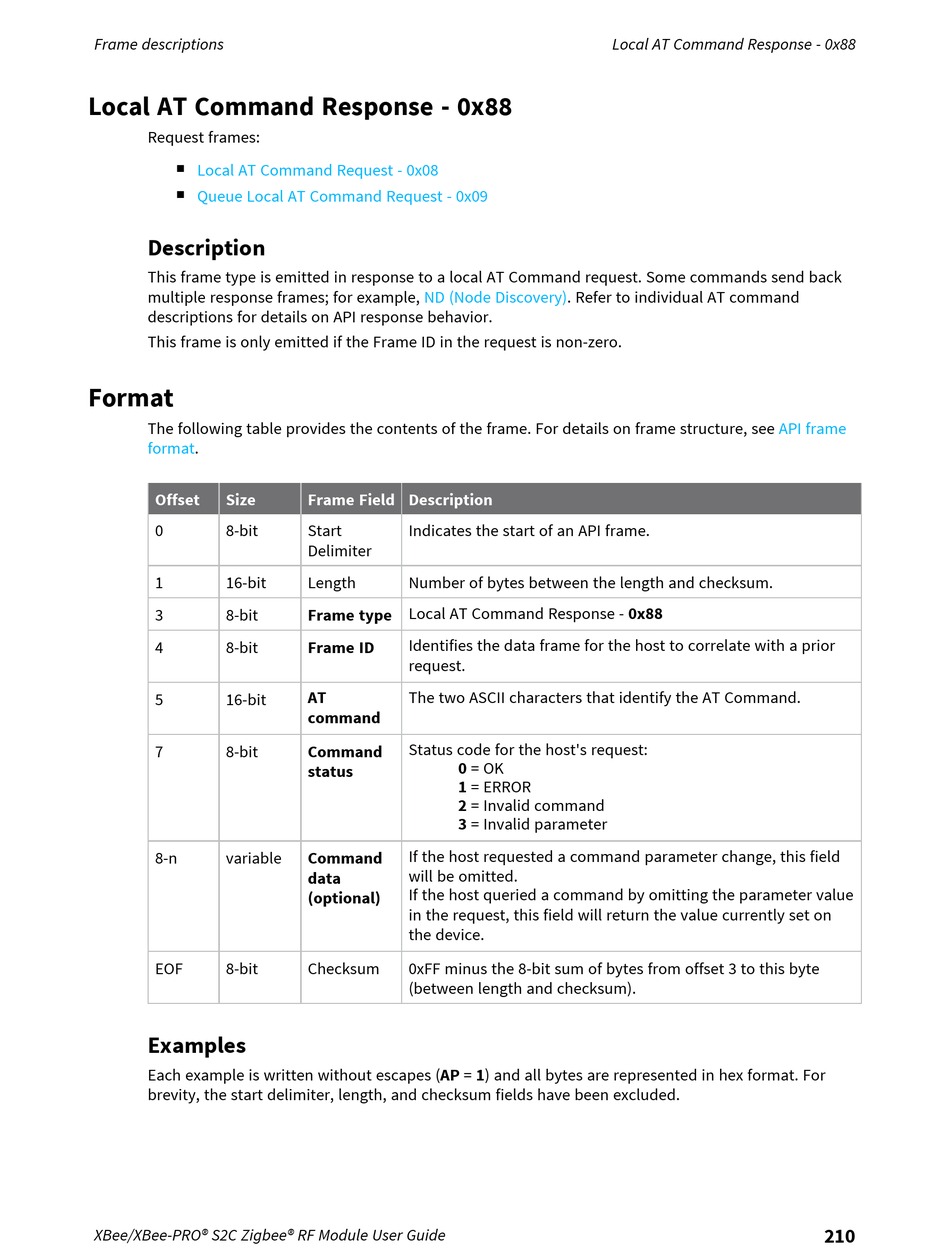

Local AT Command Response - 0x88

Request frames:
Local AT Command Request - 0x08
n
Queue Local AT Command Request - 0x09
n

Description

This frame type is emitted in response to a local AT Command request. Some commands send back
multiple response frames; for example,
descriptions for details on API response behavior.
This frame is only emitted if the Frame ID in the request is non-zero.
Format
The following table provides the contents of the frame. For details on frame structure, see
format.
Offset Size
0 8-bit
1 16-bit
3 8-bit
4 8-bit
5 16-bit
7 8-bit
8-n variable
EOF 8-bit

Examples

Each example is written without escapes (AP = 1) and all bytes are represented in hex format. For
brevity, the start delimiter, length, and checksum fields have been excluded.
XBee/XBee-PRO® S2C Zigbee® RF Module User Guide
ND (Node
Frame Field Description
Start Indicates the start of an API frame.
Delimiter
Length Number of bytes between the length and checksum.
Frame type Local AT Command Response - 0x88
Identifies the data frame for the host to correlate with a prior
Frame ID
request.
AT The two ASCII characters that identify the AT Command.
command
Status code for the host's request:
Command
0 = OK
status
1 = ERROR
2 = Invalid command
3 = Invalid parameter
If the host requested a command parameter change, this field
Command
will be omitted.
data
If the host queried a command by omitting the parameter value
(optional)
in the request, this field will return the value currently set on
the device.
Checksum 0xFF minus the 8-bit sum of bytes from offset 3 to this byte
(between length and checksum).
Local AT Command Response - 0x88
Discovery). Refer to individual AT command
API frame
