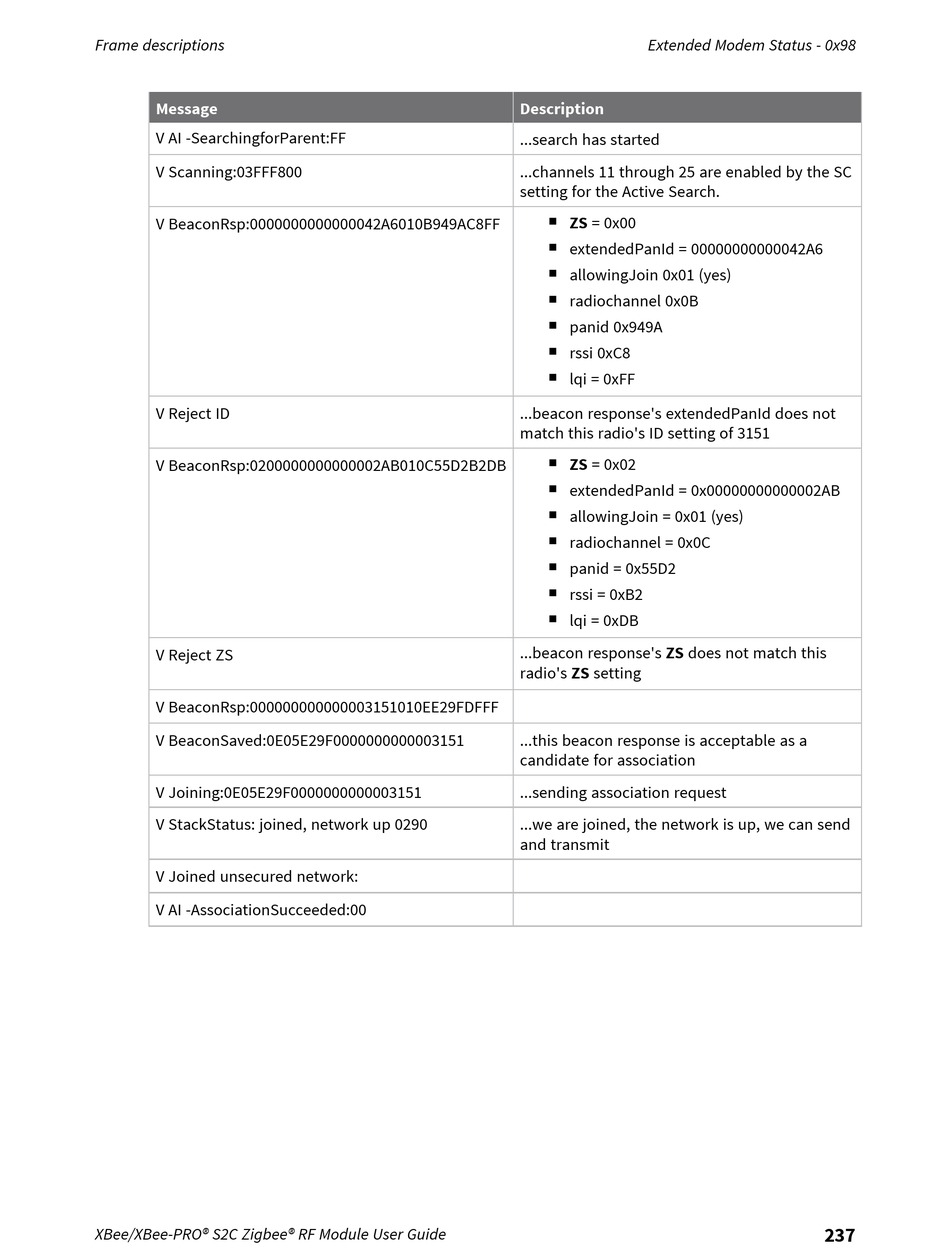

Frame descriptions
Message
V AI -SearchingforParent:FF
V Scanning:03FFF800
V BeaconRsp:0000000000000042A6010B949AC8FF
V Reject ID
V BeaconRsp:0200000000000002AB010C55D2B2DB
V Reject ZS
V BeaconRsp:000000000000003151010EE29FDFFF
V BeaconSaved:0E05E29F0000000000003151
V Joining:0E05E29F0000000000003151
V StackStatus: joined, network up 0290
V Joined unsecured network:
V AI -AssociationSucceeded:00
XBee/XBee-PRO® S2C Zigbee® RF Module User Guide
Extended Modem Status - 0x98
Description
...search has started
...channels 11 through 25 are enabled by the SC
setting for the Active Search.
ZS = 0x00
n
extendedPanId = 00000000000042A6
n
allowingJoin 0x01 (yes)
n
radiochannel 0x0B
n
panid 0x949A
n
rssi 0xC8
n
lqi = 0xFF
n
...beacon response's extendedPanId does not
match this radio's ID setting of 3151
ZS = 0x02
n
extendedPanId = 0x00000000000002AB
n
allowingJoin = 0x01 (yes)
n
radiochannel = 0x0C
n
panid = 0x55D2
n
rssi = 0xB2
n
lqi = 0xDB
n
...beacon response's ZS does not match this
radio's ZS setting
...this beacon response is acceptable as a
candidate for association
...sending association request
...we are joined, the network is up, we can send
and transmit
