Connecting Cables on the RMX 1500

To connect the cables:
• For the RTM-IP 1500 module:
— Connect the Media cable to LAN 2 port.
— Connect the Network cables to the MNG (Signaling) port &
MNGB (Management Network) port.
— (Optional) Connect the Shelf Management cable to the Shelf port.
• For the RTM ISDN 1500 module:
— Connect the E1/T1 cables to their PRI (1-4) ports.
Power Cable

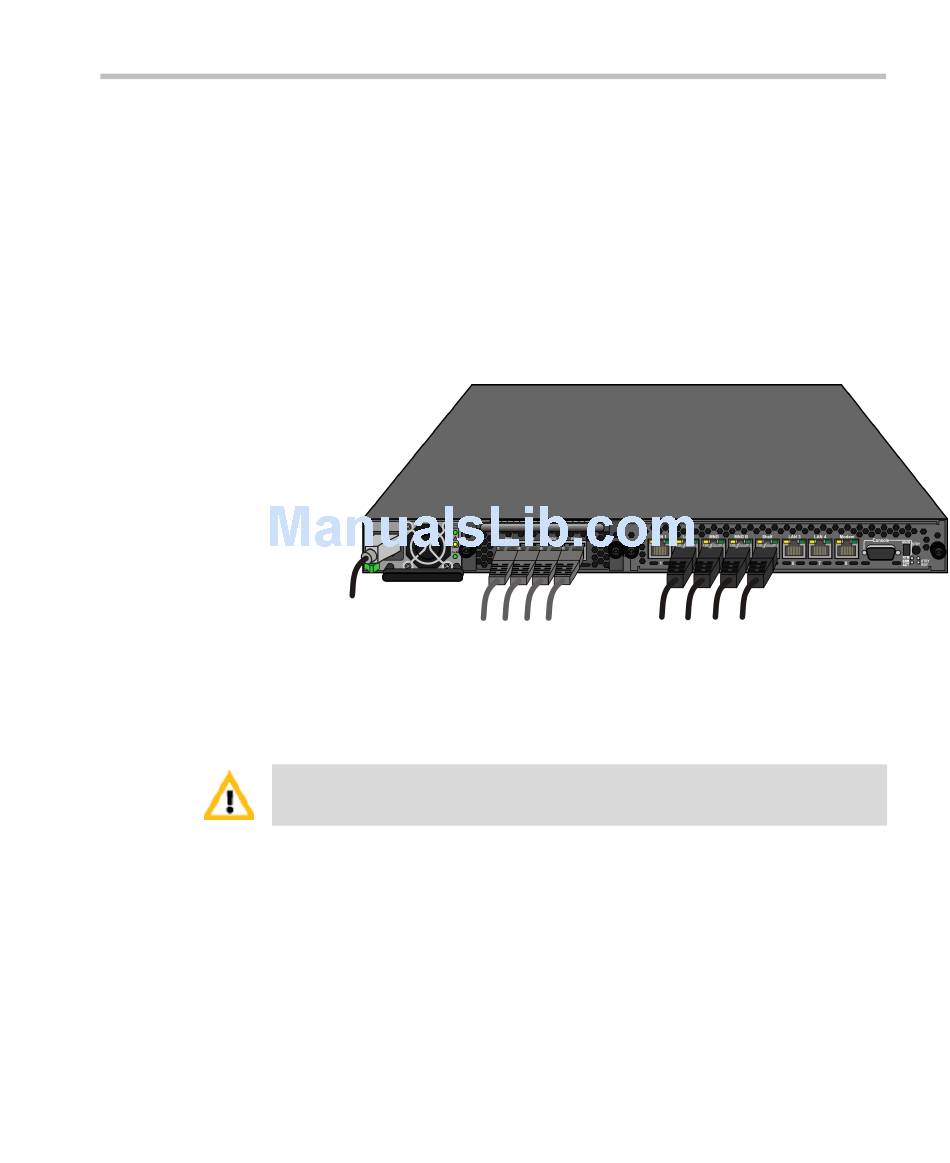

Figure 2-1 RMX 4000 Rear Panel View with AC Power and Communication
Cables
The LAN 1, LAN3, LAN4 and Modem ports are not be used and the plastic caps
covering those ports should not be removed.
Polycom RMX 1500/2000/4000 Getting Started Guide
E1/T1 PRI LAN 2; media, MNG; signaling,
Connection(s)
MNGB; management & Shelf
