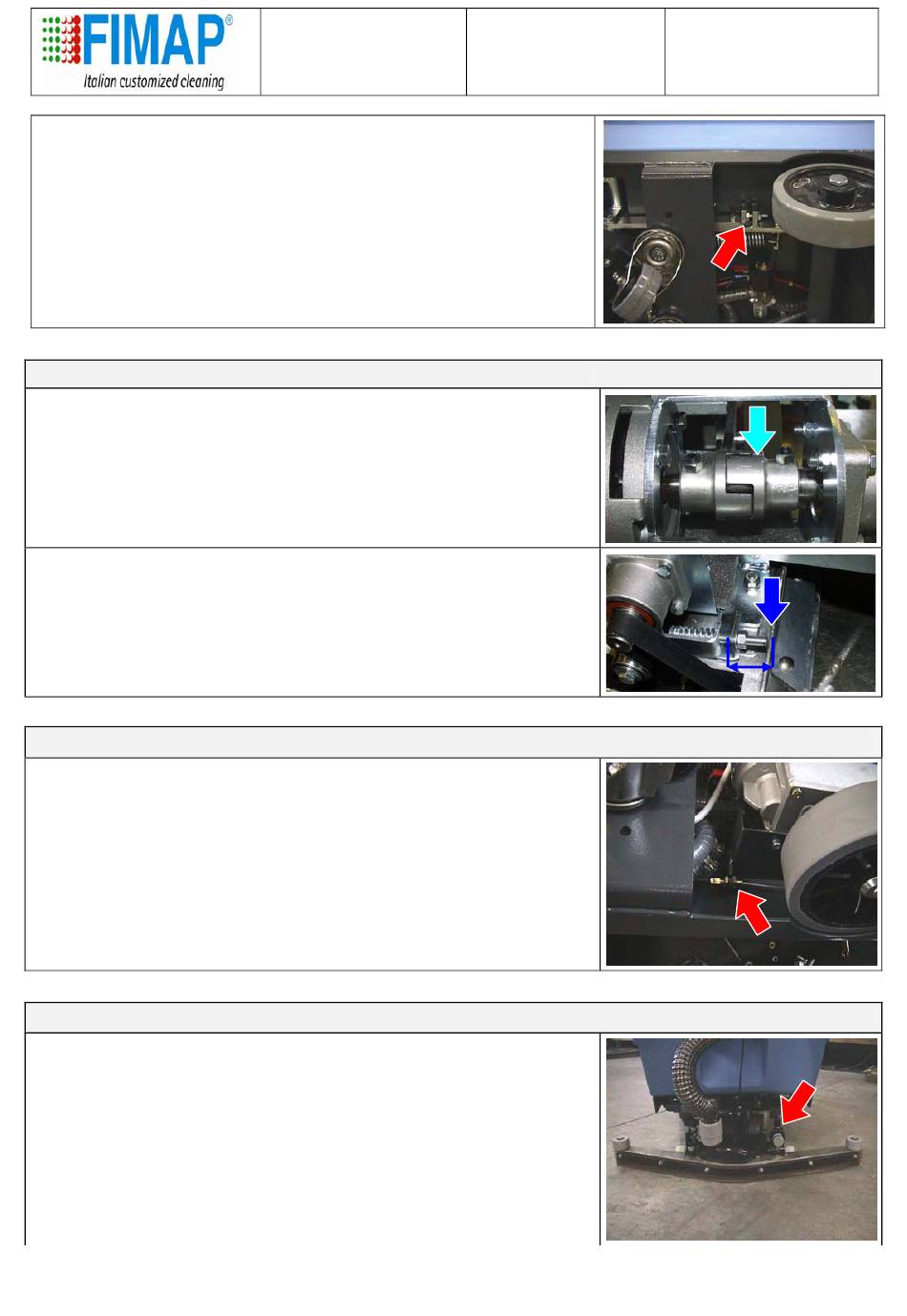

To help the disassembly of the cylindrical brushes, unscrew the
screw until the lever is at the first hole of the pressure adjustment.

Adjustment brushes base

1. Assemble the joint chain of transmission so that a distance of 2
mm. between two hubs is obtained and tyre toothed star is
between two hubs, works correctly, avoiding vibration and shift.
2. Fix dowels and adjuster nuts.
3. Check tension of transmission belt working of screw M8, so that
the thread goes out from support of about 28-29 mm.

Adjustment of the brake

1. Adjustment brake pads: check the braking uniformity, with the
brake inserted, trying to rotate the machine both right and left,
checking that the wheels remain blocked in the same way.
2. Adjust the range of the brake handle acting upon the two
adjusters of the brake cable, one placed under the frame and the
other one behind the electric panel.

Adjustment Squeegee

1. Adjust the inclination
the squeegee is in function, so that this has an even bending.
Block through the adjuster nut.
ADJUSTMENTS
AND
INSPECTIONS
register of the rear squeegee rubber when
