Compressor control and surveillance
3.1.10

User input regulator (Ext. input)

In addition to the above mentioned regulators the User input regulator can also be used. To do so, con-
nect a 4-20 mA sensor (pressure, temperature or other) to the UniSAB III input named User input 1 (Ex-

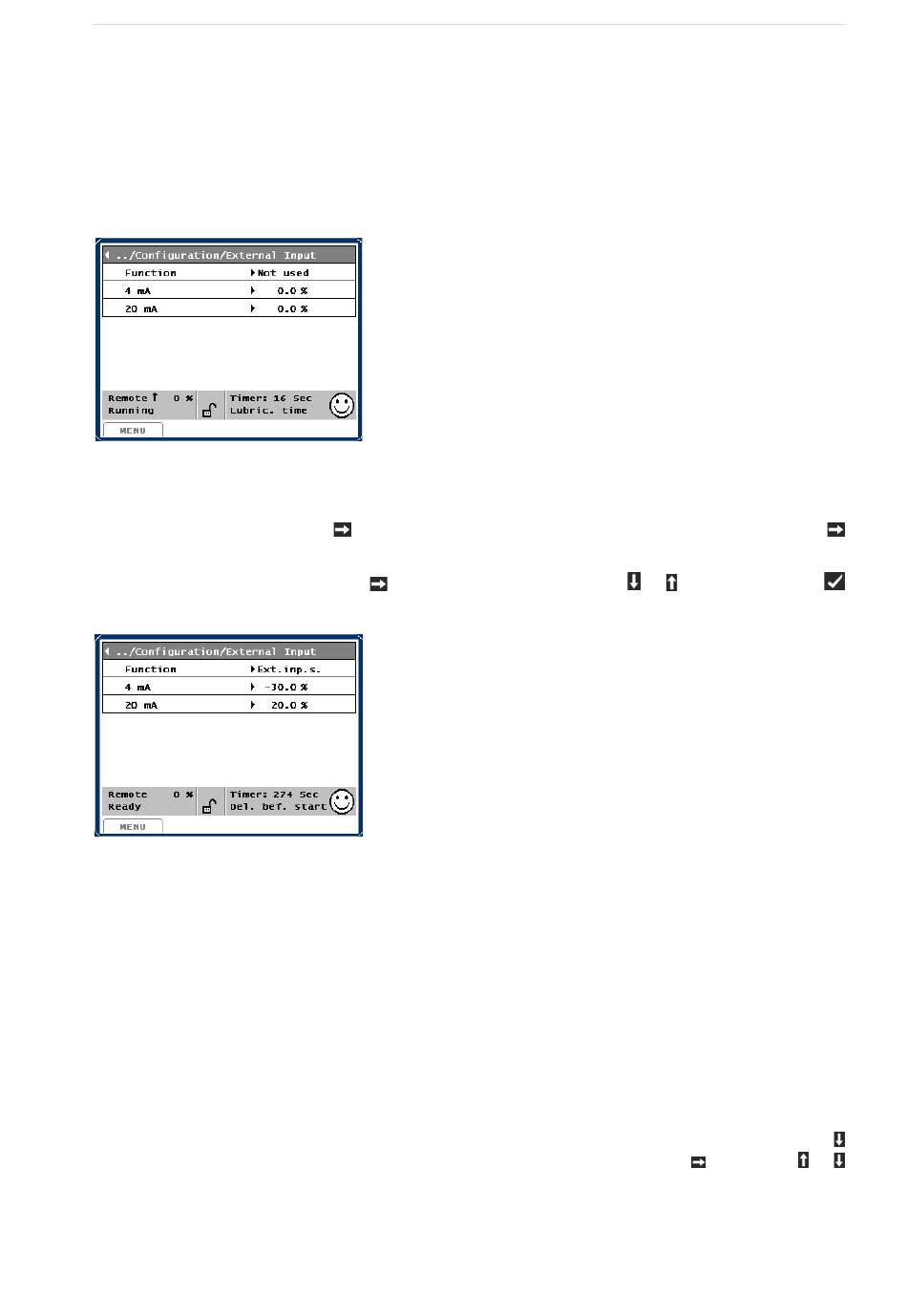

ternal set point). When selecting 4-20 mA input in the menu Setup/Configuration/External input, the
following picture will appear:
The signal must be scaled to fit the sensor measuring range. Ex.: A temperature sensor of -30°C to +20°
C is used.
Move the cursor to 4 mA, press and change the value to -30. Move the cursor to 20 mA, press
and change the value +20.
Move the cursor to second line, press and select Ext. input signal with or . Finish by pressing
. The picture will now look like this:
Each measuring signal can be scaled in accordance with the transducer measuring range.
In the menu Setup/Compr. Control, select one of the following in the Control on line:
Ext. cool
If selecting this function, the compressor will regulate the capacity upwards in case of increasing meas-
uring value.
Ext. heat
If selecting this function, the compressor will regulate the capacity upwards in case of decreasing meas-
uring value.
Now select picture Control values/User/User input 1/Control. Go to the bottom of the picture with
where the set values of the regulator are positioned. These can be set by pressing followed by or
.
