Calibration
As shown in Fig. 37 the capacity transmitter is fitted with a single calibration button surrounded by a
green and red LED. During normal operation the red LED is flashing rather slowly. The green LED is
switched on constantly when the transmitter is in 100% position whereas it flashes quickly when the
transmitter is in 0% position.
Calibration is carried out as follows:
1. Apply supply voltage minimum five minutes before calibration.
2. Move the slide to its minimum position and press the calibration button once. The red LED will
switch ON. After a while, the red LED will turn OFF indicating that it is ready for 100%
calibration.
3. Move the slide to its maximum position and press the calibration button again. The red LED will
start flashing quickly. After a while the red LED will flash normally and calibration is completed.
7.5.10

Adjusting long-stroke capacity rod for SAB 193-233-283 and SAB 355

Note: The transmitter cannot be calibrated. Software calibration in UniSAB III must be used.

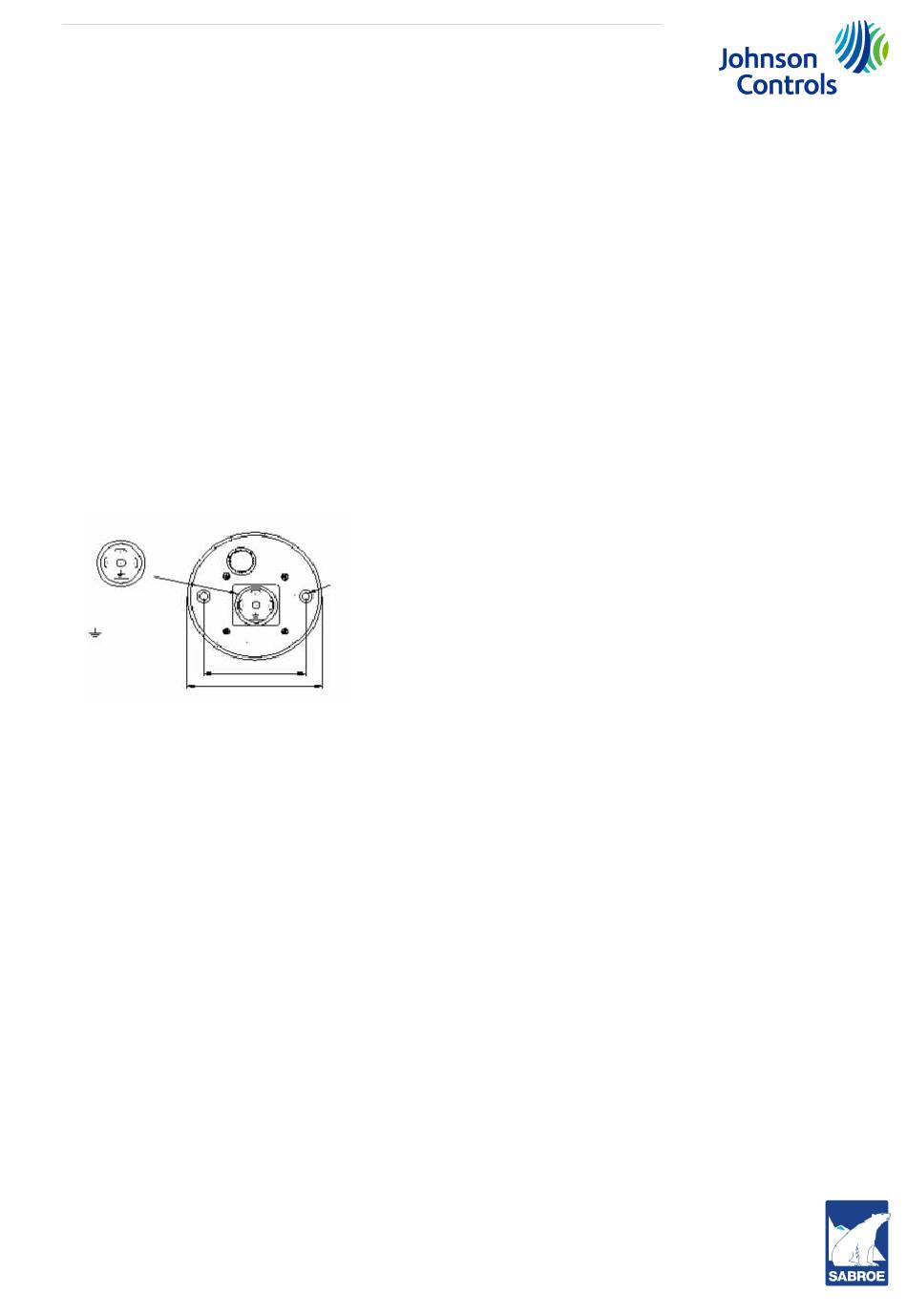

Terminal connection is shown in Fig. 38.
Plug connection
1=Supply +10-32V DC
2=Common 0V DC
3=Out 4-20 mA
GND
Fig. 38: Terminal connection
Note: As the compressors are equipped with auto Vi, follow the instruction in subsection 7.5.4 Capacity
slide adjustment, auto Vi and subsection 7.5.14
Engineering manual - UniSAB III 1.10.8
001930 en 2021.06
Dia.
7 mm
60 mm
74 mm
