Chapter 3

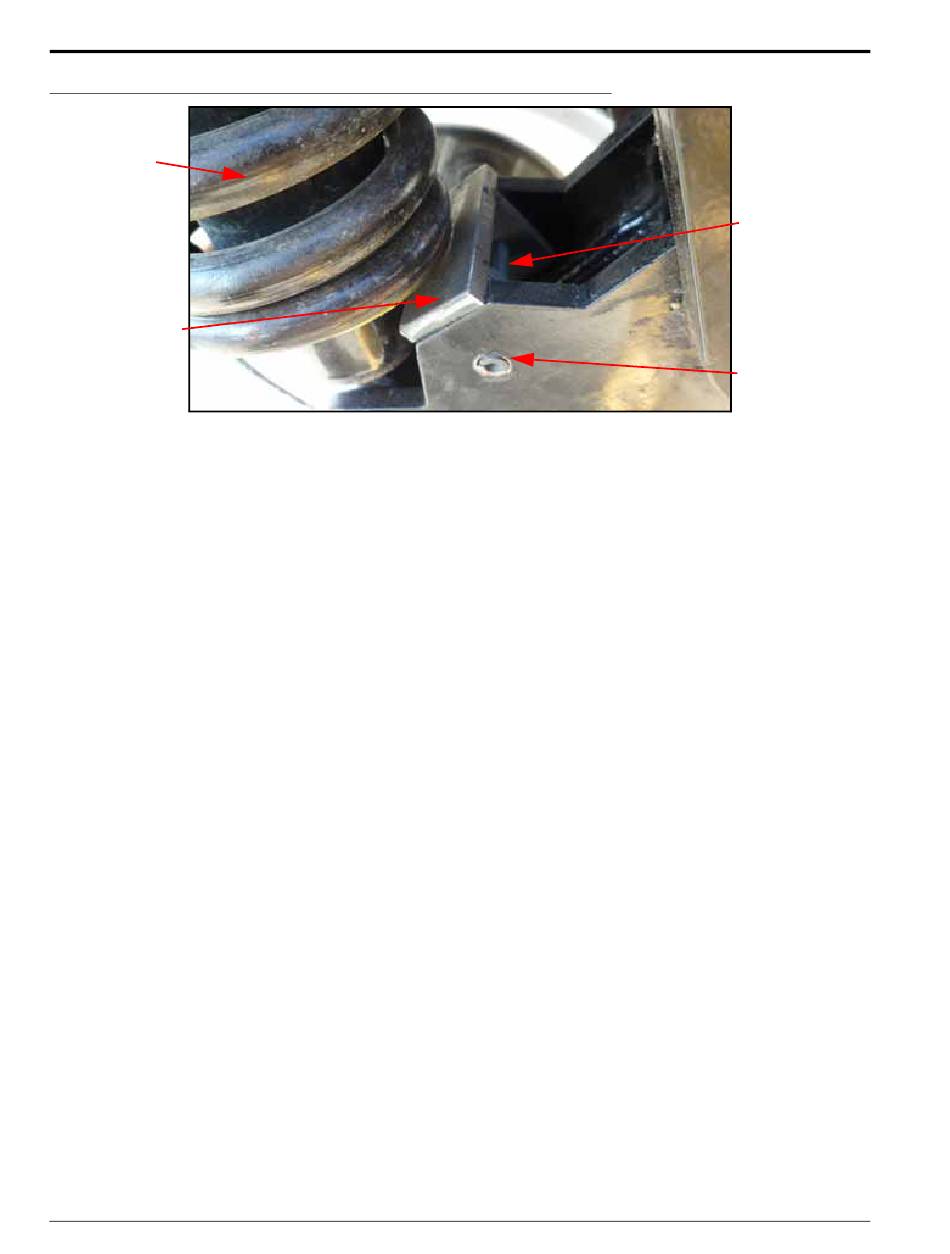

Retrofit Kit Installed
FIGURE 2.
Reinstalled
Shock and
Spring
Assembly
Axle Weldment
Bracket
(P/N 116-0159-750)
Insert the axle weldment bracket (P/N 116-0159-750) between the side walls of the axle.
2.
Clamp the bracket in place so that it is immoveable.
3.
Using a 1/4" drill bit, drill a hole through both sides of the axle and bracket.
4.
Insert the slotted spring pin (P/N 312-0000-398) through the holes drilled in the axle walls and the bracket,
5.
ensuring the pin is flush with the axle on both sides.
Note:
A protruding spring pin can interfere with movement and clearance during routine operation.
Reinstall the shock and spring assembly on the axle.
6.
Repeat the steps above to install the bracket on the left cushioned wheel axle.
7.
6 PowerGlide Plus Gauge Wheel Retrofit Kit Installation
Slotted Spring Pin
(P/N 312-0000-398)
Slotted Spring Pin
Inserted Through
Holes Drilled in
Axle Walls and
Bracket
