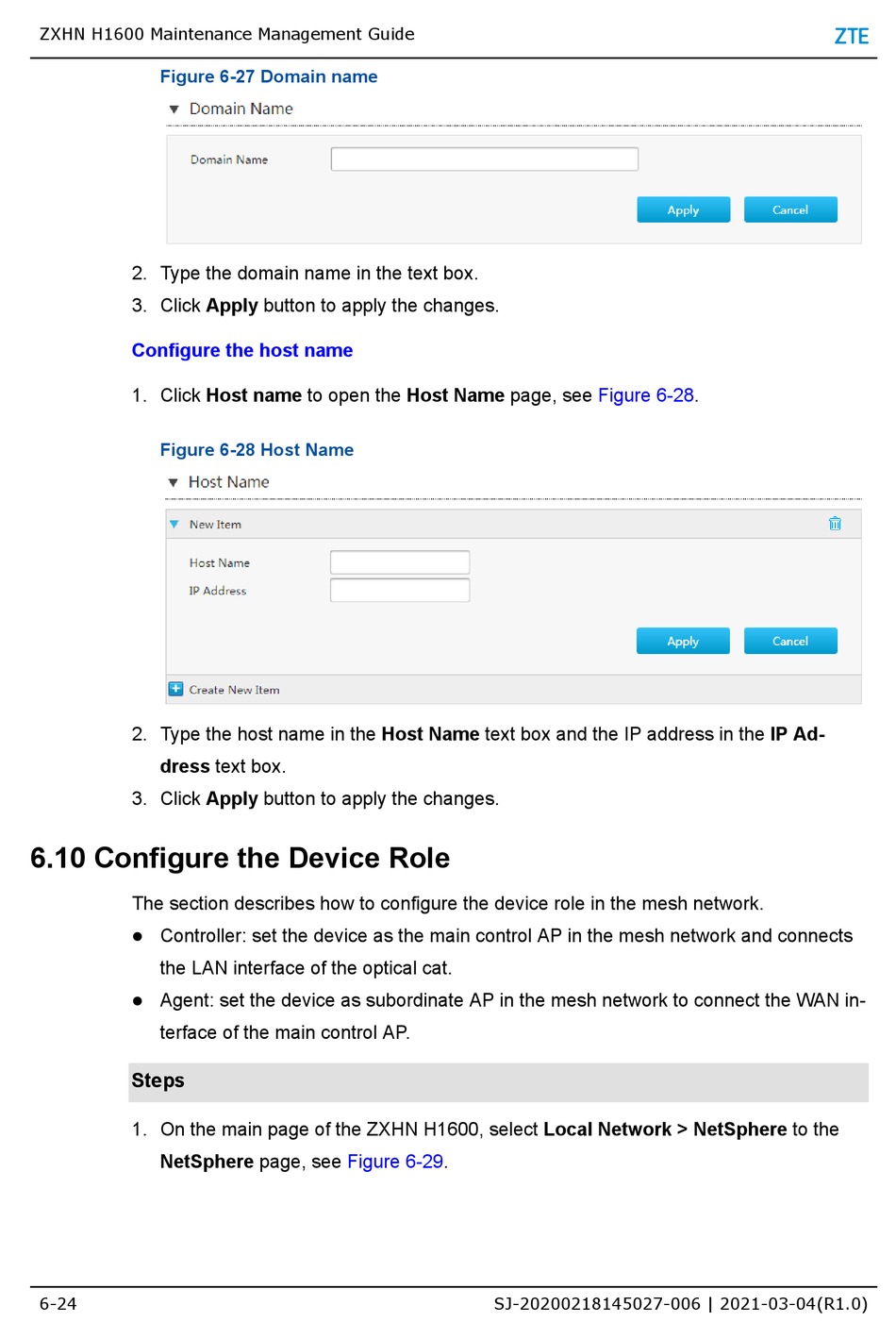

ZXHN H1600 Maintenance Management Guide
Figure 6-27 Domain name
2. Type the domain name in the text box.
3. Click Apply button to apply the changes.
Configure the host name
1. Click Host name to open the Host Name page, see
Figure 6-28 Host Name
2. Type the host name in the Host Name text box and the IP address in the IP Ad-
dress text box.
3. Click Apply button to apply the changes.

6.10 Configure the Device Role

The section describes how to configure the device role in the mesh network.
Controller: set the device as the main control AP in the mesh network and connects

the LAN interface of the optical cat.
Agent: set the device as subordinate AP in the mesh network to connect the WAN in-

terface of the main control AP.
Steps
1. On the main page of the ZXHN H1600, select Local Network > NetSphere to the
NetSphere page, see
6-24
Figure 6-29.
SJ-20200218145027-006 | 2021-03-04(R1.0)
Figure 6-28.
