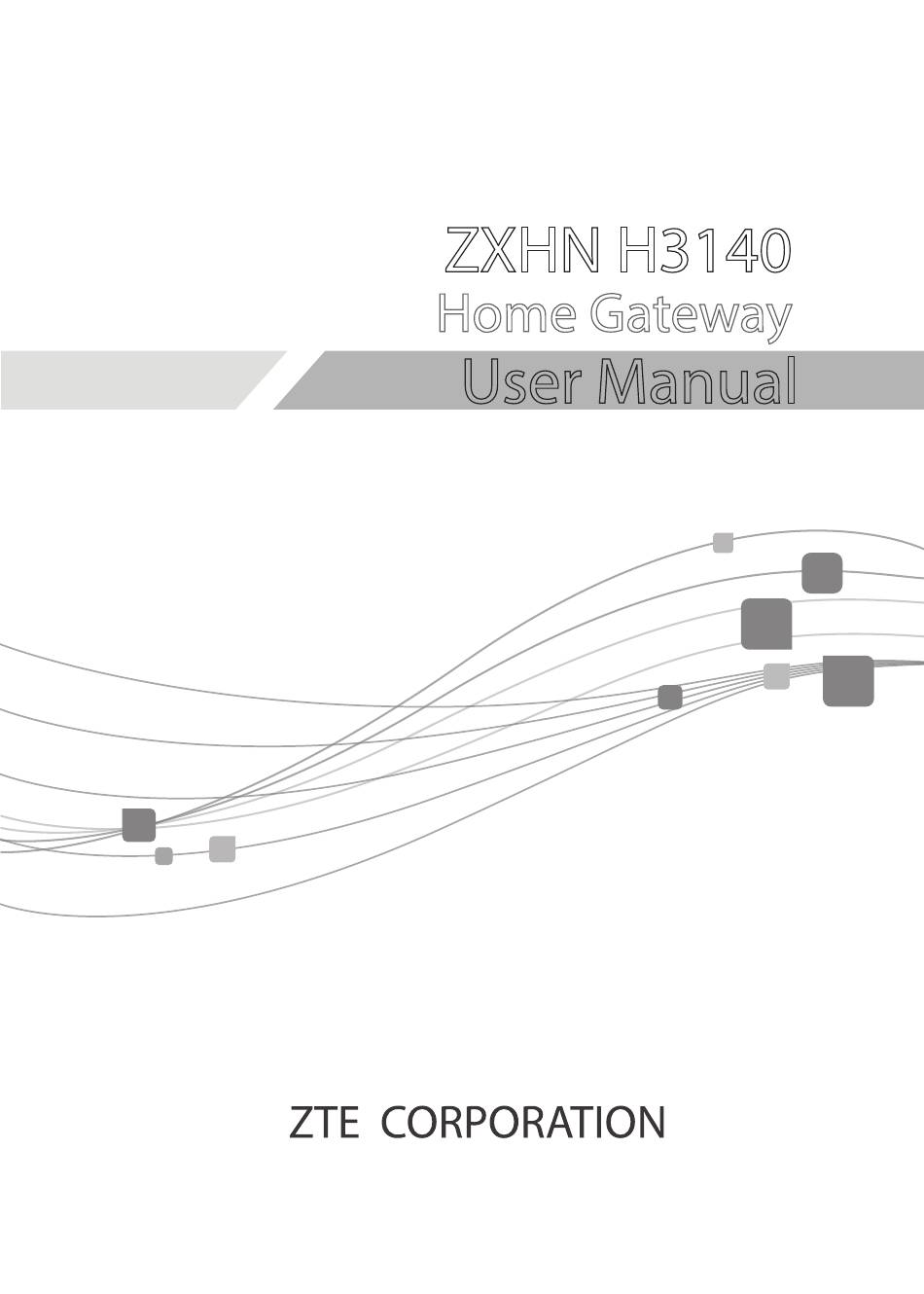

  • Page 1 ZXHN H3140 Home Gateway User Manual...
  • Page 2 All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their re- spective owners. This document is provided “as is”, and all express, implied, or statutory...

  • Page 3: Safety Precautions

    Safety Precautions Note Before using the device, read the following safety precautions. ZTE bears no liabil- ity to the consequences incurred by violation of the safety instructions. Usage Cautions Read all the safety cautions carefully before using the device. ...

  • Page 4: Environment Protection

    EU Declaration of Conformity Hereby, ZTE Corporation declares that the radio equipment type ZXHN H3140 is in compliance with Directive 2014/53/EU, The full text of the EU declaration of conformity is available at the following Internet address: http://support.zte.com.cn/support/cer/EU...

  • Page 5: Package Check

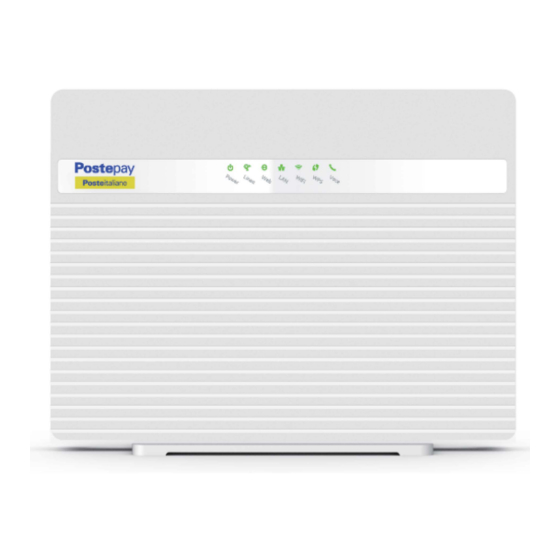

    Product Specifications The ZXHN H3140 product is a new generation home gateway device with 802.11 AX Wi-Fi (2.4GHz, 5GHz), which provides High Speed Internet, IPTV and Voice over IP services through the GE or Fiber(SFP) uplink. Those services are delivered by the gateway on your home network to the PCs, STBs, phones, gaming devices and so on via the integrated interfaces: Ethernet, Wi-Fi, phone ports.

  • Page 6: Hardware Description

    Wi-Fi 5 GHz band: EIRP < 30 dBm (5470 – 5725) MHz Note Please use the power adapter provided by the manufacturer. Hardware Description Front panel Figure 4-1 shows the front panel of the ZXHN H3140, and Figure 4-2 shows the indicators.
  • Page 7 Figure 4-1 The Front Panel Figure 4-2 The indicators Indicator Status Description Power Fixed green All services are available. At lease one wire- less radio is enabled. Fixed red One or more subscription services are cur- rently unavailable.
  • Page 8 Indicator Status Description Green flashing Operator is configuring the modem remote- Fixed orange Bootloader in progress. Flashing orange The device is upgraded remotely or locally. The device is powered off. Linea ( Fixed green Connected to the WAN device. LAN4/SFP) Not connected to the WAN device.
  • Page 9 The VoIP telephone service is active and there are activities in progress. The VoIP telephone service is not active or is not included in your subscription. Side panel Figure 4-3 shows the interfaces on the side panel of the ZXHN H3140.

  • Page 10: Interface Function

    Figure 4-3 The Side Panel Interface Function USB1 USB 3.0 host port, it is used to connect to the USB storage de- vice. Rear panel Figure 4-4 shows the interfaces and buttons on the rear panel of the ZXHN H3140.
  • Page 11 Figure 4-4 The Rear Panel Interface/Button Function WiFi WLAN switch , it is used to turn on / off the WLAN. WPS Push Button. Reset During power ON period, hold on this button for more than 5 seconds to reset the current settings to the fac- tory default setting, and then the system restarts auto- matically.

  • Page 12: Hardware Connection

    RJ-45 port, it is used to connect to the uplink Ethernet access network Fibra Optical port, it is used to connect to the uplink PON network. Hardware Connection Figure 5-1 shows the devices that are connected to interfaces of the ZXHN H3140.
  • Page 13 Figure 5-1 Cable Connection After the devices are connected to the ZXHN H3140 device, press the power but- ton. When the corresponding indicators on the front panel are On, you can enjoy various services provided by the service provider. The factors affecting the wireless network coverage range include the location of the product, distance between the product and a wireless terminal, number of obstacles, obstacle material and density, and interference source.

  • Page 14: Troubleshooting

    The product should be installed on the same floor as the applied area.  Do not put other objects on the product. Try to reduce the number of obsta-  cles between the product and a wireless terminal. Horizontally place the product in the middle of the applied area and do not ...
