Summary of Contents for Zte ZXHN H268N
-

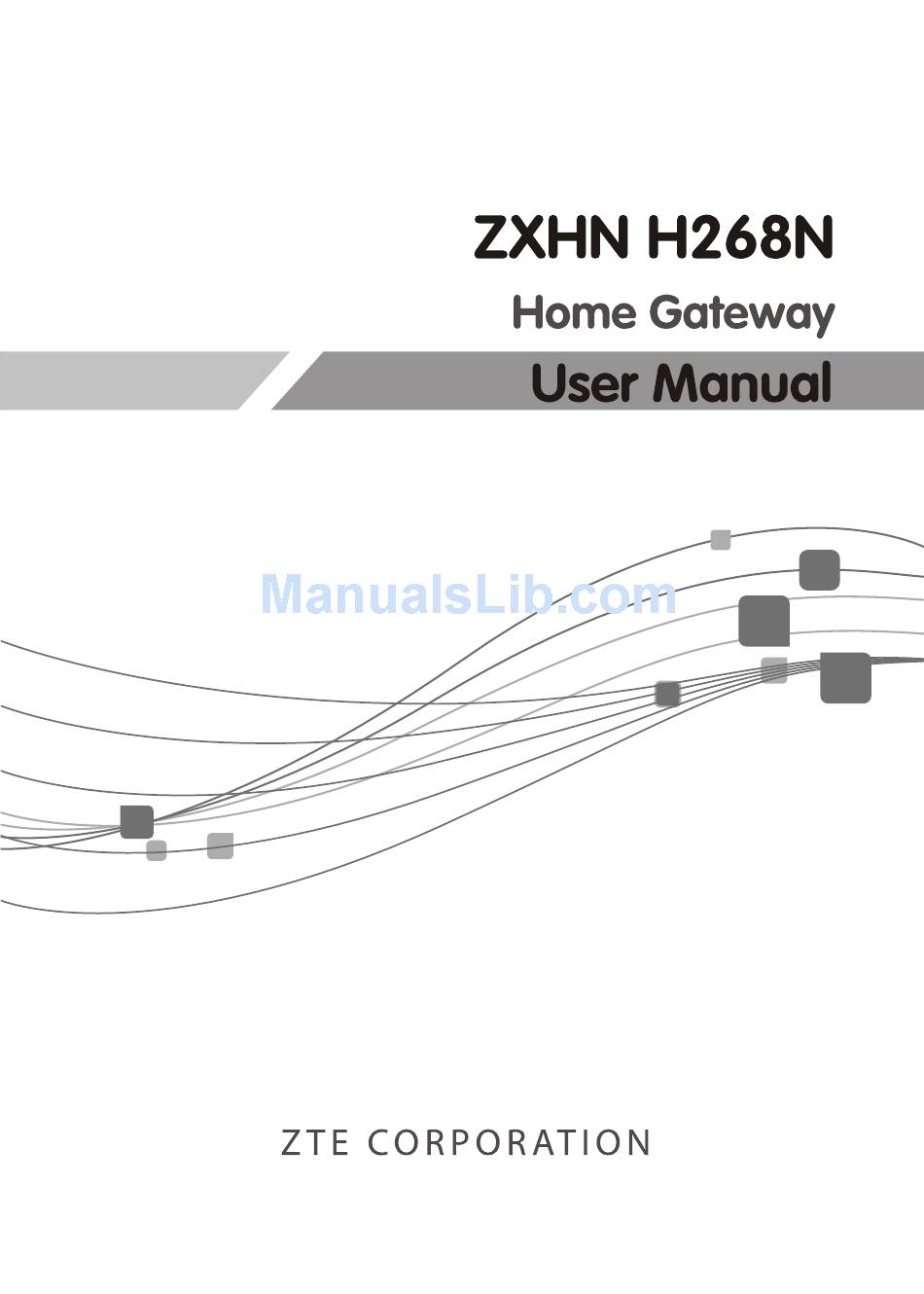

Page 2: User Manual
Additionally, the contents of this document are protected by contractual confidentiality obligations. All company, brand and product names are trade or service marks, or registered trade or service marks, of ZTE CORPORATION or of their respective owners. This document is provided “as is”, and all express, implied, or statutory... -
Page 3: Safety Cautions
Safety Guidance 1.1 Safety Check Before installing the VDSL2 equipment, check all the below listed items: 1. Electric safety Ensure no inflammable, conductive or moist objects and no ageing-cables around the equipment. Place all electrical appliances safely. 2. Equipment position �... - Page 4 Overview The ZXHN H268N is a VDSL2 access device, which supports multiple line transmission modes. In user side, it provides four 10/100Base-T Ethernet in- terfaces, and the wireless user access in compliance with the IEEE802.11b/g/n standard.
-
Page 5: Product Specifications
V1.1.x (x can be 0 – 9) , 0y (y can be 01 – 99) x and y represent different customization, and do not affect the product firmware and RF output power. 2.3 Package Check After unpacking the ZXHN H268N product, check that the following items are complete. -
Page 6: System Requirement
Keep the package and all the items in good condition if you want to replace the product. Note: Please use a power adapter that matches the ZXHN H268N package. 2.4 System Requirement Before installing the ZXHN H268N, please check the following items. -
Page 7: Hardware Description
WEB interface, the browser of Internet Explorer V 8.0 or later. Installation Preparation 3.1 Hardware Description Front panel Figure 3-1 shows the indicators on the front panel of the ZXHN H268N Figure 3-1 The Front Panel Table 3-1 describes the indicators on the front panel of the ZXHN H268N unit. - Page 8 Table 3-1 Descriptions of Indicators Description Status Indicator Solid green ZXHN H268N is powered on. Solid red Power ZXHN H268N self-check failed. ZXHN H268N is powered off. DSL synchronization is normal and the link Solid green connection is normal. Fast flashing...
- Page 9 Solid green USB device is connected and available. Flashing green Date is transmitting through USB port. USB port is disabled or USB device is not connected. Rear panel Figure 3-2 shows the buttons on the side panel of the ZXHN H268N.
- Page 10 Figure 3-2 The Side Panel Table 3-2 describes the buttons on the side panel of the ZXHN H268N. Table 3-2 The Side Panel Button Function On/Off Power switch, to power on or power off the device WLAN Protected Setup WLAN...
- Page 11 Figure 3-3 The Back Panel Table 3-3 describes the interfaces and buttons on the back panel of the ZXHN H268N. Table 3-3 The Back Panel Interface/Button Function Use the telephone line to connect the modem with the VDSL2 cable or splitter. RJ-11 port.
-
Page 12: Hardware Connection
Interface/Button Function During power on period, hold on this button for more than 5 seconds to reset the current settings Reset to the factory default setting, and then the system automatically restarts. Power Power supply port. It is connected to the power adapter. 3.2 Hardware Connection Figure 3-4 shows the devices that are connected to interfaces of the ZXHN H268N... - Page 13 When the corresponding indicators on the front panel are On, you can enjoy various services provided by the service provider. For a MODEM with the WiFi function, for example, a ZXHN H268N, its wireless network scope is affected by the number of walls, wall thickness, wall locations, wall materials, ceilings, and other objects.
-
Page 14: Troubleshooting
4. Make sure that the ZXHN H268N with the WiFi function keeps far away from the following devices: Keep at least two meters far away from electrical devices or components that generate RF noise. - Page 15 � Sometimes, the VDSL2 users cannot access to the Internet normally First check whether the ZXHN H268N is in the normal state (Check the in- dicators according to this user manual). If yes, the computer or application network may be faulty. This is unrelated with VDSL2. If the ZXHN H268N is abnormal, check the status of indicators one by one to remove the fault.
- Page 16 If the VDSL2 suddenly fails to be synchronized (link down) during applica- tion, usually the Link indicator on the ZXHN H268N will not be ON. It is suggested to check the following steps one by one: i.
