3.0 Wiring of the KIRK Wireless Server 500
3.1 Connections
Power connection.
6/6 modular plug for DC.
The connector for RS232 is
an 8/8 modular plug.
2
1.
Remove the PCB from the housing.
2.
Remove the "break out" at the bottom of the housing.
3.
Introduce the cable into the housing.
4.
Secure the cable by the attached Cable Bracket/screws.
5.

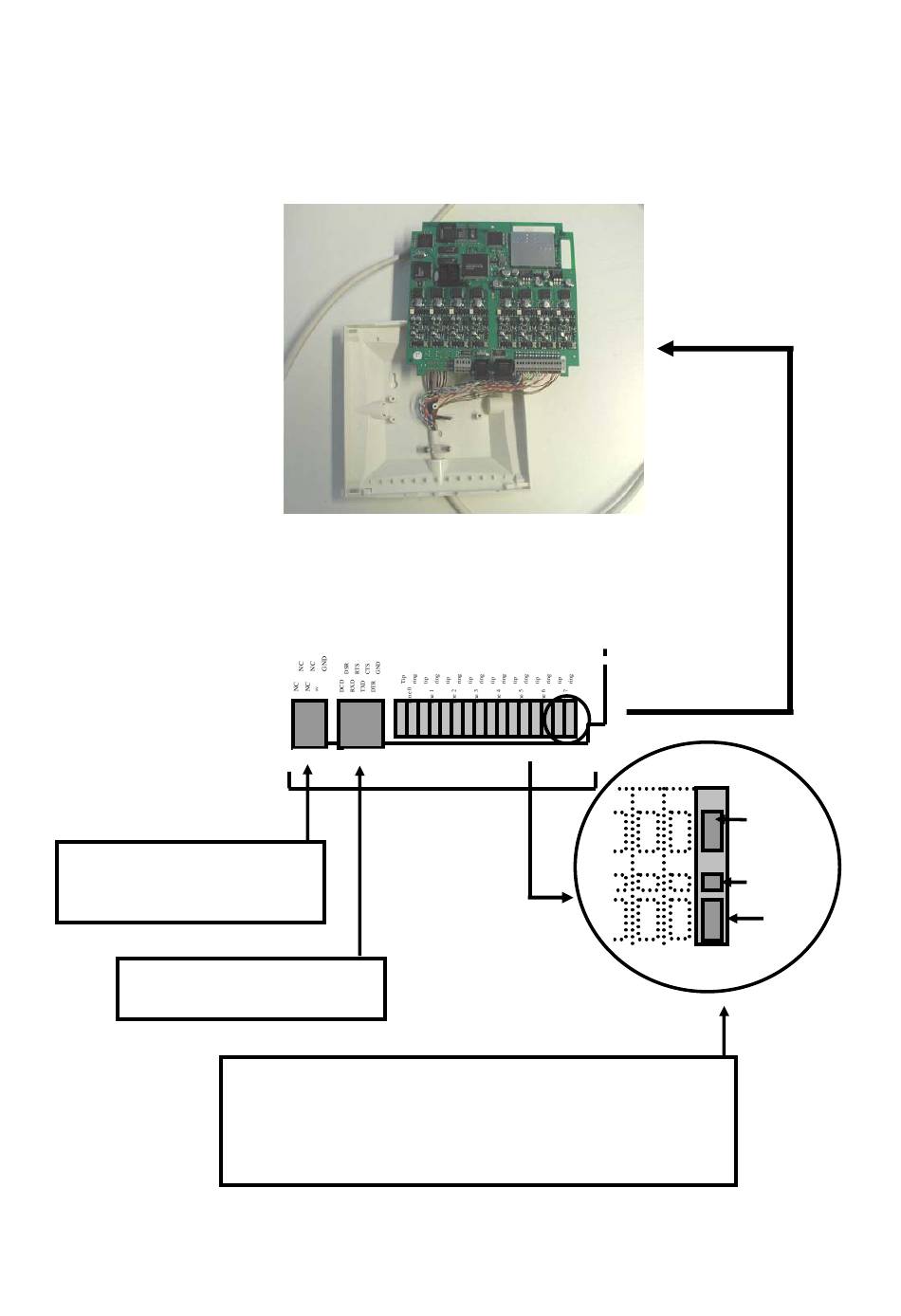

Connect the wires into connector (see diagram below).
DC RS232
a/b connectors
Release of the internal spring can be achieved by pushing a
2*0,5 mm or similar small screwdriver into hole 1 or 2
while pushing the stripped wire into hole 3.
KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8
1
5
4
3
16*A/
B
Hole 1
Hole 2
Hole 3
6
