12.0 RS232 Cable Layout
In the KIRK Wireless Server 500, the connector to the external is an 8-pole modular plug. In the
other end of the cable a 25-pin male DSUB is used for connecting to a typical modem, and a 9-pin
female DSUB when connecting to a PC or similar equipment. Please notice that the interface is
used for short distance connection to the PC or similar equipment only.

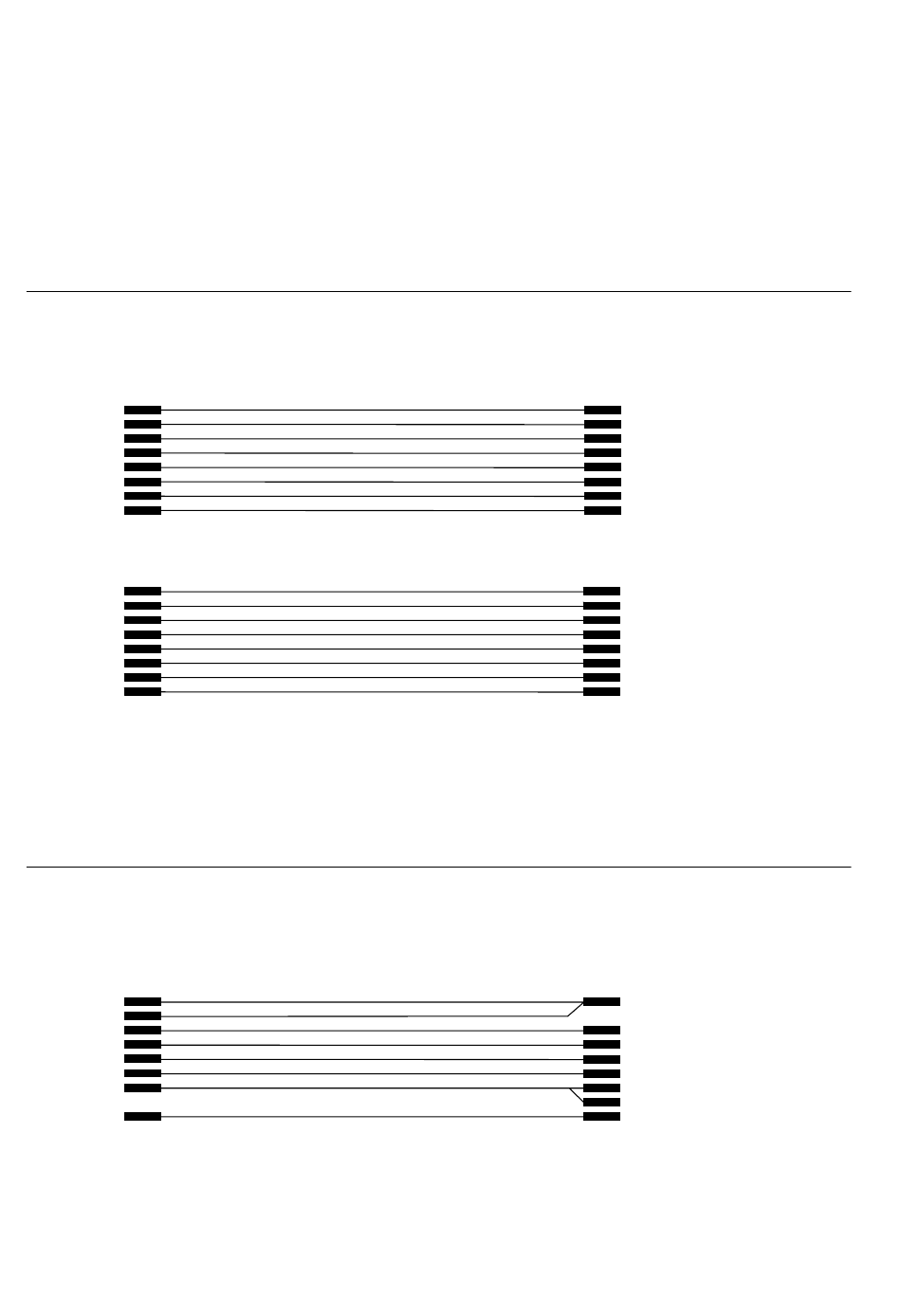

12.1 Modem Cable Connection Layout
For connection to/from Modem to the system
8-pin
modular
plug
DCD
1
DSR
2
RXD
3
RTS
4
TXD
5
CTS
6
DTR
7
GND
8
8-pin
modular
plug
DCD
1
DSR
2
RXD
3
RTS
4
TXD
5
CTS
6
DTR
7
GND
8
12.2 Null-Modem Connection Layout
For PC Programming – connection from the PC to the system
8-pin
modular
plug
DCD
1
DSR
2
RXD
3
RTS
4
TXD
5
CTS
6
DTR
7
GND
8
KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8
25-pin
male
DSUB
8
DCD
6
DSR
3
RXD
4
RTS
2
TXD
5
CTS
20
DTR
7
GND
9-pin
male
DSUB
1
DCD
6
DSR
2
RXD
7
RTS
3
TXD
8
CTS
4
DTR
5
GND
9-pin
femal
DSUB
4
DTR
3
TXD
8
CTS
2
RXD
7
RTS
1
DCD
6
DSR
5
GND
