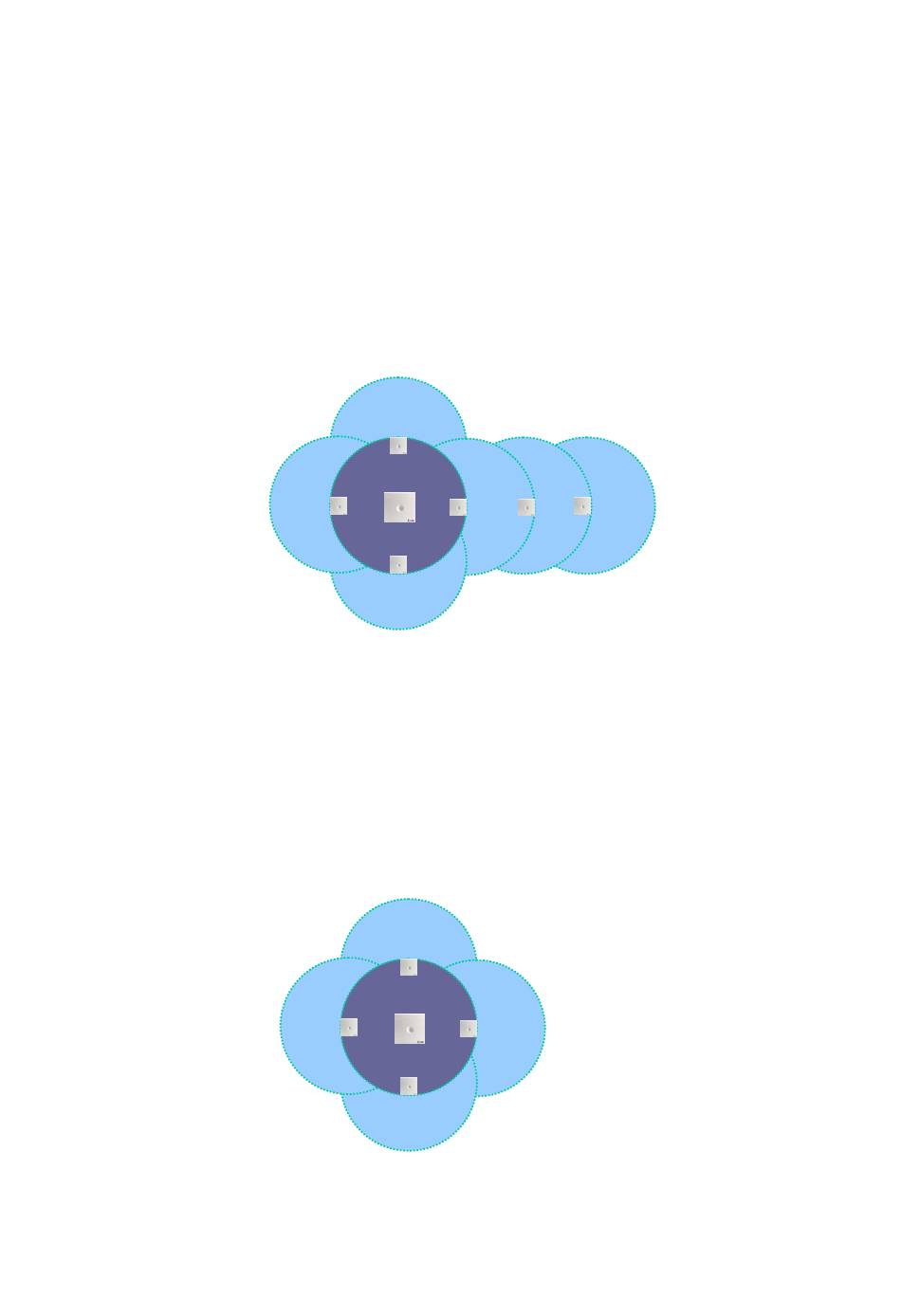

7.4 Examples of Different Ways of Installing KIRK Repeaters in solution based on a KIRK Wireless

Server 500

7.4.1 Example 1

The KIRK Wireless Server 500 has to be located in the area where most of the phone traffic will

take place. KIRK Repeaters in chain can be established.

Please note:

The KIRK Repeater chain can only handle 2 simultaneous calls if the 2 channel repeater is used

or 4 simultaneous calls if the 4 channel repeater is used.

The remaining KIRK Repeaters increase the coverage area.

7.4.2 Example 2

The KIRK Wireless Server 500 can be placed centrally with KIRK Repeaters enlarging the

coverage area around the outer edge of the premises.

Please note:

KIRK Repeaters have to overlap the coverage of the KIRK Wireless Server 500 for the system to

work properly.

Repeater

KIRK Wireless Server 500

Repeater

KIRK Wireless Server 500

Repeater

KIRK Wireless Server 500 with CLIP – User Guide - 14096500-HD, Ed.8

Repeater
