Mounting The Engine; Parts Required - Seagull Models AT 6 TEXAN Assembly Manual

AT 6 - TEXAN.
Fuel pickup
tube.
Blow through one of the lines to ensure
the fuel lines have not become kinked in-
side the fuel tank compartment. Air should flow
through easily.

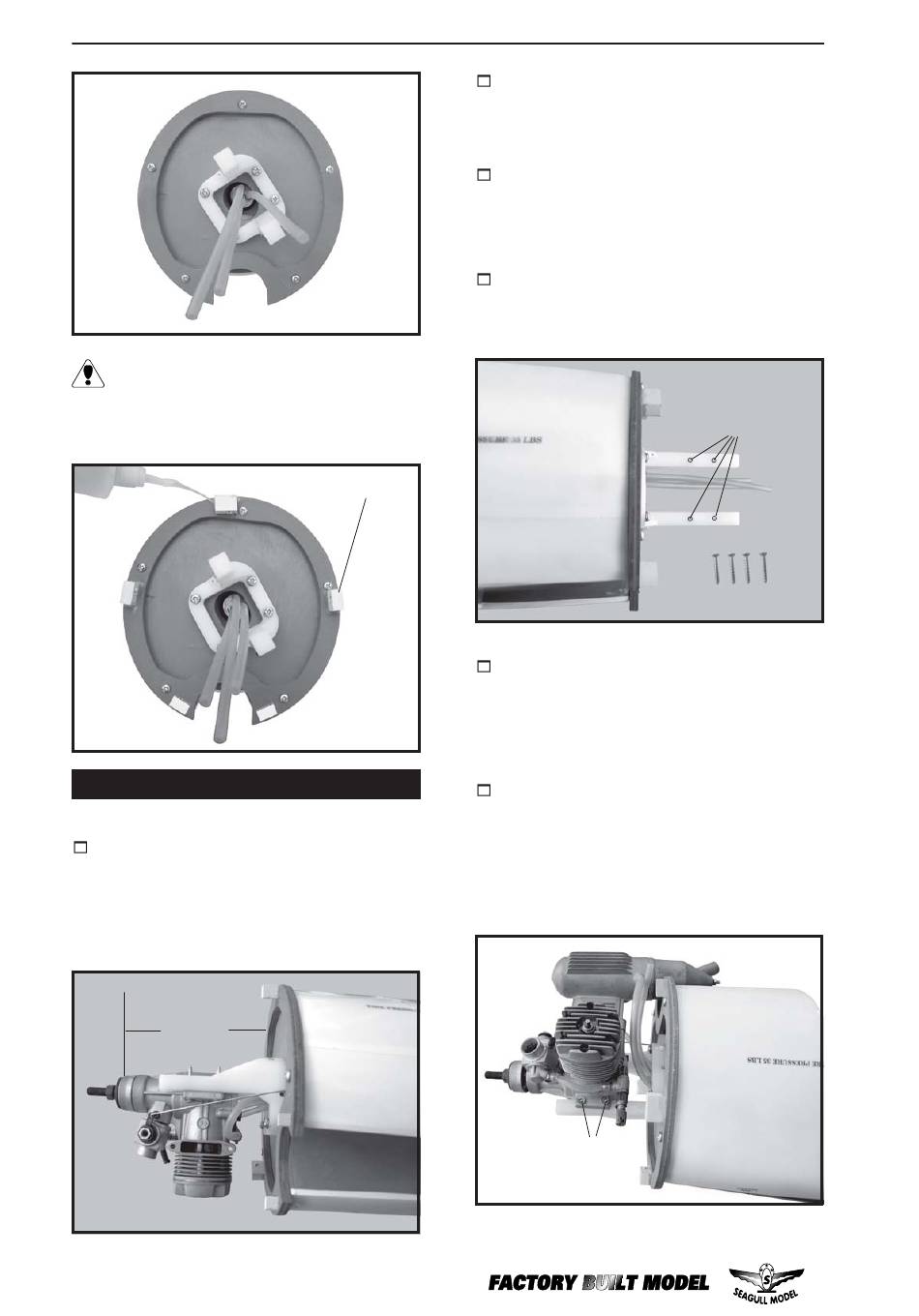

MOUNTING THE ENGINE.

PARTS REQUIRED

1) Install the pushrod housing through the
predrilled hole in the firewall and into the servo
compartment. The pushrod housing should
protrude 1/4" out past the front of the firewall.
Make a Z-Bend 1/4" from one end of the plain
wire pushrod.
110 mm.
16
Vent tube.
Fuel fill
tube.
Hard wood block.
Instruction Manual.
2) Place your engine onto the engine
mount. Adjust the engine is centered of the
edges of the engine case.
3) When you are satisfied with the align-
ment, mark the locations of the engine
mounting.
4) Remove the engine. Using an drill bit,
drill the mounting holes through the engine
mount at the four locations marked.
Bolt the engine to the engine mount
5)
using the four machine screws. Double
cheek that all the screws are tight before
proceeding.
6). Attach the Z-Bend in the pushrod wire
to the throttle arm on the carburetor. You will
need to remove the throttle arm from the car-
buretor to be able to attach the Z-bend. When
complete, reattach the throttle arm to the car-
buretor.
3 X 30 mm.
2.5mm.
3mm X 30mm.
