Installing The Engine Mount; Installing The Stopper Assembly - Seagull Models AT 6 TEXAN Assembly Manual

AT 6 - TEXAN.
Pen.
M2 lock nut.
Snap keepper.
Snap keepper.
14
Mark point.
Cut.
Instruction Manual.
Repeat the procedure for the other wing
half.

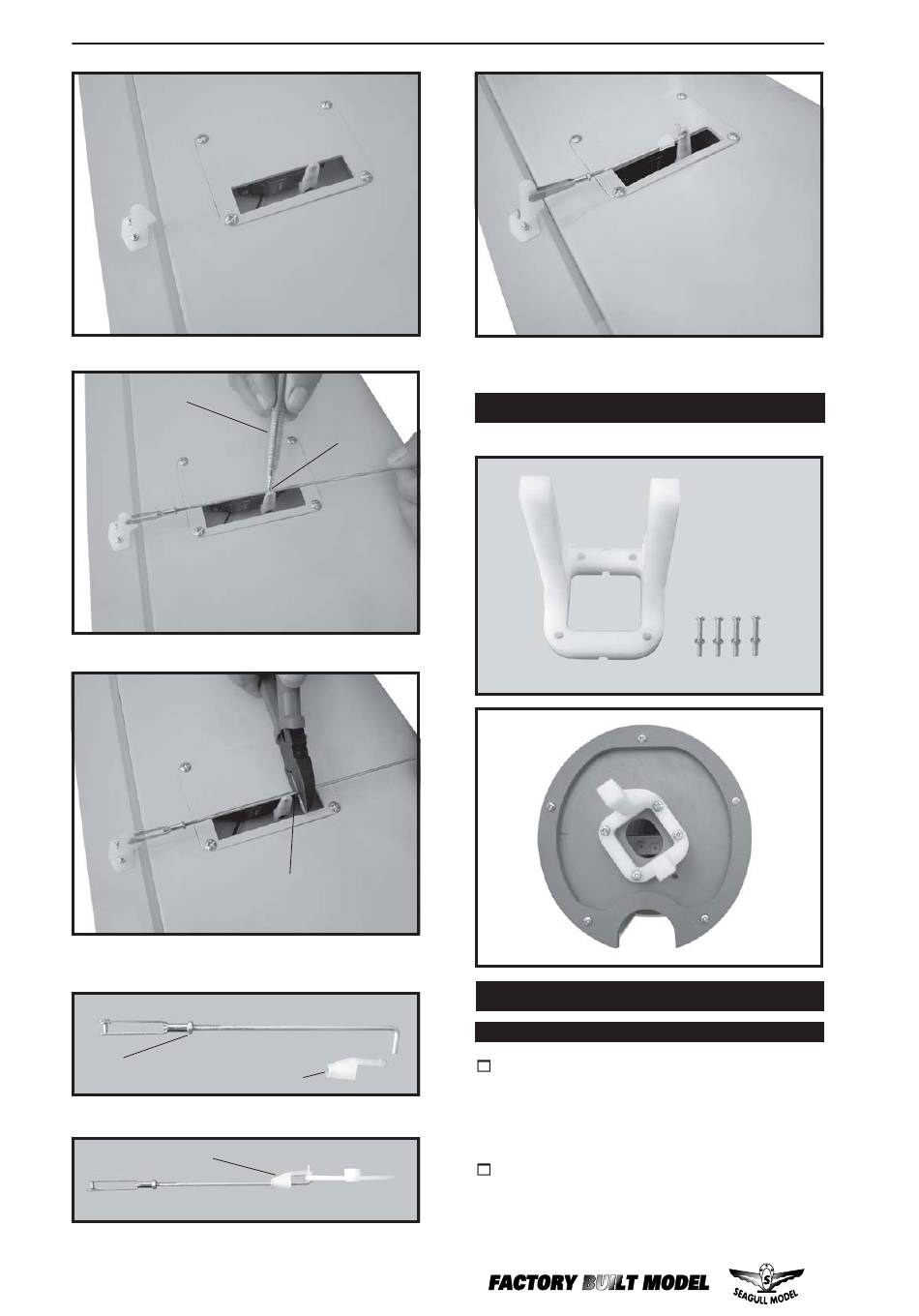

INSTALLING THE ENGINE MOUNT.

See pictures below:
FUEL TANK.

INSTALLING THE STOPPER ASSEMBLY.

1) Using a modeling knife, carefully cut off
the rear portion of one of the 3 nylon tubes
leaving 1/2" protruding from the rear of the
stopper. This will be the fuel pick up tube.
2) Using a modeling knife, cut one length of
silicon fuel line. Connect one end of the line to
the weighted fuel pickup and the other end to
the nylon pickup tube.
4mm X 20mm.
