Installing The Aileron Servos - Seagull Models AT 6 TEXAN Assembly Manual

AT 6 - TEXAN.

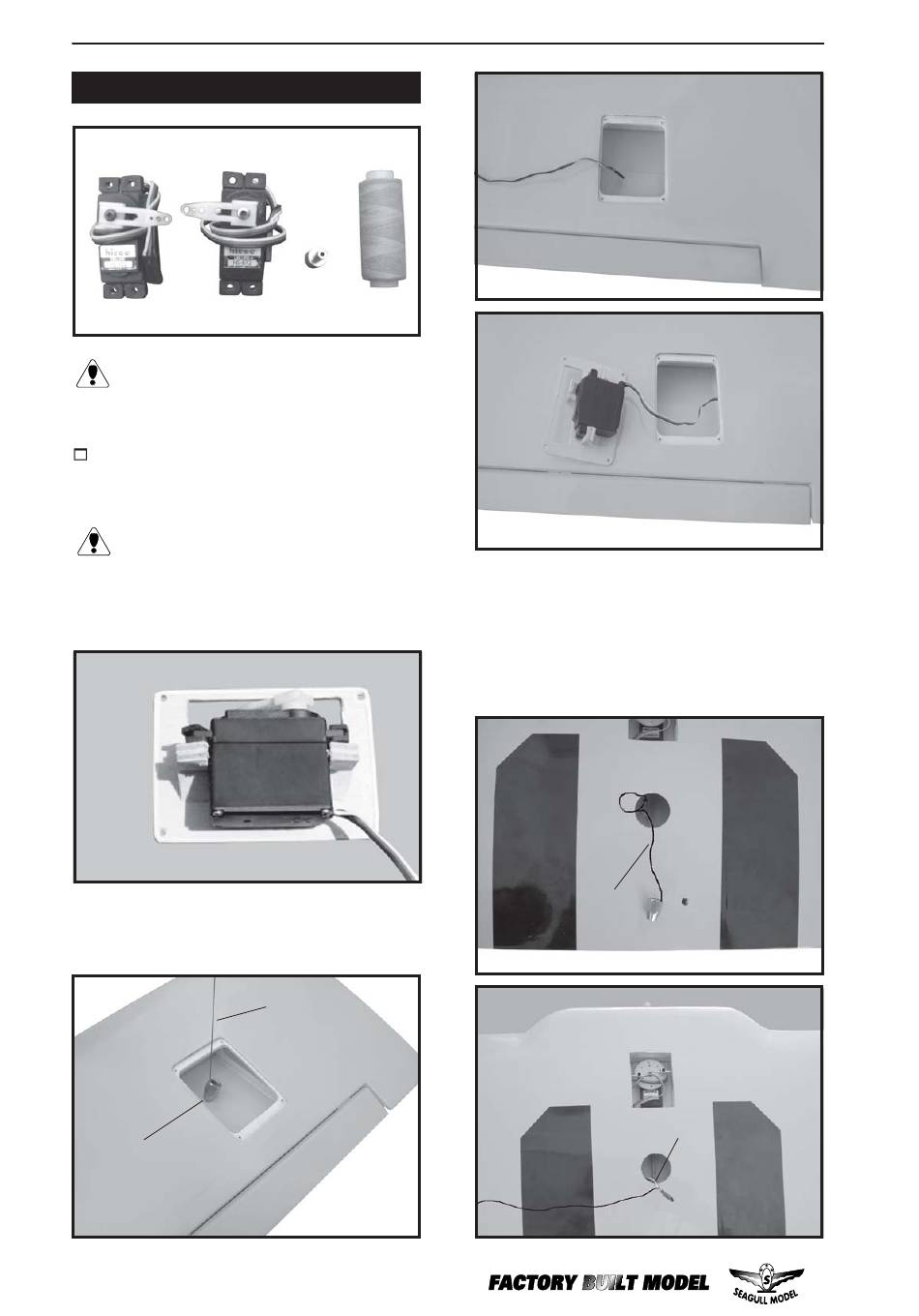

INSTALLING THE AILERON SERVOS.

Servo.
We recommended to use long ser-
vos arm for all servos without throttle
servo.
1) Install the rubber grommets and brass
collets onto the aileron servo. Test fit the servo
into the aileron servo mount.
Because the size of servos differ,
you may need to adjust the size of
the precut opening in the mount. The
notch in the sides of the mount allow the
servo lead to pass through.
Using a small weight (
) and thread, feed the string through
works well
the wing as indicated.
Small weight.
12
Thread.
Small weight.
Weighted fuel pick-up
Thread.
Wing bottom.
Instruction Manual.
Attach a servo lead to the aileron servo. Attach
the string to the servo lead and carefully thread
it though the wing. Once you have thread the
lead throught the wing, remove the string so it
can use for the other servo lead. Tape the servo
lead to the wing to prevent it from falling back
into the wing.
Thread.
Electric wire.
